Vivolink VLCAM230 video conferencing camera White 1920 x 1080 pixels 60 fps CMOS 25.4 / 2.8 mm (1 / 2.8")
VivoLink | Varenummer:
VLCAM230
Beskrivelse
Beskrivelse
PTZ Pro Conference USB3.0 Camera 12x optical zoom + 12x digital zoom, H.264/265 UVC Scalable Video Coding HD 1080p 60fps, 150×150×167.5 mm, white
The VLCAM230 camera offers perfect functions, superior performance in professional conference solution
Usage:
Live streaming from Meetings, Conference or Live events.
Compatible applications:
Skype™, Zoom,Microsoft® Teams / Lync, Google Hangouts™, FaceTime®, Cisco Webex®, GoToMeeting®, Adobe® Connect™, BlueJeans, Vidyo®, Fuze, WebRTC
The advanced Image Signal Processing algorithms ensure vivid images with clear brightness and impressive color reproduction.

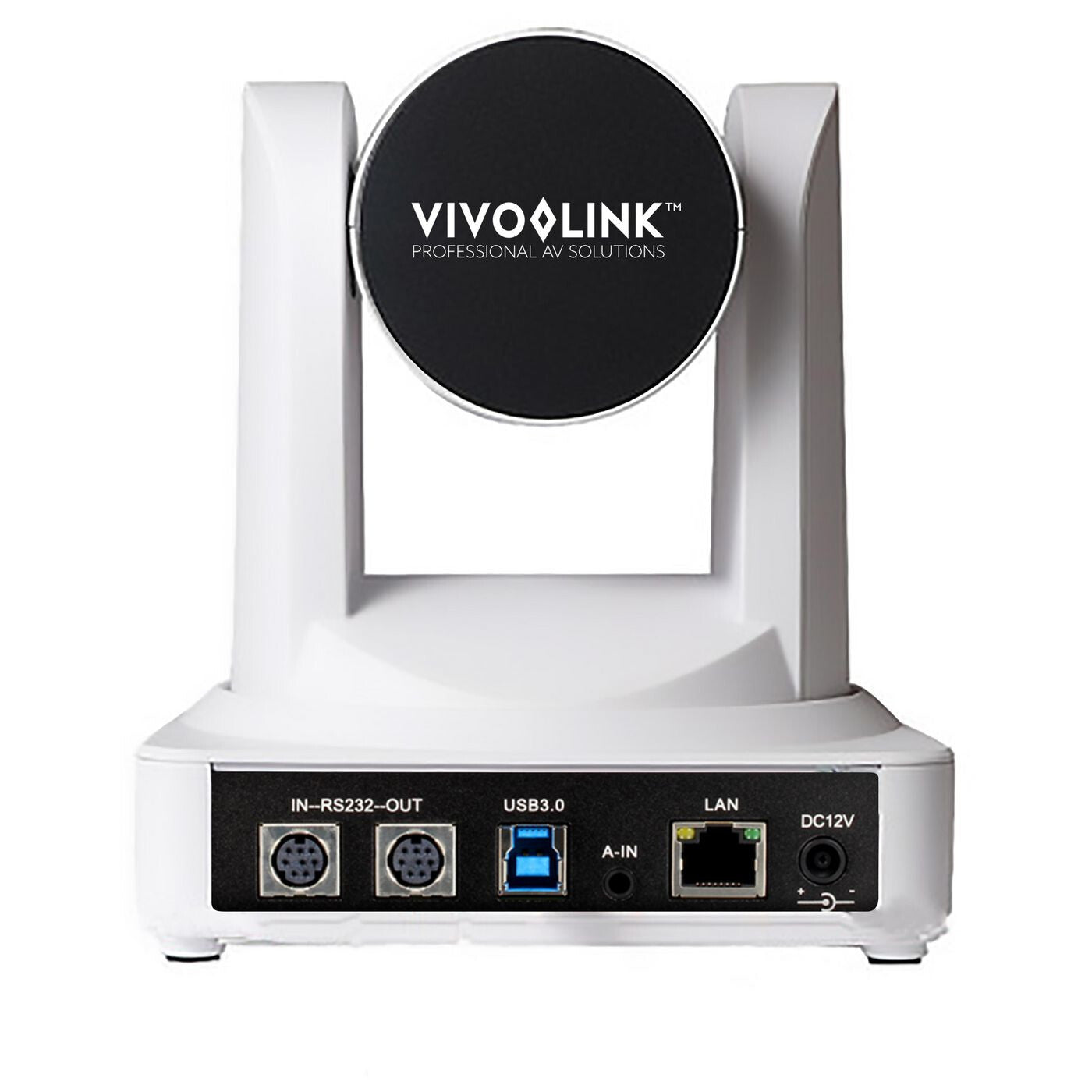

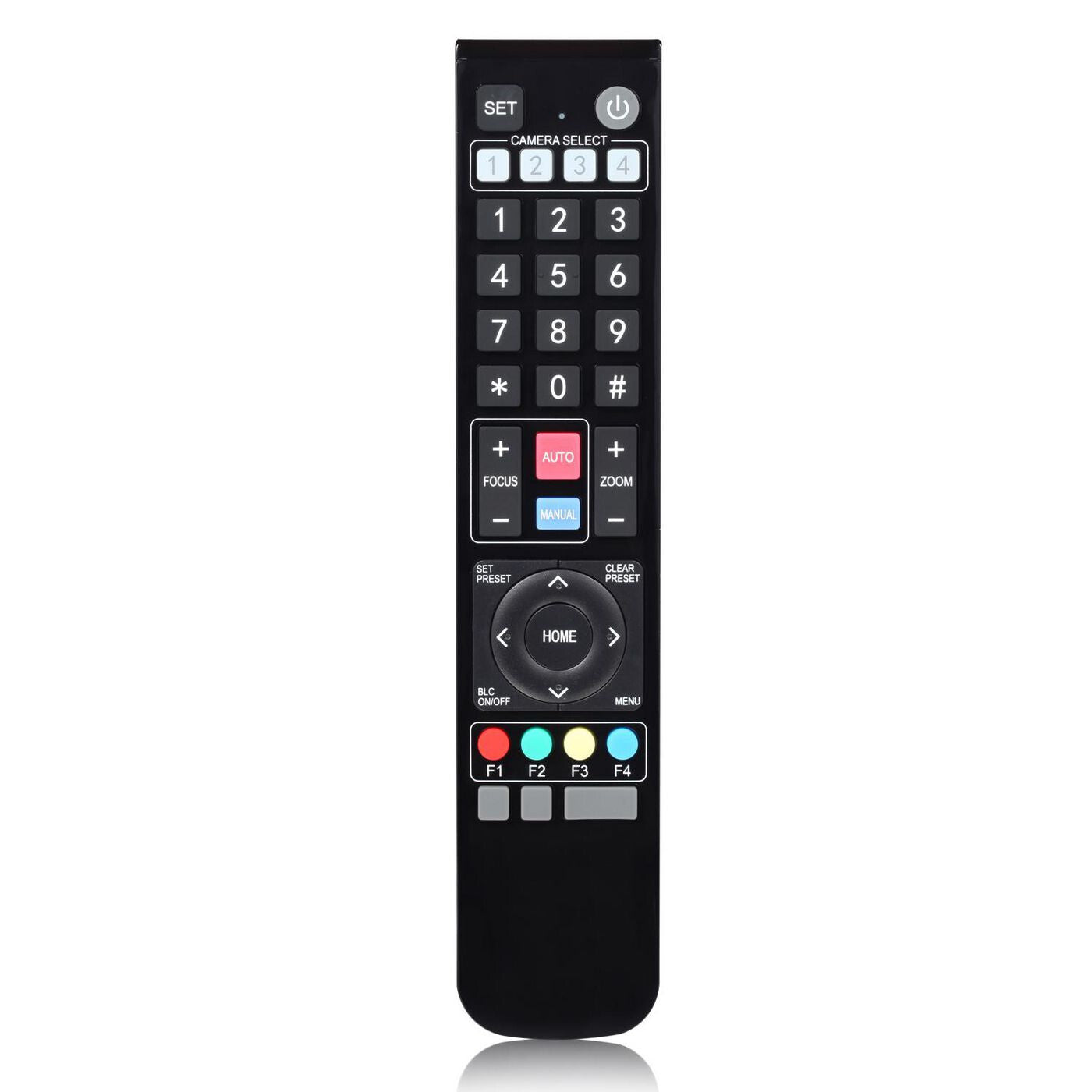

Camera can be controlled via LAN interface, RS232 or with supplied remote commander.
High zoom and smooth pan and tilt, makes this camera ideal component in professional environment.
Specifikationer
Specifikationer
| Camera | |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Effective sensor resolution | 2.07 MP |
| Optical zoom | 12x |
| Digital zoom | 12x |
| Field of view (tele) | 6.3° |
| Field of view (wide) | 72.5° |
| Minimum illumination | 0.5 lx |
| Signal-to-Noise Ratio (SNR) | 55 dB |
| Aperture range (F-F) | 1.8 - 2.4 |
| White balance | Auto |
| Auto focusing (AF) modes | Auto |
| Wide Dynamic Range (WDR) | Yes |
| Back Light Compensation (BLC) | Yes |
| Number of camera presets | 10 |
| PTZ control | Yes |
| 3D NR (Noise Reduction) | Yes |
| Video | |
|---|---|
| Maximum video resolution | 1920 x 1080 pixels |
| Maximum frame rate | 60 fps |
| HD type | Full HD |
| Design | |
|---|---|
| Product colour | White |
| Tilt angle range | 0 - 120° |
| Pan range | 0 - 340° |
| Ports & interfaces | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| VISCA input ports | 2 |
| Power | |
|---|---|
| AC input voltage | 110 - 230 V |
| Operating voltage | 12 V |
| Operating current | 4 A |
| Network | |
|---|---|
| Network streaming | Yes |
| Supported network protocols | ONVIF, RTSP, RTMP protocols and support RTMPpush mode,easy to link streaming media server(Wowza, FMS) |
| System requirements | |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Packaging content | |
|---|---|
| Power supply included | Yes |
| Remote control included | Yes |
| AC adapter included | Yes |
| Audio | |
|---|---|
| Automatic gain control | Yes |
| Audio codecs | 16000, 32000, 44100, 48000 sampling frequency andAAC, MP3, PCM audio coding |
| Performance | |
|---|---|
| Remote control function | Yes |
| Tripod mounting supported | Yes |
| Firmware upgradeable | Yes |
| Plug and Play | Yes |
| Weight & dimensions | |
|---|---|
| Width | 150 mm |
| Depth | 150 mm |
| Height | 167.5 mm |
| Weight | 1.3 kg |
| Packaging data | |
|---|---|
| Package width | 270 mm |
| Package depth | 250 mm |
| Package height | 225 mm |
| Package weight | 1.4 kg |
Download
Download
PDF download:
Vivolink VLCAM230 video conferencing camera White 1920 x 1080 pixel...
Nøgle specifikationer
Nøgle specifikationer
-
SKI nummer50070123-10000409
