Vivolink VLMC3770S signage display mount 177.8 cm (70") Black
Beskrivelse
Beskrivelse

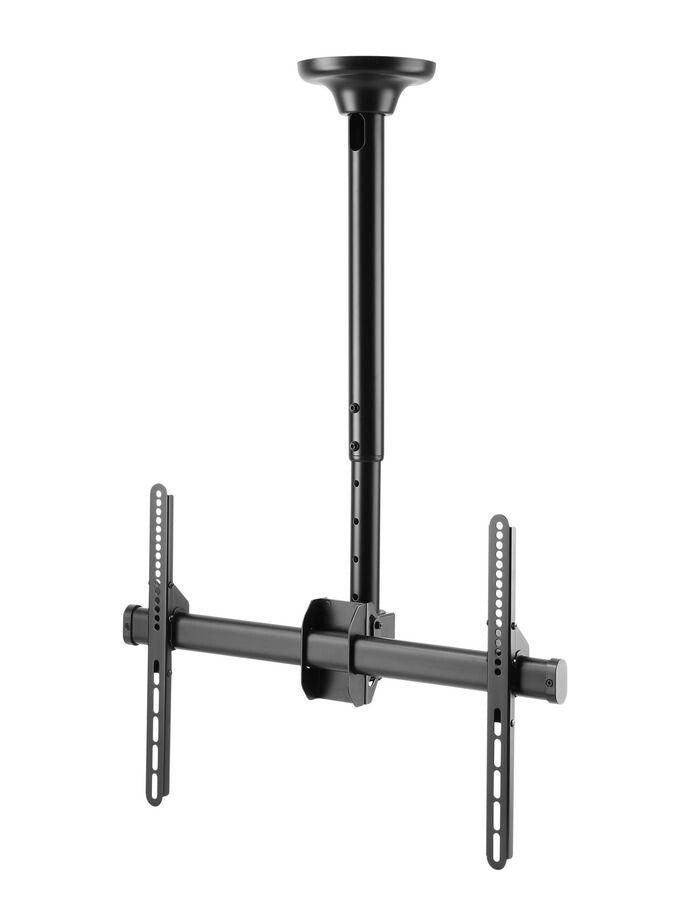

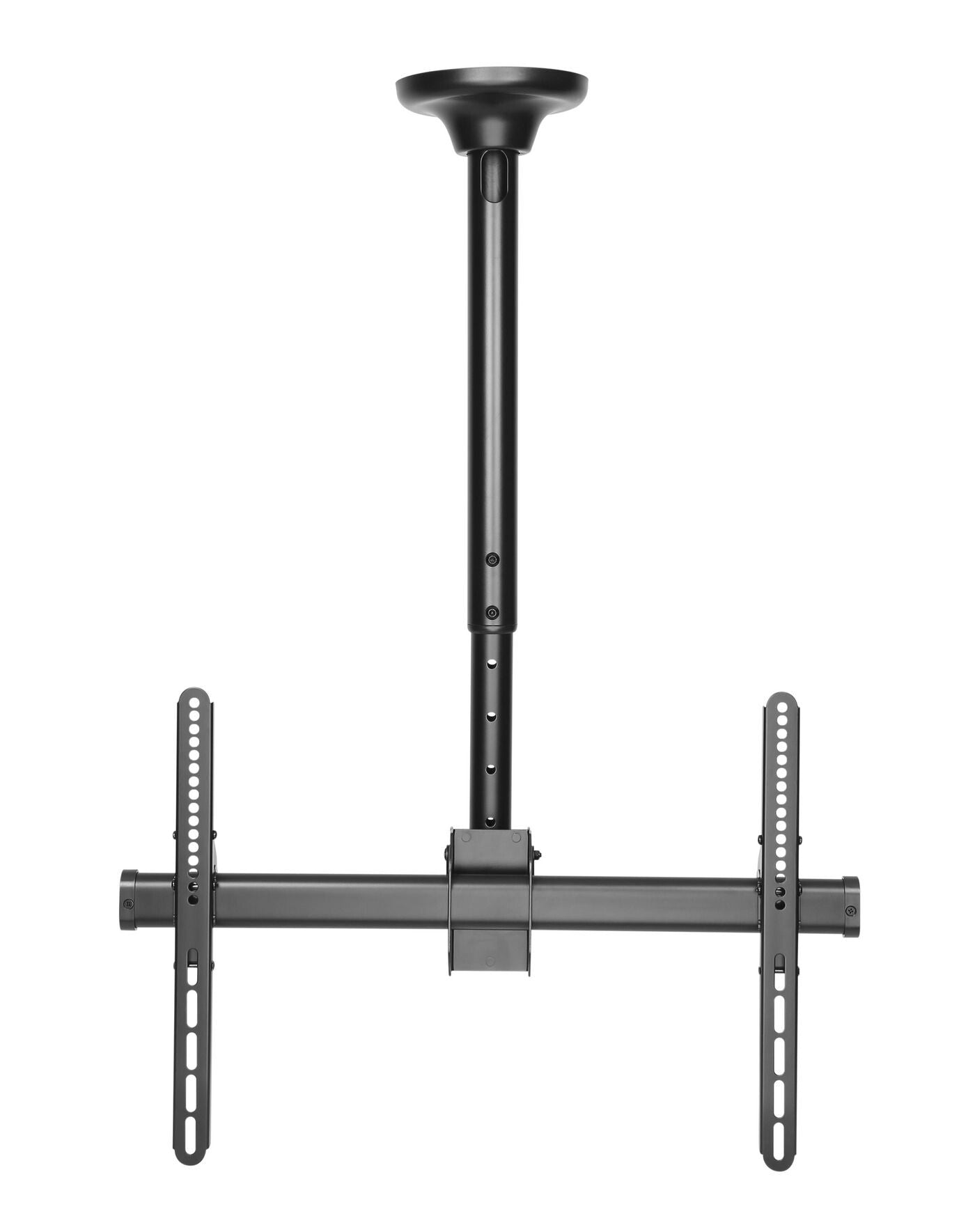

The Vivolink VLMC3770S is a full-motion ceiling mount designed to offer the ultimate in versatility and universal compatibility.
Telescopic height adjustable Ceiling Mount with the ability to turn 360 degrees and tilt 25 degrees.Tilting ceiling plate for flat and sloping ceiling application.

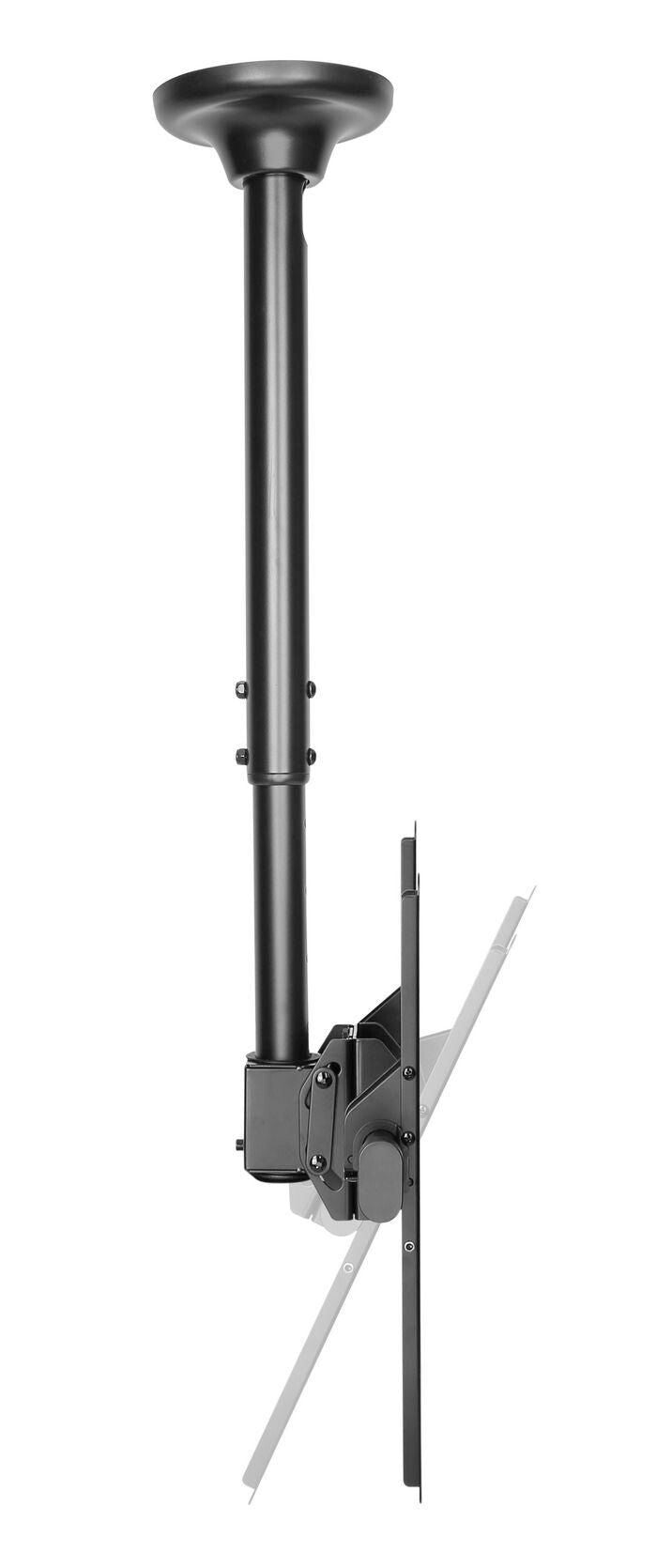

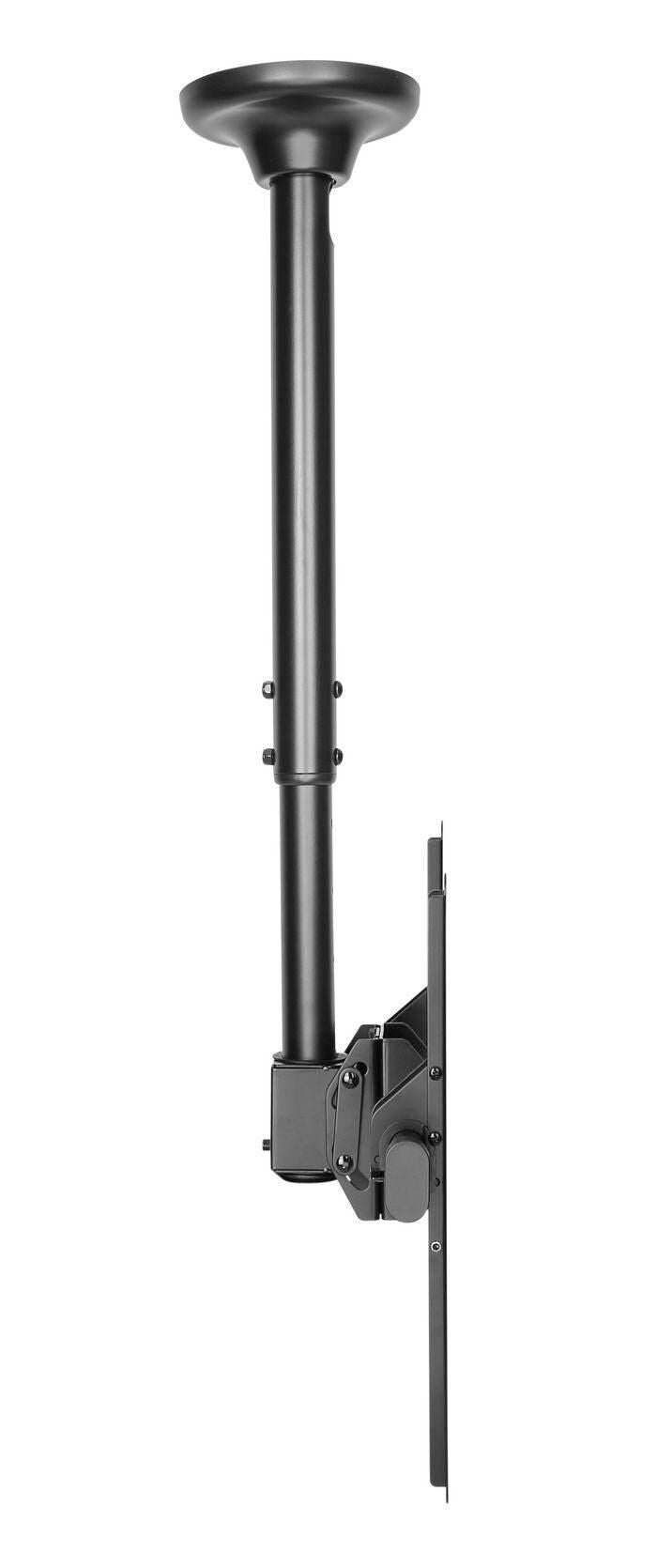

It allows displays to tilt down and swivel around the pole without tools. Includes VESA plate to accommodate virtually any 37" – 70" LCD TV or monitor up to 50kg/110lbs.
Fast assembly and very low installation time.

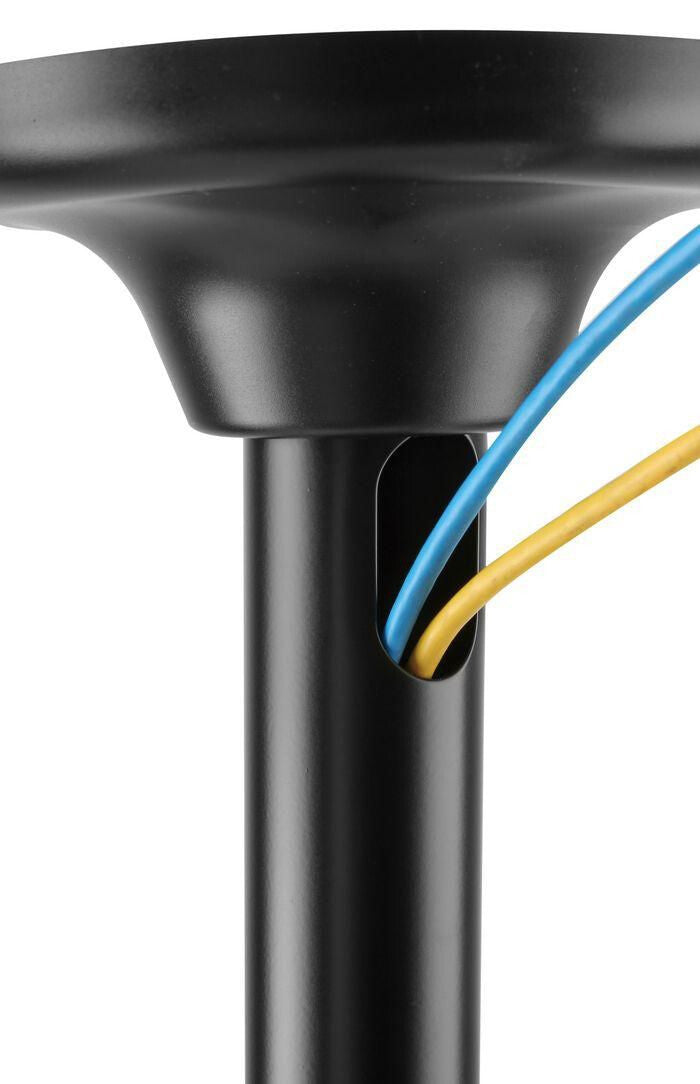

The cables can run through the pole for an elegant and minimalistic finish. The adjusting is done easy and sits tight so it is not sensitive to vibrations etc. Adjustable in height, from ceiling to center of screen: 560mm to 910mm.
Applications: Air ports, shops, hotels etc.
Specifikationer
Specifikationer
| Mounting | |
|---|---|
| Panel mounting interface | 200 x 200 mm |
| Maximum VESA mount | 600 x 400 mm |
| Minimum VESA mount | 200 x 200 mm |
| Mounting type | Ceiling |
| Maximum screen size | 177.8 cm (70") |
| Minimum screen size | 94 cm (37") |
| Maximum weight capacity | 50 kg |
| Number of displays supported | 1 |
| Ergonomics | |
|---|---|
| Cable management | Yes |
| Tilt adjustment | Yes |
| Rotating | Yes |
| Adjustable | Yes |
| Telescopic | Yes |
| Angle of rotation | 360° |
| Swivel angle range | -180 - 180° |
| Swivel angle | 360° |
| Tilt angle range | -25 - 0° |
| Height adjustment range | 778 - 1128 mm |
| Height adjustment type | Manual |
| Height adjustment | Yes |
| Design | |
|---|---|
| Housing material | Steel |
| Product colour | Black |
| Weight & dimensions | |
|---|---|
| Weight | 5.6 kg |
| Height | 1128 mm |
| Depth | 435 mm |
| Width | 680 mm |
| Packaging data | |
|---|---|
| Package volume | 30000 cm³ |
| Package weight | 6.3 kg |
| Package height | 760 mm |
| Package depth | 145 mm |
| Package width | 305 mm |
| Packaging content | |
|---|---|
| User guide | Yes |
| Mounting kit | Yes |
| Screws included | Yes |
| Manual | Yes |
| Wrench included | Yes |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| VESA mount included | Yes |
| Easy to install | Yes |
| Other features | |
|---|---|
| VESA mounting | Yes |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85299097 |
