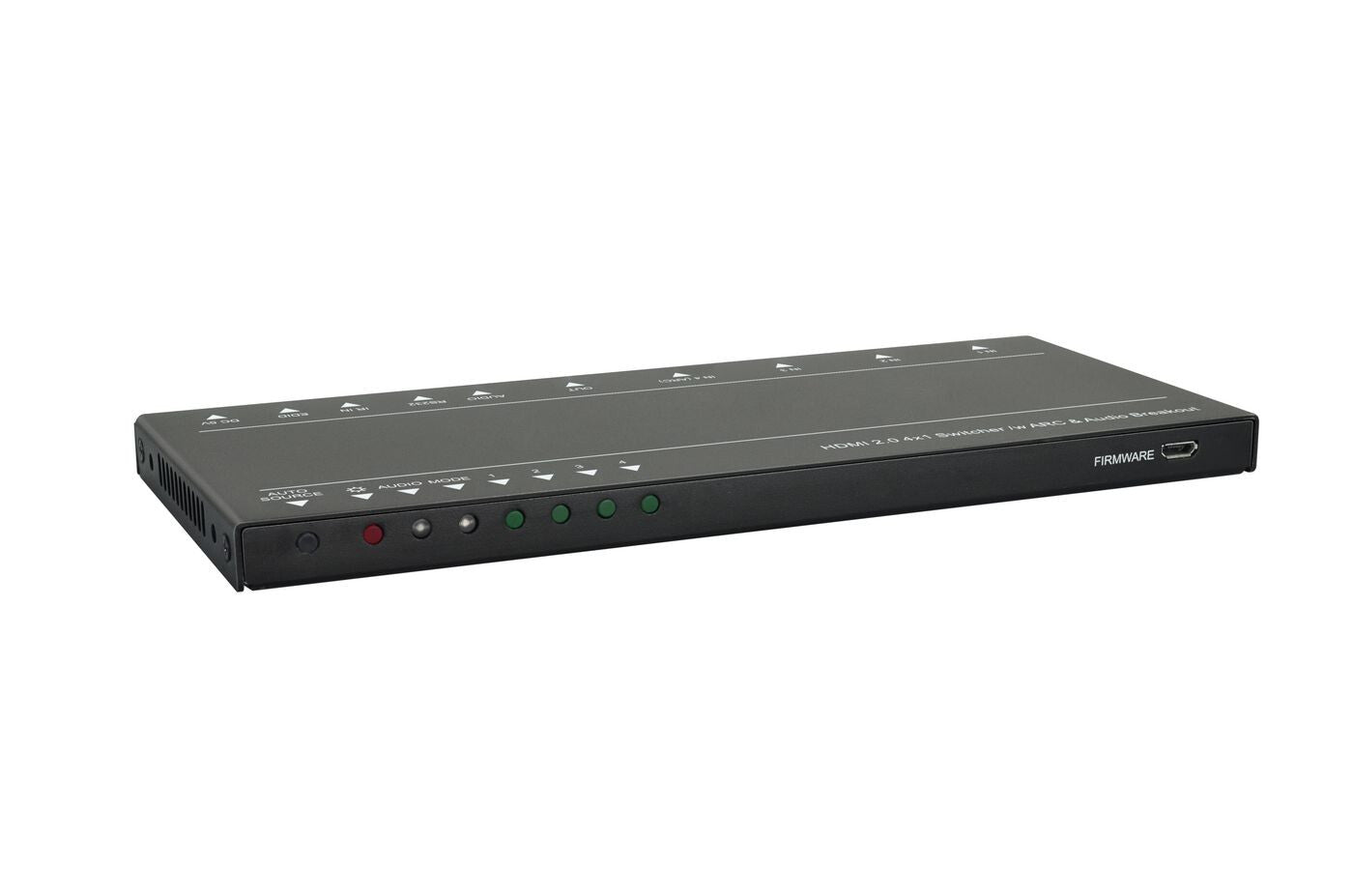

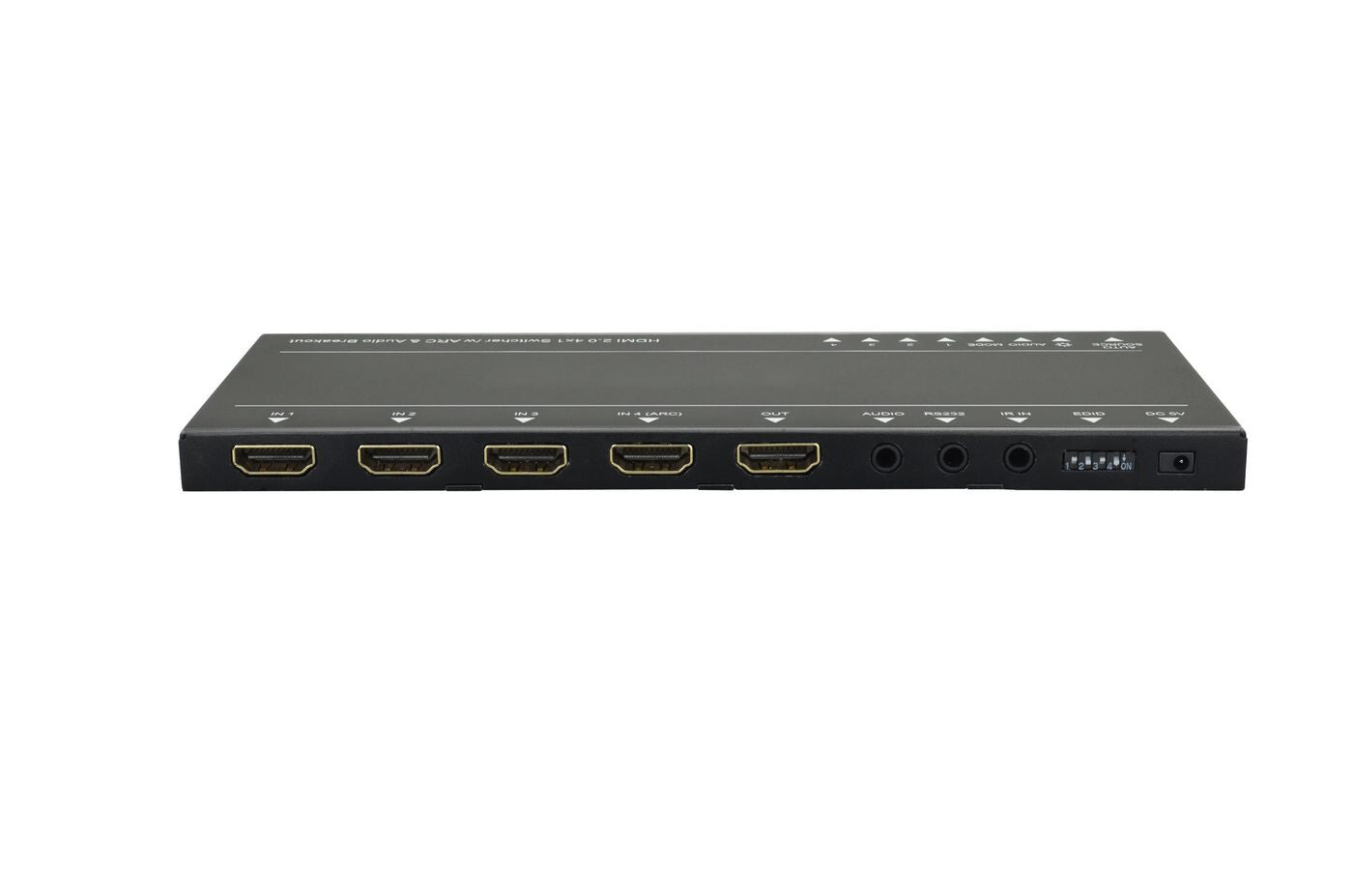

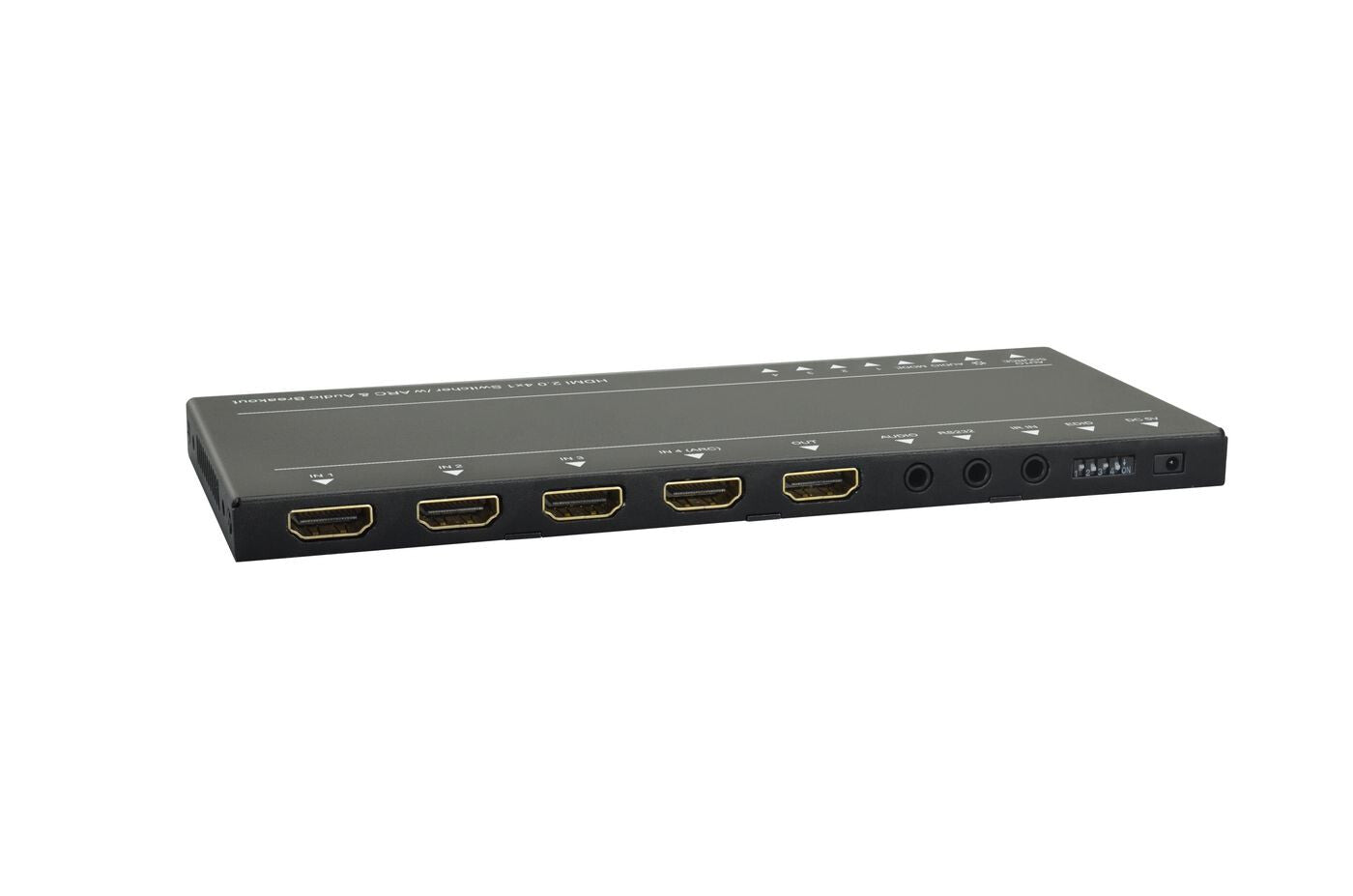

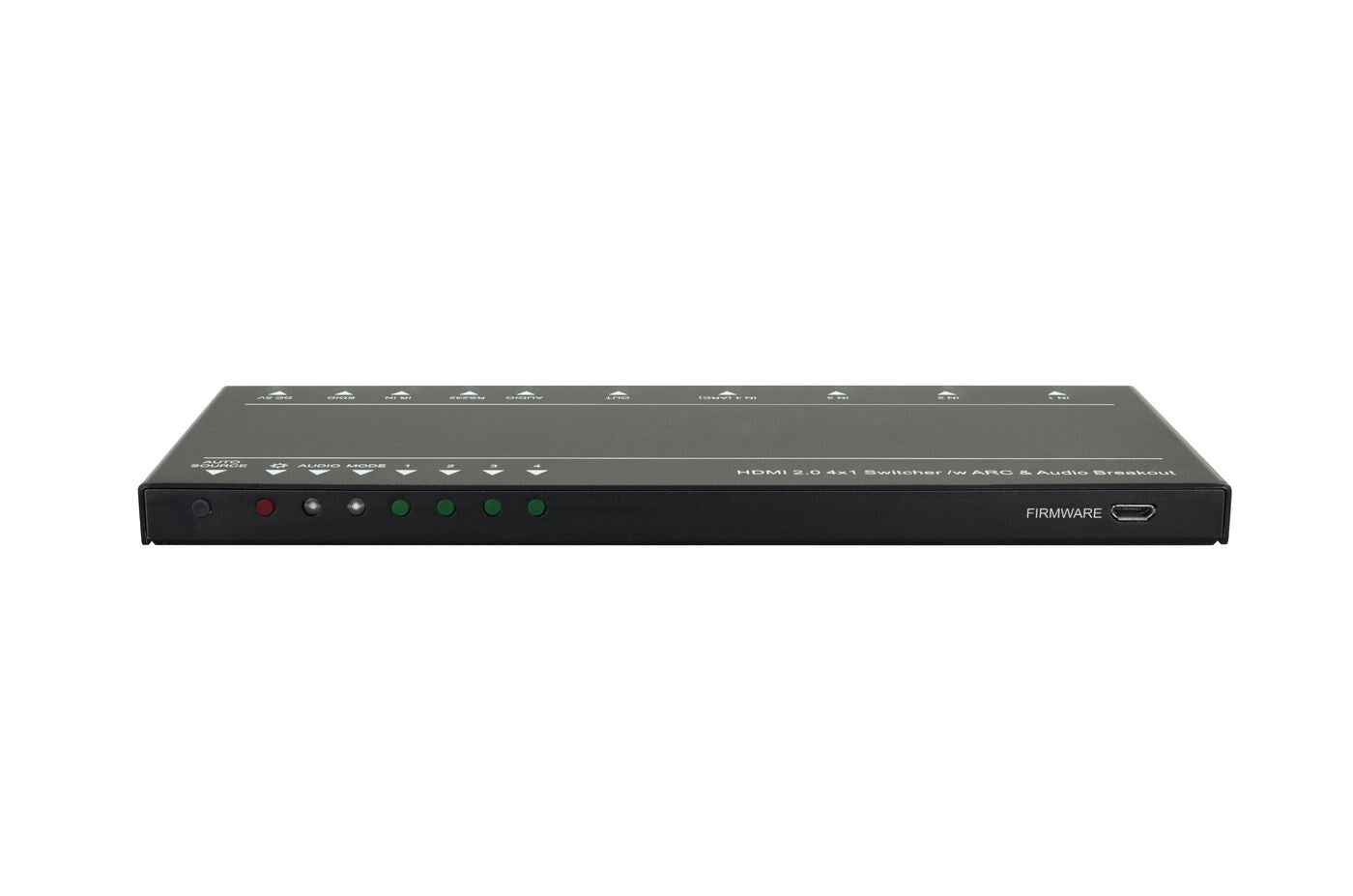

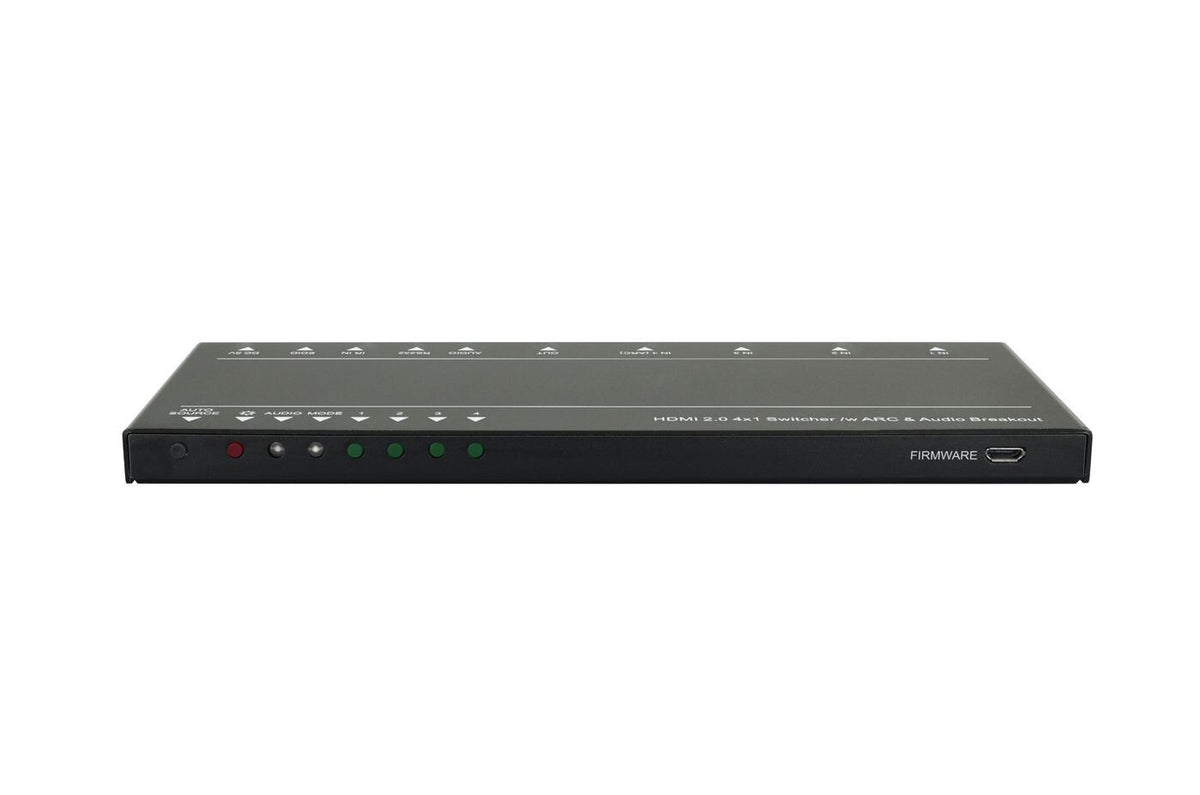

Vivolink VLSW141H video switch HDMI
Beskrivelse
Beskrivelse

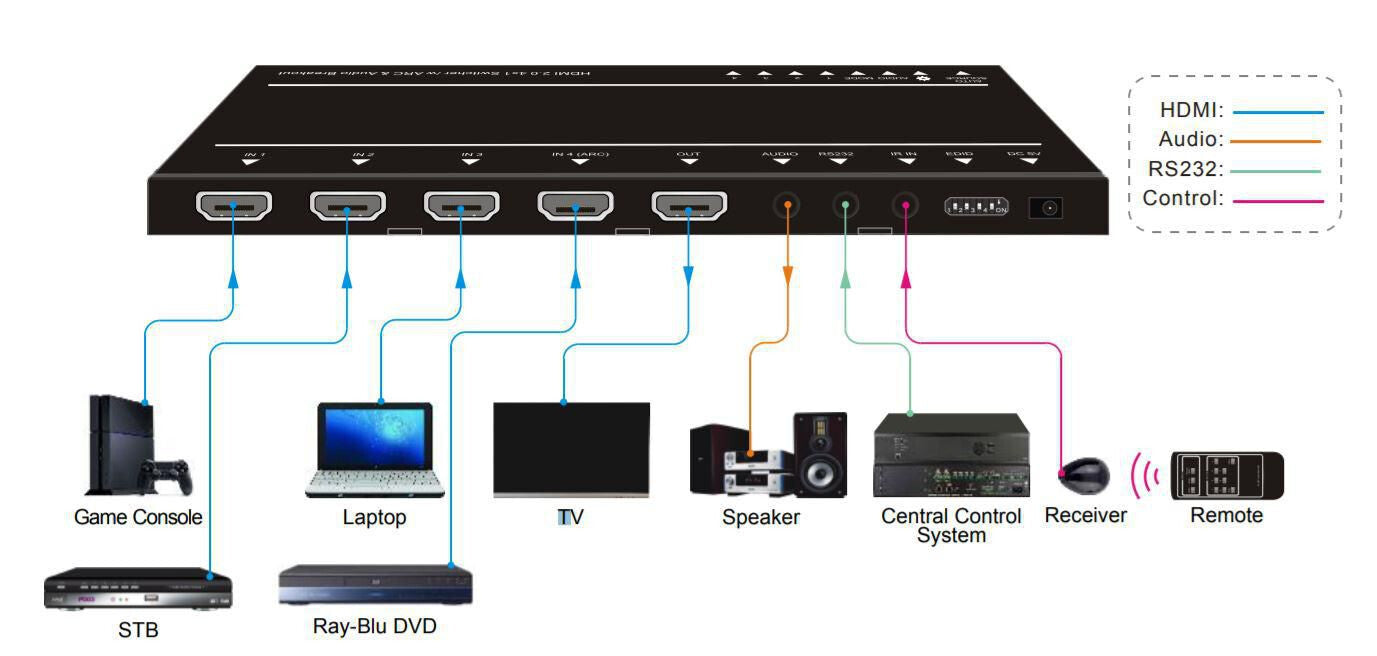

The VLSW141H is a high-performance 4x1 HDMI switch, designed to manage multiple HDMI sources with ease. It supports HDMI 18Gbps bandwidth, enabling resolutions up to 4K@60Hz with 4:4:4 chroma subsampling and HDR, ensuring exceptional video quality. The device is HDCP 2.2 compliant, ensuring compatibility with the latest content protection standards.
Key features include smart EDID management for seamless integration with various display devices, support for Audio Return Channel (ARC), and audio de-embedding capabilities, allowing extraction of audio signals for separate processing. The switcher offers both automatic and manual switching modes, providing flexibility in source selection. Its ultra-slim design facilitates easy installation in diverse environments.
Specifikationer
Specifikationer
| Ports & interfaces | |
|---|---|
| RS-232 ports | 1 |
| 3.5 mm (1/8-inch) out | Yes |
| S/PDIF out port | No |
| Audio (L/R) out | 1 |
| Number of HDMI outputs | 1 |
| HDMI in | 4 |
| HDMI version | 2.0 |
| HDMI ports quantity | 5 |
| Video port type | HDMI |
| Features | |
|---|---|
| Audio output channels | 2.0 channels |
| HDCP | Yes |
| Maximum resolution | 3840 x 2160 pixels |
| HD type | 4K Ultra HD |
| HDCP version | 2.2 |
| LED indicators | Yes |
| Remote control type | IR + RS232 |
| Audio formats supported | PCM |
| Bandwidth | 18 Gbit/s |
| Plug and Play | Yes |
| Extended display identification data (EDID) | Yes |
| Maximum frame rate | 60 fps |
| Consumer Electronics Control (CEC) support | Yes |
| Product colour | Black |
| Power | |
|---|---|
| AC input voltage | 100 - 240 V |
| Weight & dimensions | |
|---|---|
| Dimensions (WxDxH) | 194 x 81 x 12 mm |
| Weight | 180 g |
| Height | 12 mm |
| Depth | 81 mm |
| Width | 194 mm |
| Packaging data | |
|---|---|
| Package weight | 564 g |
| Package height | 124 mm |
| Package depth | 134 mm |
| Package width | 239 mm |
| Packaging content | |
|---|---|
| AC adapter included | Yes |
| Mounting brackets included | Yes |
| Remote control included | Yes |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -10 - 55 °C |
| Technical details | |
|---|---|
| Audio support | Yes |
