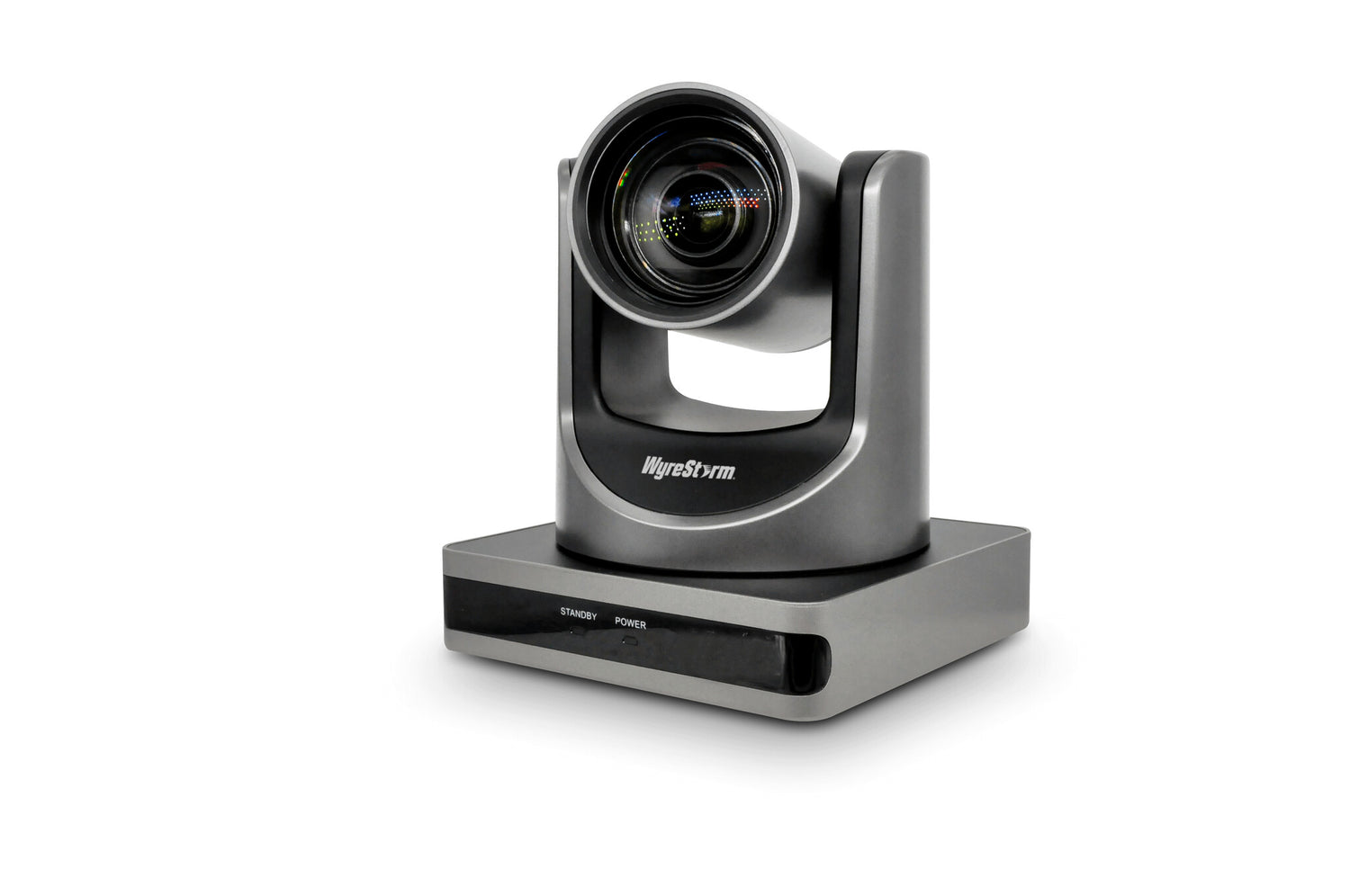

WyreStorm CAM-200-PTZ video conferencing camera Black 1920 x 1080 pixels 30 fps

WyreStorm  |  Varenummer: CAM-210-PTZ

Beskrivelse

1080p HD PTZ Conference Camera with USB 3.0 & Network Output, 1x USB 3.0 Type B female, 1x RJ45 8-pin LAN

PAN, TILT AND ZOOM
A high-grade pan and tilt motor provides extremely smooth camera movement. Advanced configuration options allow you to adjust the motor speed along with the ability to save and recall camera position and zoom presets.

FLEXIBLE CONTROL
Control is support via RS-232 or LAN via the industry standard VISCA protocol, making it a breeze for integration when using 3rd-party control systems and touch panels. The camera also comes with a convenient handheld IR remote.

ADVANCED CONFIGURATION
Advanced configuration can be made through the integrated web interface or the software available in the WyreStorm management suite. Adjust settings such as resolution, framerate, brightness, contrast and much more.

DUAL OUTPUTS
Transmit 1080p HD video via the USB 3.0 and network connection simultaneously. Use the USB 3.0 to connect locally to a computer or to a WyreStorm presentation switcher, while sending a video feed over the network to an NVR or streaming platform

Specifikationer

Camera
Slowest camera shutter speed 30 s
Fastest camera shutter speed 1/10000 s
Back Light Compensation (BLC) Yes
White balance Auto, Indoor, Manual, Outdoor, Push
Vertical field of view 44.8°
Horizontal field of view 72.5°
Sensor zoom 12x
Camera type Single camera
Video
HD type Full HD
Maximum frame rate 30 fps
Maximum video resolution 1920 x 1080 pixels
Design
Product colour Black

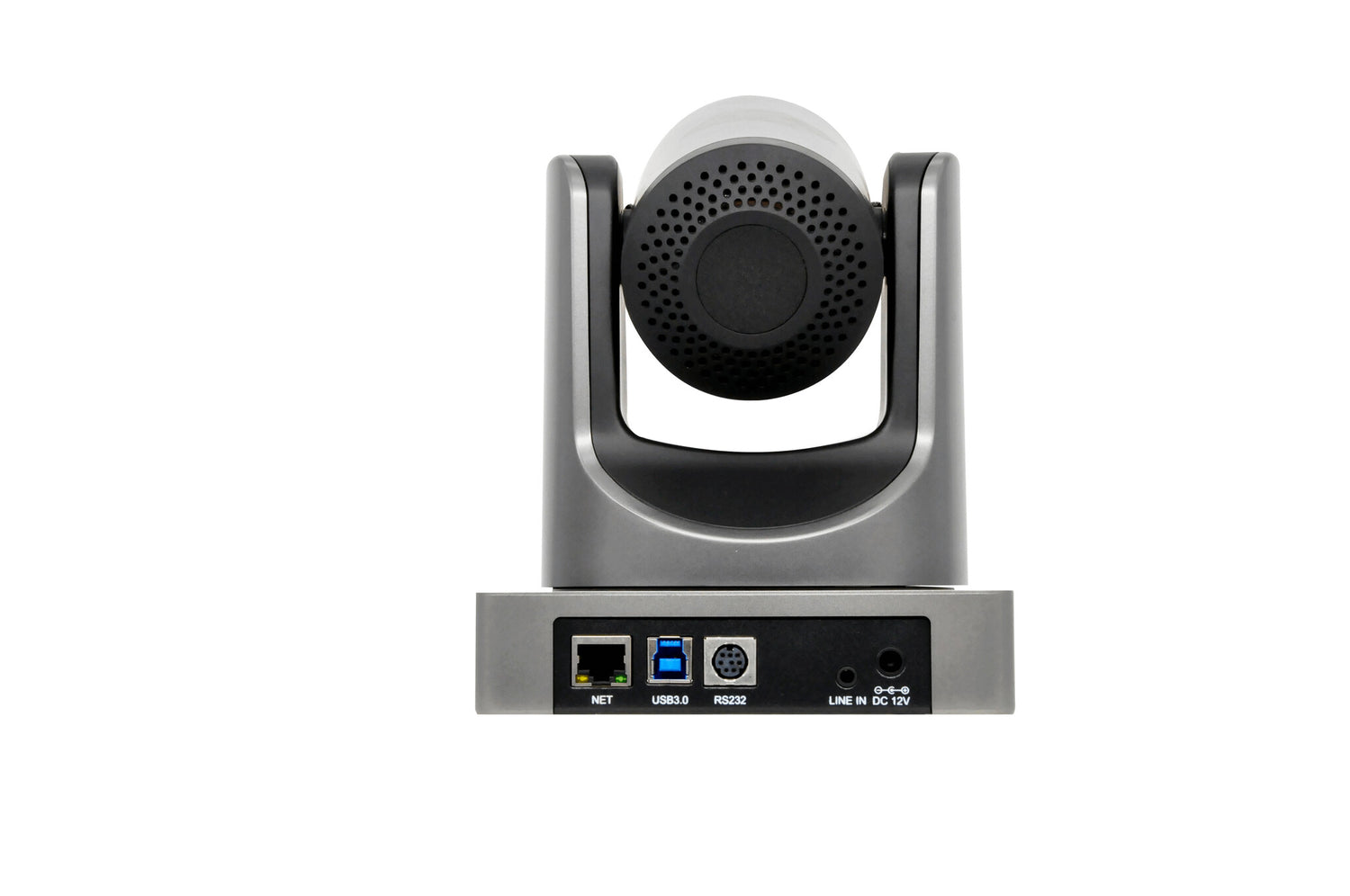

Ports & interfaces
Ethernet LAN (RJ-45) ports 1
RS-232 ports 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity 1
USB 2.0 ports quantity 1
Power
Power consumption (typical) 12 W
Input current 1 A
AC input voltage 12 V
Power source type AC
Network
Ethernet LAN data rates 1000 Mbit/s
Performance
Certification CE | FCC | RoHS | RCM | EAC
Weight & dimensions
Weight 1.17 kg
Height 168 mm
Depth 144 mm
Width 144 mm

Download

PDF download:
