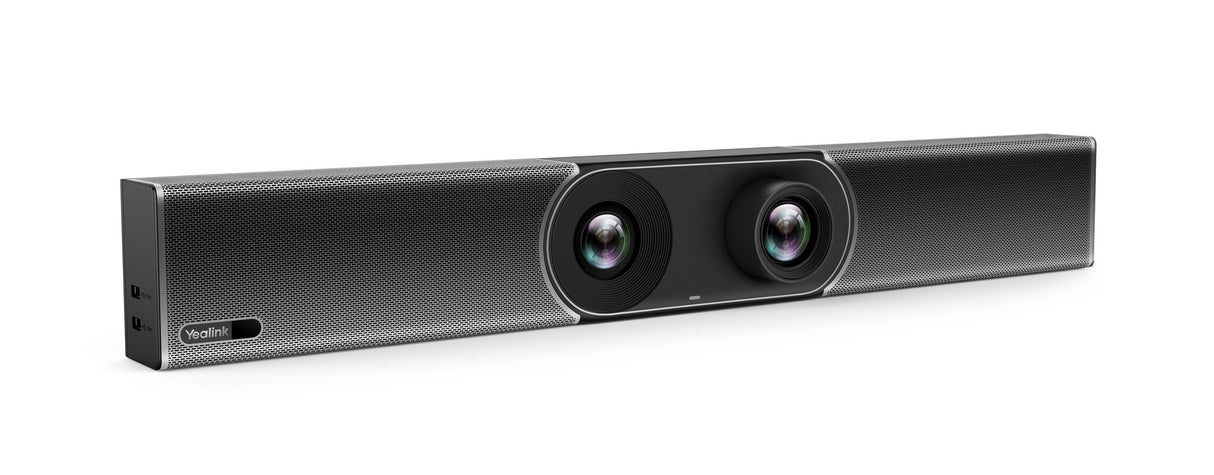

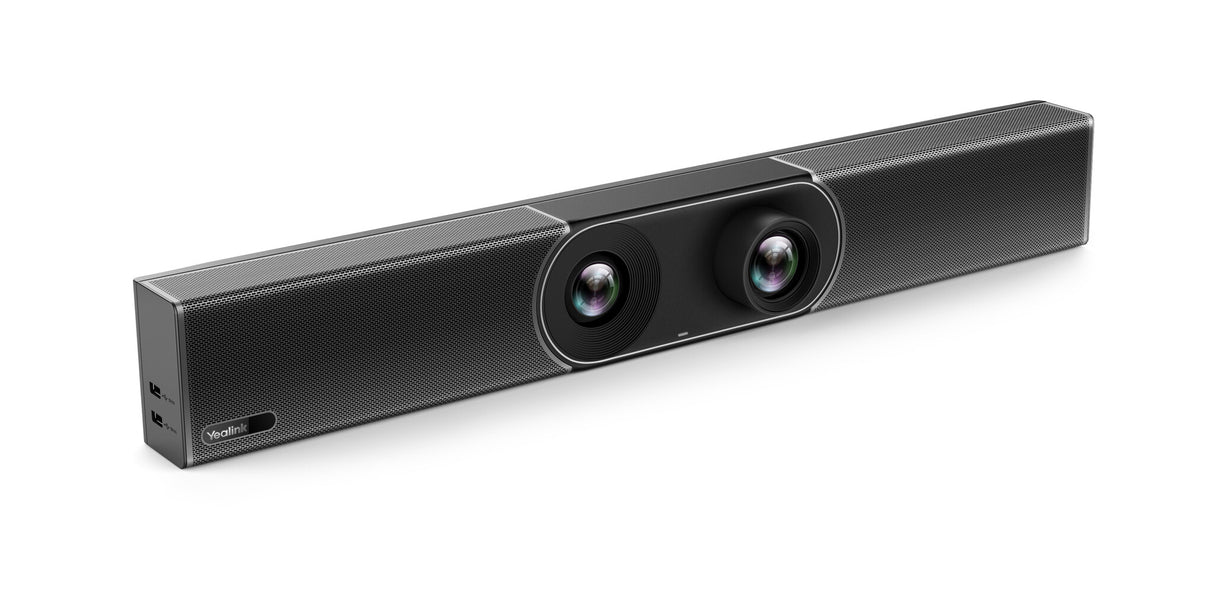

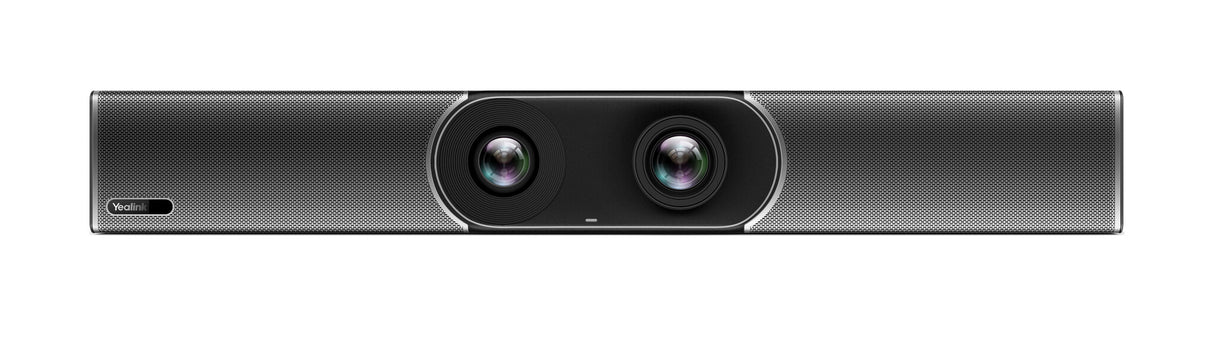

Yealink MeetingBar A30-010
Yealink | Varenummer:
A30-USB
Beskrivelse
Beskrivelse

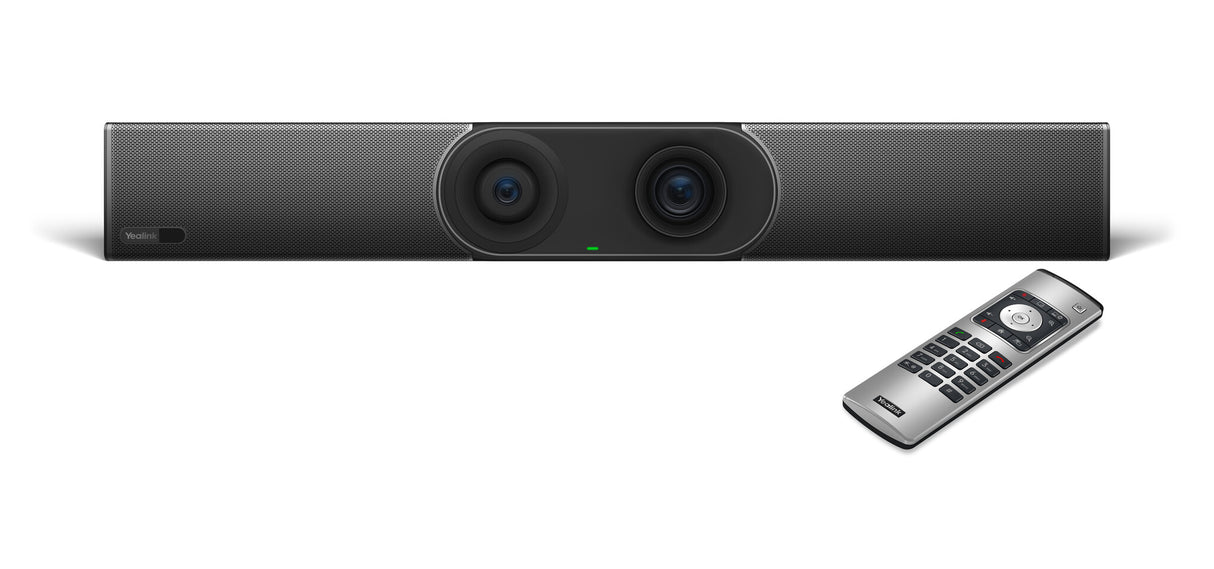

MeetingBar A30-010 - all-in-one video bar - Teams/Zoom/BYOD - AI-powered view - noise cancellation - video conferencing kit (video bar, remote control)
Yealink MeetingBar A30 is an all-ine-one video bar deisgned for medium space (up to 15, with additional extended wireless mic. VCM36). The dual-camera system catches details in a medium room precisely, with great color. AI-powered features including Auto Framing, Speaker Tracking, Picture-in-Picture and Smart Gallary deliver a focused view without distraction. The built-in 8-MEMS beamforming microphones pick up voice from all directions, and a full-duplex audio algorithm with AI-enhanced noise cancellation delivers clear sound for both sides clearly even if you are talking at the same time.
Specifikationer
Specifikationer
| Performance | |
|---|---|
| Product type | Video collaboration bar |
| Bluetooth | Yes |
| Product colour | Black |
| Auto framing | Yes |
| Meeting features | Add participates, Calendar, Content sharing, Hold/Resume, One-click join, Whiteboard |
| PTZ control | Yes |
| Video | |
|---|---|
| Video codecs | H.264 High profile, H.264 SVC, H.264 |
| Audio | |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 1 |
| Audio system full duplex | Yes |
| Echo cancellation | Yes |
| RMS rated power | 5 W |
| Ports & interfaces | |
|---|---|
| HDMI input ports quantity | 1 |
| HDMI output ports quantity | 2 |
| USB connector type | USB Type-A, USB Type-C |
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Line-in | Yes |
| Line-out | Yes |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | Yes |
| Networking standards | IEEE 802.1x |
| VLAN support | Yes |
| Security algorithms | 256-bit AES, EAP-MD5, EAP-TTLS, PEAP, SRTP, TLS |
| Camera | |
|---|---|
| Megapixel (approx.) | 8 MP |
| Camera type | Dual camera |
| Second camera resolution | 8 MP |
| Field of view (tele) | 90° |
| Field of view (wide) | 120° |
| Microphone | |
|---|---|
| Microphone mute | Yes |
| Number of microphone arrays | 8 |
| Computer system | |
|---|---|
| Processor family | Qualcomm Snapdragon |
| Processor model | 845 |
| Operating system installed | Android 10 |
| Features | |
|---|---|
| Cable lock slot | Yes |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -30 - 70 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Power | |
|---|---|
| Power source type | AC |
| AC input voltage | 100 - 240 V |
| DC output voltage | 48 V |
| DC output current | 0.7 A |
| Power consumption (idle) | 13 W |
| Power consumption (typical) | 10.5 W |
| Certificates | |
|---|---|
| Certification | CE, FCC, RoHS, REACH, ISO 9001, CCC, NOM |
| Weight & dimensions | |
|---|---|
| Width | 700 mm |
| Depth | 98 mm |
| Height | 121 mm |
| Packaging content | |
|---|---|
| Cables included | HDMI, LAN (RJ-45) |
| Networking cable length | 3 m |
| HDMI cable length | 1.8 m |
| AC adapter included | Yes |
| Quick start guide | Yes |
| Remote control included | Yes |
Download
Download
PDF download:
Yealink MeetingBar A30-010
Nøgle specifikationer
Nøgle specifikationer
-
SKI nummerSKI507024-00202
