Yealink MeetingBar A10-020
Yealink | Varenummer:
1203684
Beskrivelse
Beskrivelse

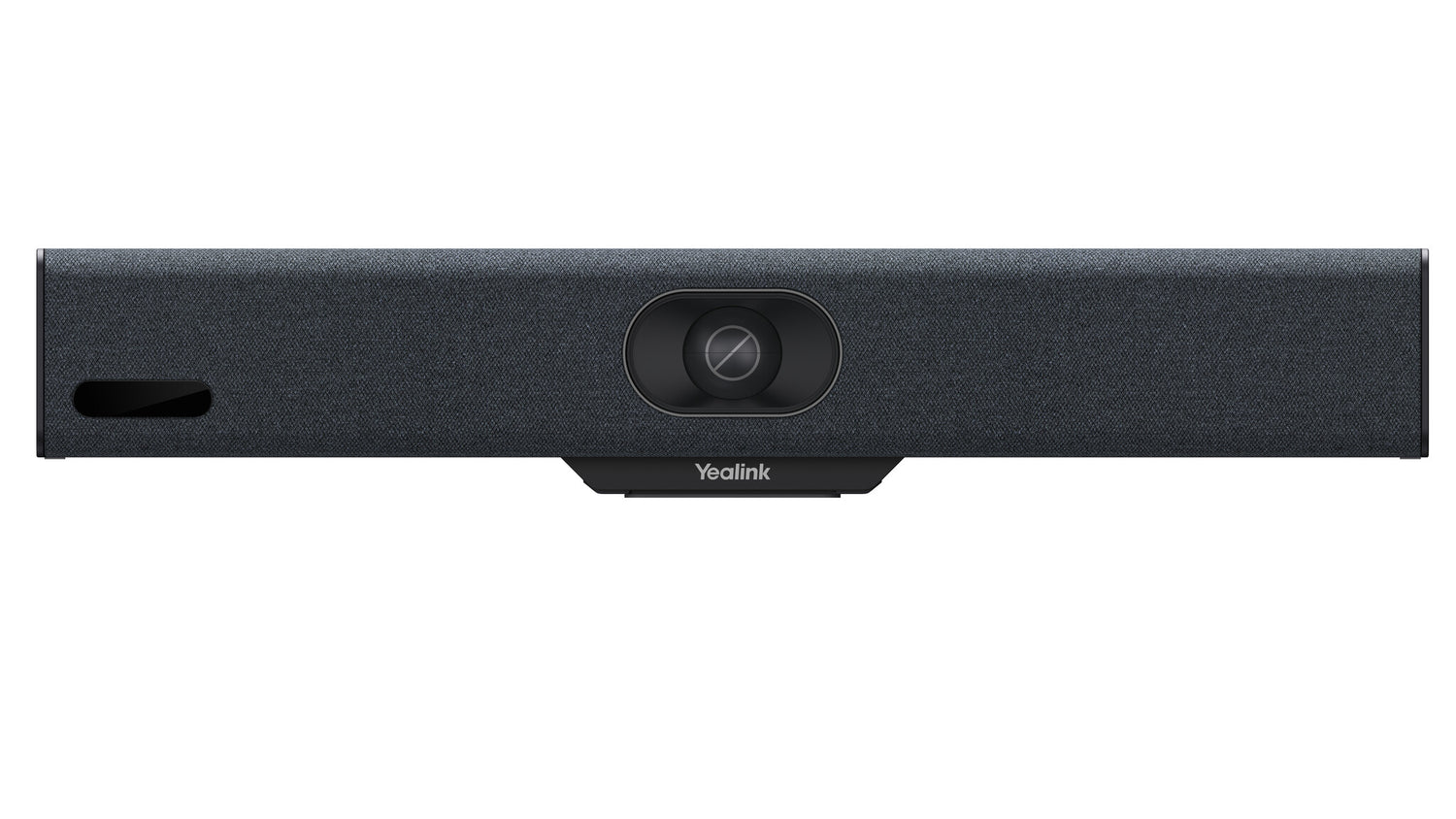

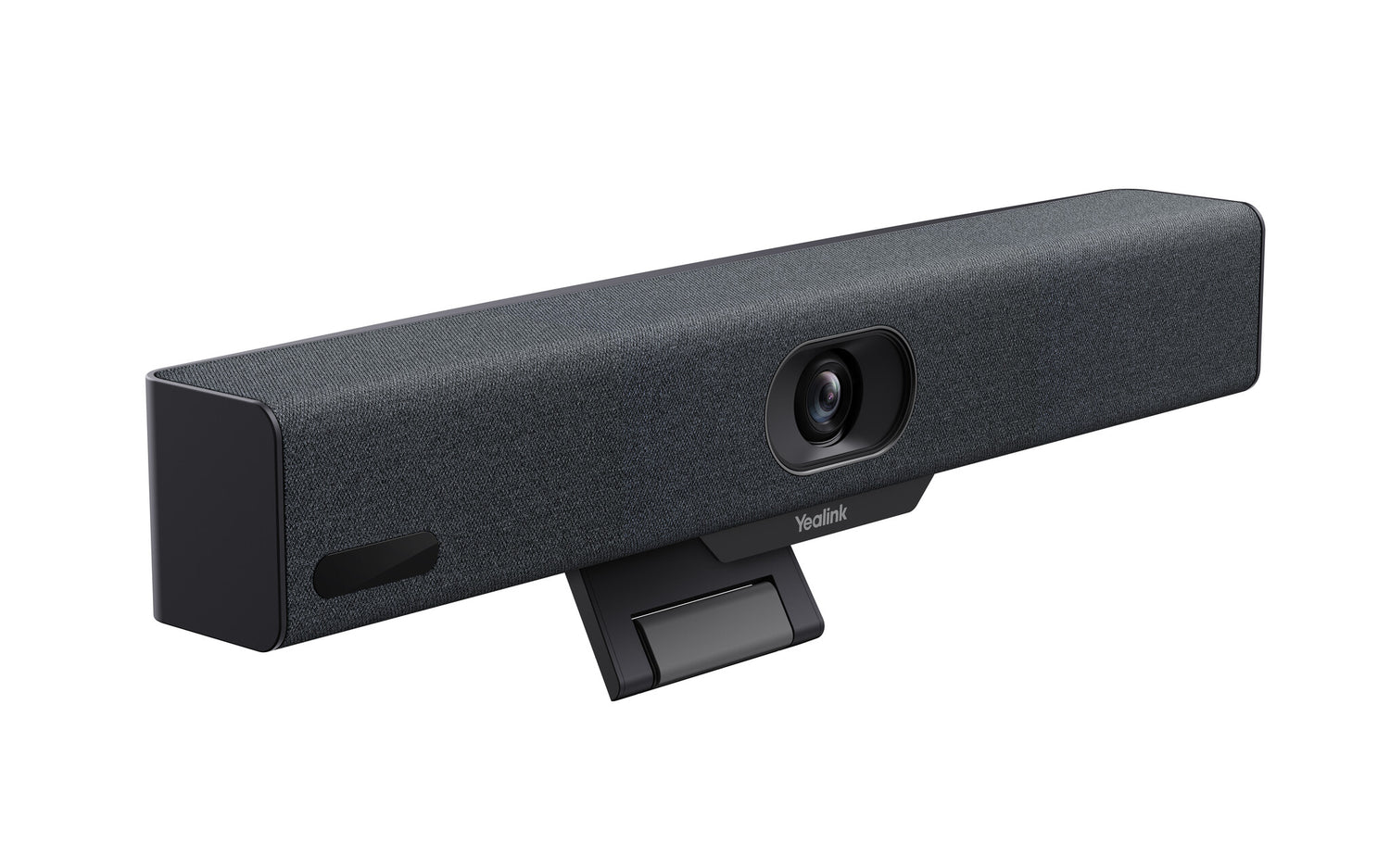

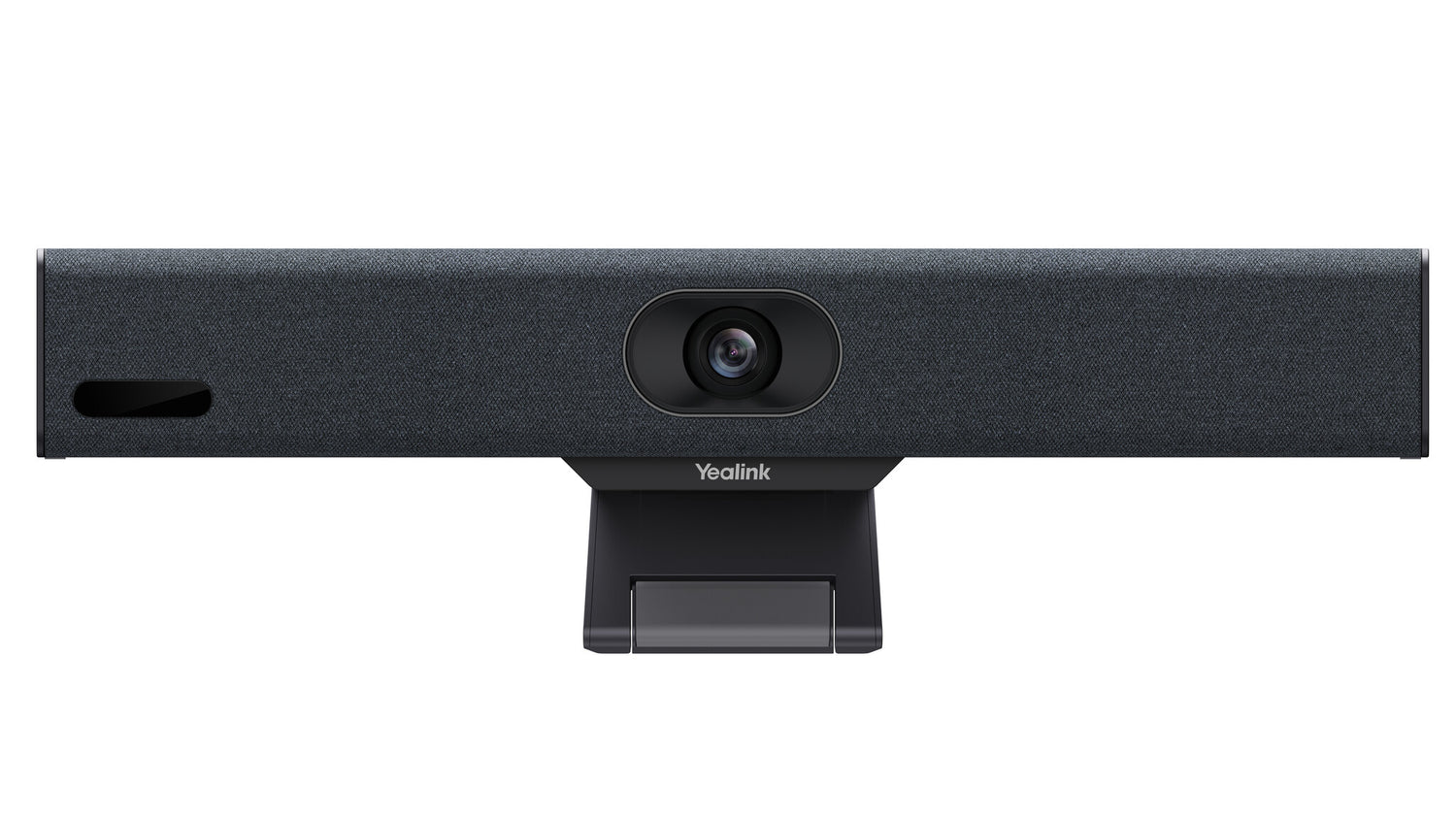

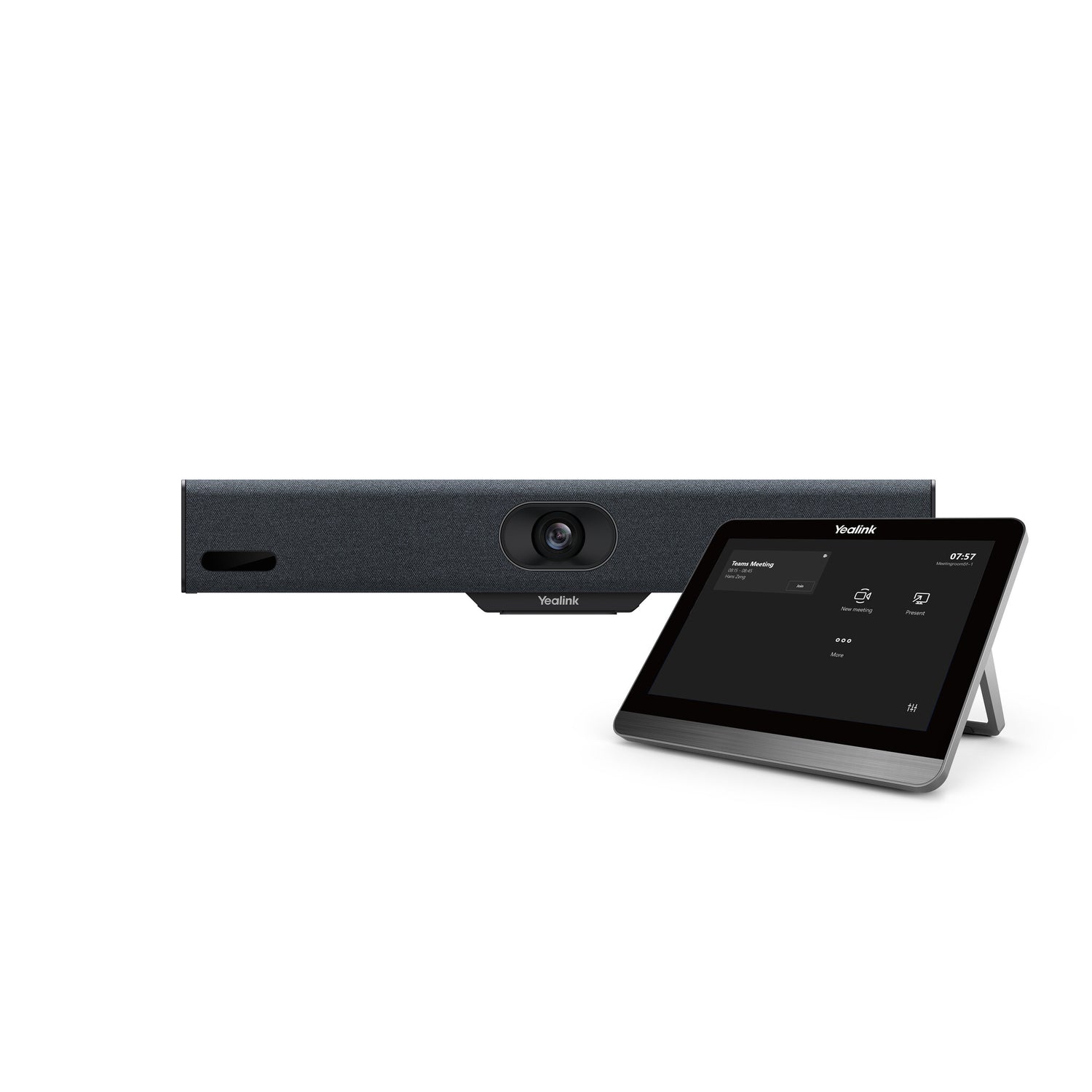

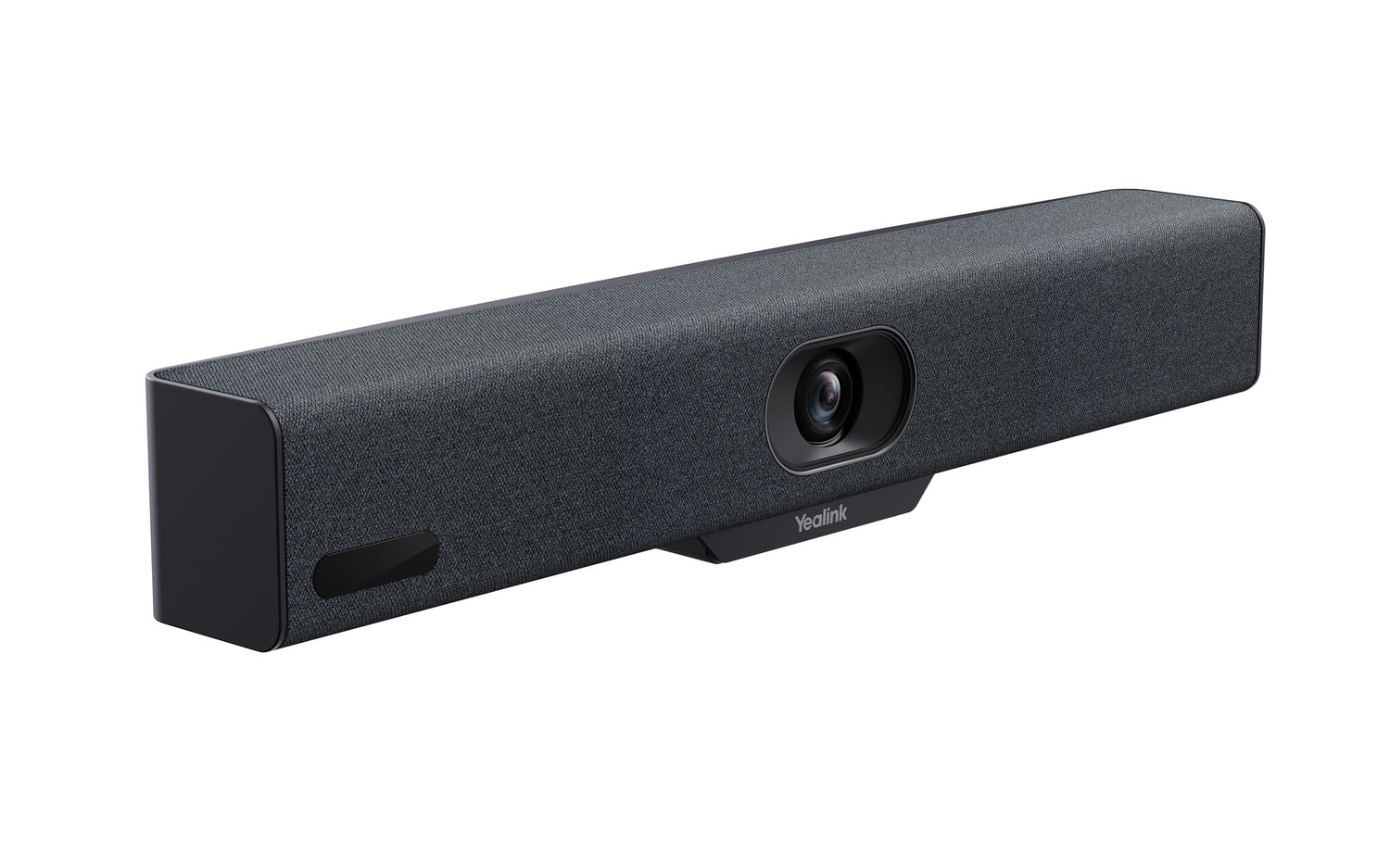

MeetingBar A10-020 - all-in-one video bar - Teams/Zoom/BYOD - video conferencing kit (video bar, touch console CTP18)
Yealink MeetingBar A10 is an all-ine-one video bar deisgned for small space (1-7 people) and home office. The built-in 4k camera with 120° field of view catches details precisely, with great color. AI-powered features including Auto Framing, Speaker Tracking and Smart Gallary deliver a focused view without distraction. The built-in 8-MEMS beamforming microphones pick up voice from all directions, and a full-duplex audio algorithm with AI-enhanced noise cancellation delivers clear sound for both sides clearly even if you are talking at the same time.
Specifikationer
Specifikationer
| Performance | |
|---|---|
| PTZ control | Yes |
| Wall mountable | Yes |
| Meeting features | Add participates, Calendar, Content sharing, Hold/Resume, One-click join |
| Tracking modes | Presenter mode |
| Auto-tracking | Yes |
| Auto framing | Yes |
| Product colour | Black, Grey |
| Bluetooth version | 4.2 |
| Bluetooth | Yes |
| Number of cameras | 1 |
| Product type | Video collaboration bar |
| Video | |
|---|---|
| Video codecs | H.264 High profile, H.264 SVC, H.264 |
| Maximum frame rate | 30 fps |
| Maximum video resolution | 3840 x 2160 pixels |
| HD type | 4K Ultra HD |
| Audio | |
|---|---|
| Speaker power | 5 W |
| Echo cancellation | Yes |
| Audio system full duplex | Yes |
| Built-in speaker(s) | Yes |

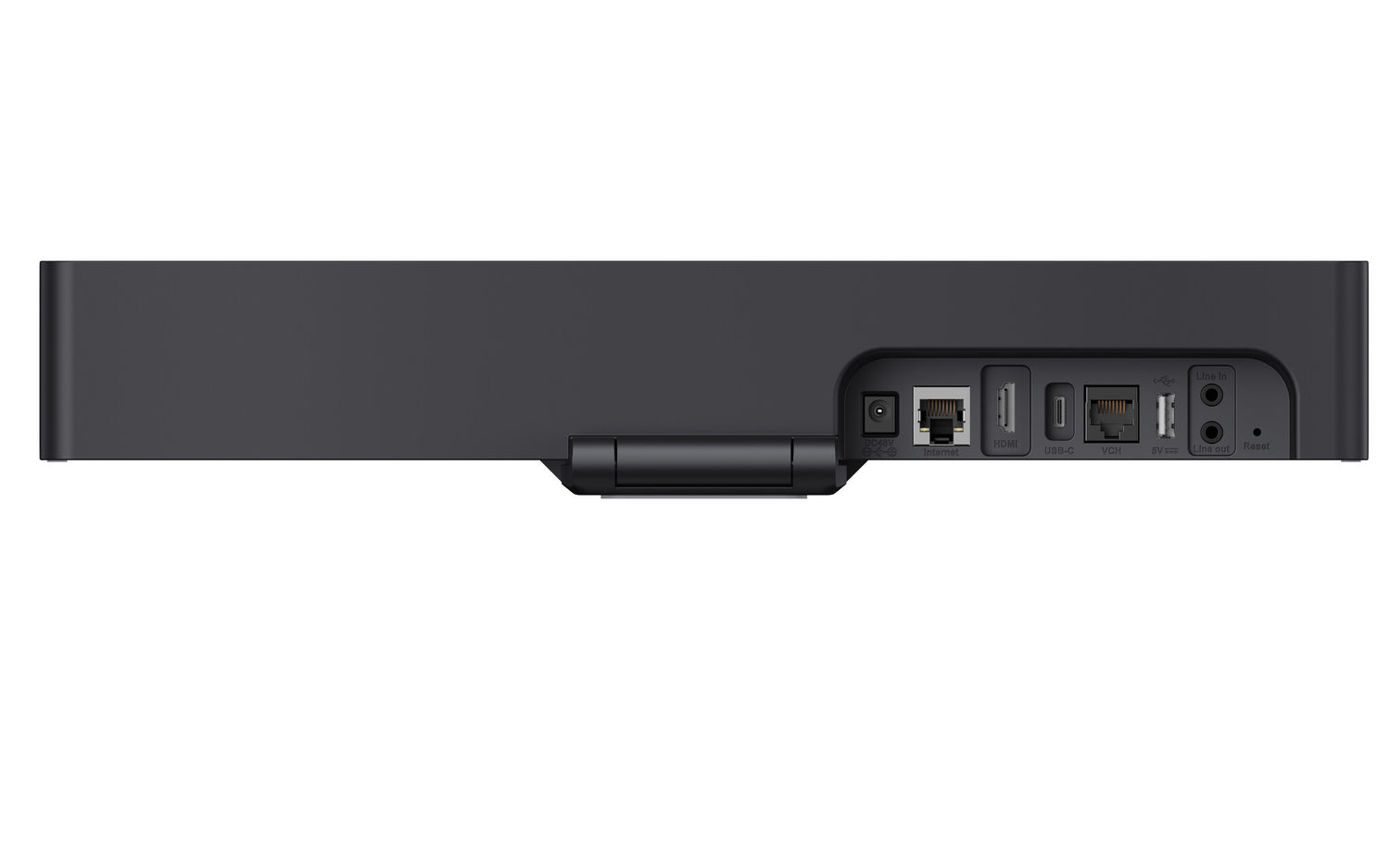

| Ports & interfaces | |
|---|---|
| Reset slot | Yes |
| Microphone in | Yes |
| Line-out | Yes |
| Line-in | Yes |
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB connector type | USB Type-A, USB Type-C |
| HDMI output ports quantity | 1 |
| Network | |
|---|---|
| Security algorithms | 256-bit AES, EAP-TLS, MSCHAPv2, PEAP, TLS |
| Wi-Fi | Yes |
| Ethernet LAN data rates | 10,1000,100 Mbit/s |
| Ethernet LAN | Yes |
| Camera | |
|---|---|
| Camera privacy shutter | Yes |
| Remote control interface | Ethernet |
| Auto Focus (AF) object detection | People |
| Diagonal field of view | 120° |
| Horizontal field of view | 105° |
| Camera type | Single camera |
| Display | |
|---|---|
| Touchscreen | Yes |
| Display resolution | 1280 x 800 pixels |
| Display diagonal | 20.3 cm (8") |
| Microphone | |
|---|---|
| Number of microphone arrays | 8 |
| Microphone mute | Yes |
| Microphone sensitivity | 88 dB |
| Features | |
|---|---|
| Cable lock slot | Yes |
| Motion sensor | Yes |
| Computer system | |
|---|---|
| Mobile operating systems supported | Android 11.0 |
| Operating system installed | Android 10 |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Storage temperature (T-T) | -30 - 70 °C |
| Power | |
|---|---|
| Power consumption (idle) | 10 W |
| Power consumption (typical) | 10.5 W |
| Power consumption (max) | 14 W |
| DC output current | 0.7 A |
| DC output voltage | 48 V |
| AC input voltage | 100 - 240 V |
| Power source type | AC |
| Certificates | |
|---|---|
| Certification | CE, FCC, RoHS, REACH, ISO 9001, CCC, NOM |
| Weight & dimensions | |
|---|---|
| Height | 82 mm |
| Depth | 68 mm |
| Width | 380 mm |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
| AC adapter included | Yes |
| HDMI cable length | 1.8 m |
| Networking cable length | 3 m |
| Cables included | HDMI, LAN (RJ-45) |
