Yealink MeetingBar A40-031
Yealink | Varenummer:
1206676
Beskrivelse
Beskrivelse

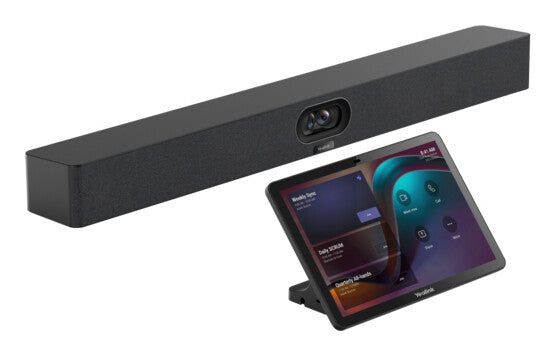

MeetingBar A40-031, all-in-one video bar, Teams/Zoom certified, video conferencing kit (video bar, touch console CTP25)
MeetingBar A40 is a next-generation all-in-one video bar that leverages industry-leading AI to enhance video and audio experience in daily hybrid meetings. It offers easy deployment and use, making it ideal for premium small and medium-sized meeting rooms. The One Cable Solution maximizes simplicity in two ways. A single Cat5e cable from the bar provides power and network connectivity to the touch console, automatically synchronizing the Teams account. Additionally, a single USB-C cable on the desk enables 4K sharing, General Mode, and PD charging.
Specifikationer
Specifikationer
| Performance | |
|---|---|
| Signal-to-Noise Ratio (SNR) | 63 dB |
| Product colour | Black |
| Bluetooth version | 5.0 |
| Bluetooth | Yes |
| Product type | Group video conferencing system |
| Video | |
|---|---|
| Aspect ratio | 16:9 |
| Maximum frame rate | 60 fps |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 3840 x 2160 |
| Supported video modes | 1080p, 2160p |
| Total megapixels | 48 MP |
| Maximum video resolution | 3840 x 2160 pixels |
| HD type | 4K Ultra HD |
| Audio | |
|---|---|
| RMS rated power | 20 W |
| Frequency range | 80 - 18000 Hz |
| Number of speakers | 2 |
| Built-in speaker(s) | Yes |
| Ports & interfaces | |
|---|---|
| Line-out | Yes |
| Line-in | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 2.0 ports quantity | 1 |
| HDMI ports quantity | 2 |
| Network | |
|---|---|
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Camera | |
|---|---|
| Camera shutter speed | 0.01 - 0.033 s |
| Minimum illumination | 0.1 lx |
| Aperture range (F-F) | 2.2 - 2.4 |
| Number of camera presets | 9 |
| Focus adjustment | Auto |
| Diagonal field of view | 120° |
| Vertical field of view | 54° |
| Horizontal field of view | 110° |
| Digital zoom | 6x |
| Zoom capability | Yes |
| Camera type | Dual camera |
| Megapixel (approx.) | 48 MP |
| Display | |
|---|---|
| Anti-glare screen | Yes |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display brightness | 3520 cd/m² |
| Touchscreen type | Capacitive |
| Touchscreen | Yes |
| Contrast ratio (typical) | 1000:1 |
| Display resolution | 1280 x 800 pixels |
| Display diagonal | 25.6 cm (10.1") |
| Display | IPS |
| Microphone | |
|---|---|
| Number of microphone arrays | 8 |
| Sound pressure level (max) | 130 dB |
| Microphone frequency | 100 - 20000 Hz |
| Microphone sensitivity | -38 dB |
| Logistics data | |
|---|---|
| Country of origin | China |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Weight & dimensions | |
|---|---|
| Package weight | 7.38 kg |
| Package height | 758 mm |
| Package depth | 406 mm |
| Package width | 198 mm |
| Weight | 6.57 kg |
| Height | 80 mm |
| Depth | 62 mm |
| Width | 650 mm |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
Yealink MeetingBar A40-031
