Yealink MVC S40-C4-000 video conferencing system 48 MP Ethernet LAN Group video conferencing system
Yealink | Varenummer:
1103833
Beskrivelse
Beskrivelse
SmartVision 40 + MCore Pro + MTouch E2

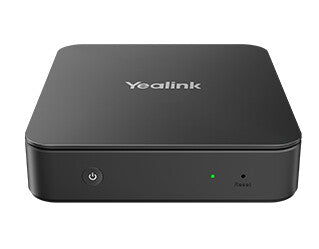

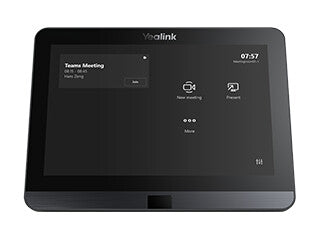

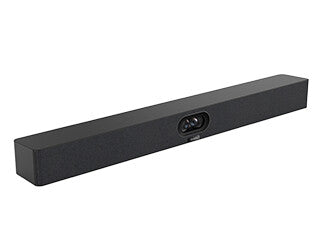

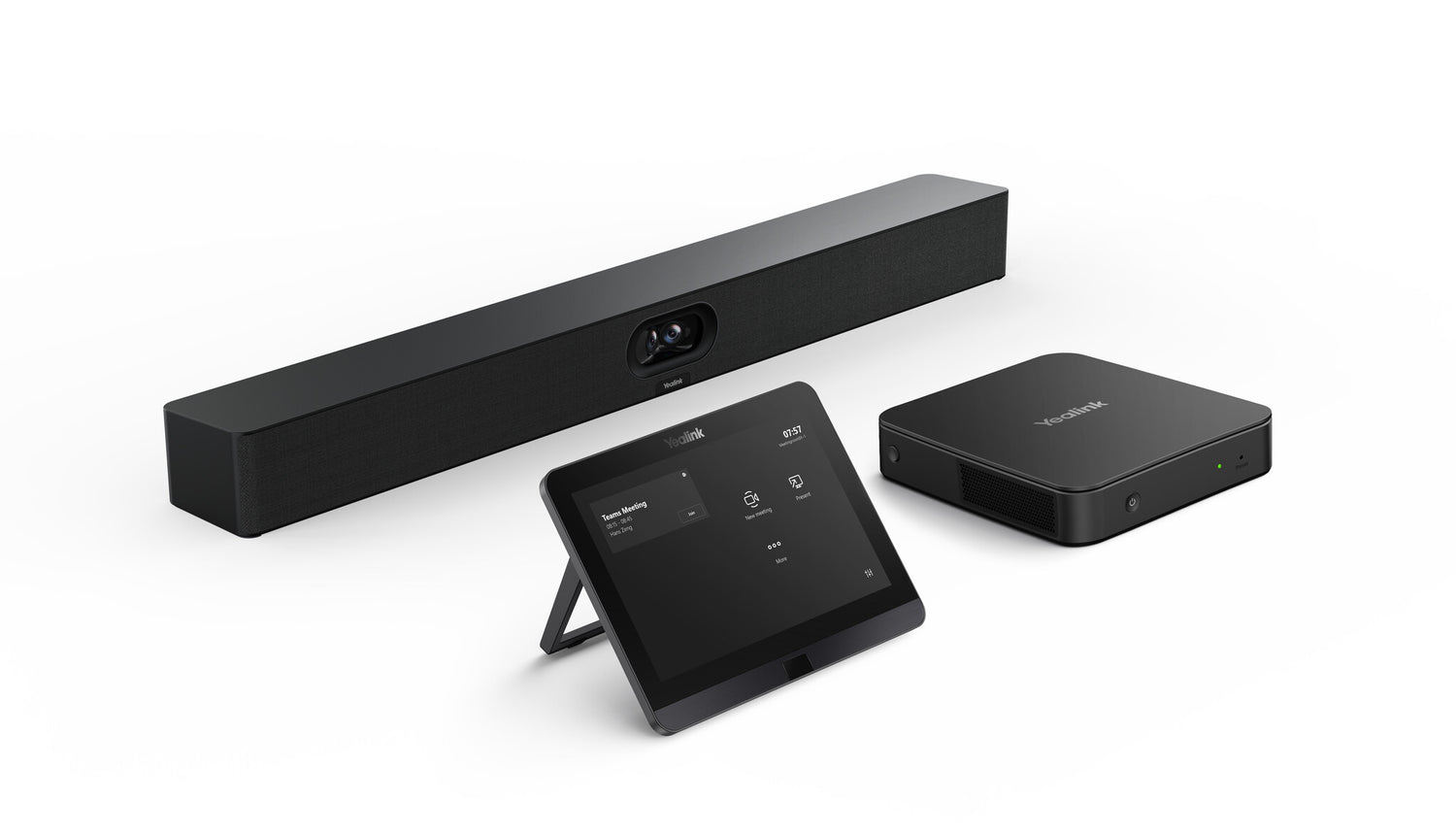

Yealink MVC S40 is a Windows-based video conferencing system for small to medium meeting rooms. The dual-eye camera system delivers an ultra-wide view even at long distances. The IntelliFocus feature shows the last active speakers, helping to focus on the ongoing conversation. With the AI-powered audio system, MVC S40 delivers voice clearly and eliminate noise, creating a face-to-face meeting experience for hybrid meetings. MVC S40-C4 kit consists of a video bar (SmartVision 40), a PC (Mcore), and a touch console (Mtouch E2).
Specifikationer
Specifikationer
| Performance | |
|---|---|
| Meeting features | Content sharing |
| Product colour | Black |
| Bluetooth version | 5.2 |
| Bluetooth | Yes |
| Number of cameras | 2 |
| Product type | Group video conferencing system |
| Video | |
|---|---|
| Streaming capability | Yes |
| Maximum frame rate | 30 fps |
| Supported video modes | 1080p, 2160p |
| Total megapixels | 45 MP |
| Maximum video resolution | 3840 x 2160 pixels |
| HD type | 4K Ultra HD |
| Audio | |
|---|---|
| Microphone pick-up range | 6 m |
| Noise reduction | Yes |
| Number of speakers | 2 |
| Built-in speaker(s) | Yes |
| Memory | |
|---|---|
| Total storage capacity | 128 GB |
| Storage media type | SSD |
| Internal memory | 8 MB |
| Ports & interfaces | |
|---|---|
| Reset slot | Yes |
| AC (power) in | Yes |
| Line-out | Yes |
| Line-in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 2.0 ports quantity | 1 |
| HDMI output ports quantity | 1 |
| HDMI input ports quantity | 1 |
| Interface module | |
|---|---|
| Interface module DC input port | Yes |
| Interface module RJ-45 ports quantity | 2 |
| Interface module USB 2.0 ports quantity | 4 |
| Interface module HDMI output ports quantity | 3 |
| Network | |
|---|---|
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Wi-Fi | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN | Yes |
| Camera | |
|---|---|
| Horizontal field of view | 111° |
| Field of view (FOV) angle | 120° |
| Digital zoom | 6x |
| Camera type | Dual camera |
| Megapixel (approx.) | 48 MP |
| Display | |
|---|---|
| Touchscreen type | Capacitive |
| Touchscreen | Yes |
| Display resolution | 1280 x 800 pixels |
| Display diagonal | 20.3 cm (8") |
| Display | IPS |
| Built-in display | Yes |
| Microphone | |
|---|---|
| Number of microphone arrays | 8 |
| Computer system | |
|---|---|
| Applications supported | Microsoft Teams Rooms App, support Skype for Business on-premise/online and Teams meetings, Yeallink RoomConnect |
| Processor generation | 11th gen Intel® Core™ i5 |
| Processor family | Intel® Core™ i5 |
| Computer system type | Mini PC |
| Features | |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Cable lock slot | Yes |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
|---|---|
| Package weight | 4.9 kg |
| Package height | 168 mm |
| Package depth | 173 mm |
| Package width | 703 mm |
| Weight | 4.3 kg |
| Packaging content | |
|---|---|
| Camera included | Yes |
| External interface module included | Yes |
Download
Download
PDF download:
Yealink MVC S40-C4-000 video conferencing system 48 MP Ethernet LAN...
Nøgle specifikationer
Nøgle specifikationer
-
SKI nummerSKI507024-00220-2
