Yealink MVC340
Yealink | Varenummer:
MVC340
Beskrivelse
Beskrivelse
MVC340-Native Microsoft Teams Rooms system for Huddle and Small rooms

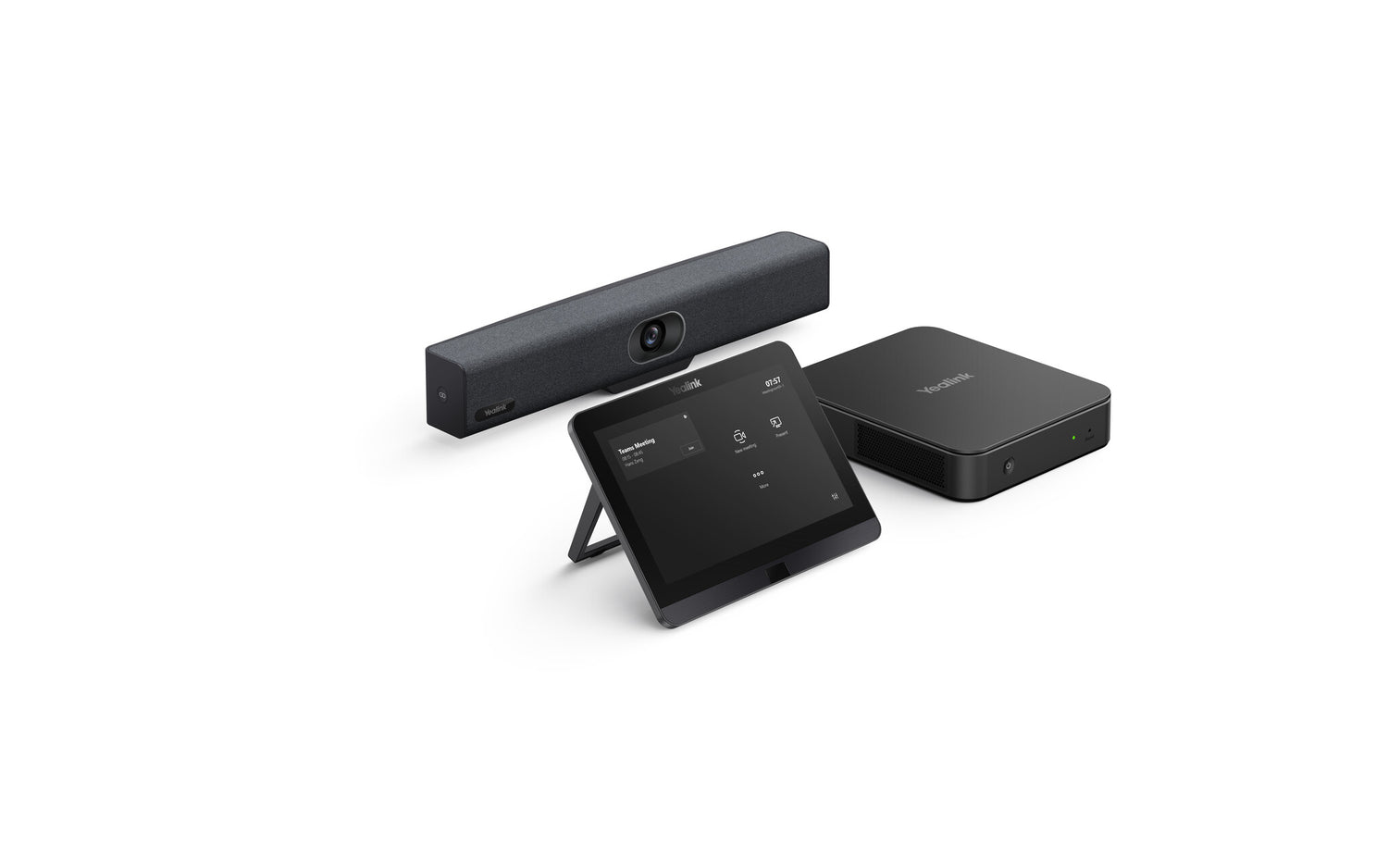

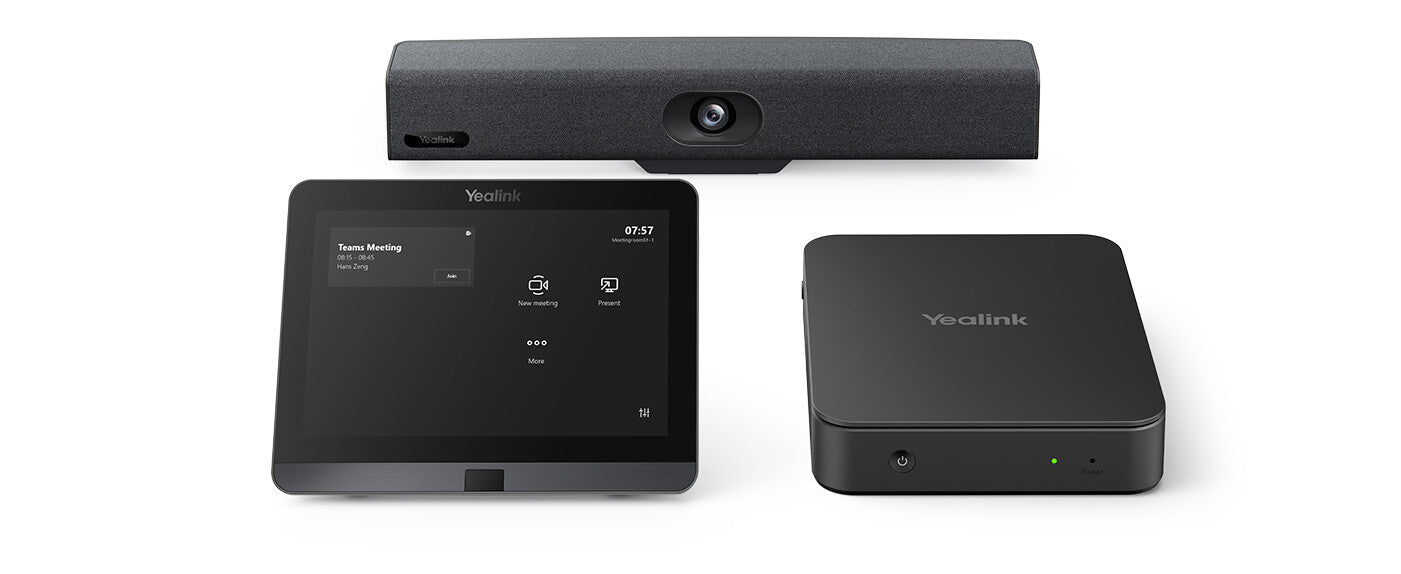

Yealink MVC340 is specially designed for huddle and entry-level small conference rooms. The new generation MVC340 portfolio is the optimum choice for small meeting rooms with easy deployment, which includes new generation high-performance MINI-PC MCore Pro, new generation touch panel MTouch E2, and intelligent USB All-in-one machine UVC34.
Specifikationer
Specifikationer
| Performance | |
|---|---|
| Auto framing | Yes |
| Product colour | Black, Grey |
| Bluetooth version | 5.2 |
| Bluetooth | Yes |
| Number of cameras | 1 |
| Product type | Group video conferencing system |
| Video | |
|---|---|
| Maximum frame rate | 30 fps |
| Supported video modes | 1080p, 2160p |
| Maximum video resolution | 3840 x 2160 pixels |
| HD type | 4K Ultra HD |
| Audio | |
|---|---|
| Microphone pick-up range | 5 m |
| Echo cancellation | Yes |
| Audio beamforming | Yes |
| Audio system full duplex | Yes |
| Memory | |
|---|---|
| Total storage capacity | 128 GB |
| Storage media type | SSD |
| Internal memory type | DDR4 |
| Internal memory | 8196 MB |
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB connector type | USB Type-A, USB Type-B |
| HDMI ports quantity | 3 |
| Network | |
|---|---|
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Wi-Fi | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN | Yes |
| Camera | |
|---|---|
| Diagonal field of view | 120° |
| Vertical field of view | 78° |
| Horizontal field of view | 110° |
| Field of view (FOV) angle | 120° |
| Image sensor size | 1/2.8" |
| Sensor type | CMOS |
| Zoom capability | Yes |
| Camera type | Single camera |
| Megapixel (approx.) | 8 MP |
| Display | |
|---|---|
| Touchscreen type | Capacitive |
| Touchscreen | Yes |
| Display resolution | 1280 x 800 pixels |
| Display diagonal | 20.3 cm (8") |
| Display | IPS |
| Built-in display | Yes |
| Microphone | |
|---|---|
| Number of microphone arrays | 8 |
| Features | |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Computer system | |
|---|---|
| Operating system installed | Windows 10 IoT Enterprise |
| Processor generation | 11th gen Intel® Core™ i5 |
| Processor family | Intel® Core™ i5 |
| Computer system type | Mini PC |
| Weight & dimensions | |
|---|---|
| Camera weight | 1.28 kg |
| Camera dimensions (WxDxH) | 380 x 55 x 55 mm |
| Interface module weight | 1 kg |
| Interface module dimensions (W x D x H) | 202 x 151 x 100 mm |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
| Camera included | Yes |
| AC adapter included | Yes |
| Cables included | USB |
Download
Download
PDF download:
Yealink MVC340
Nøgle specifikationer
Nøgle specifikationer
-
SKI nummerSKI507024-00218
