8", LCD, 16:10, 1280 x 800px, 1000:1, 1 x RJ-45, 802.11a/b/g/n/ac, Bluetooth 5.0, USB-C, Android 9
INTELLIGENT SOLUTION, SMART WORKSPACE

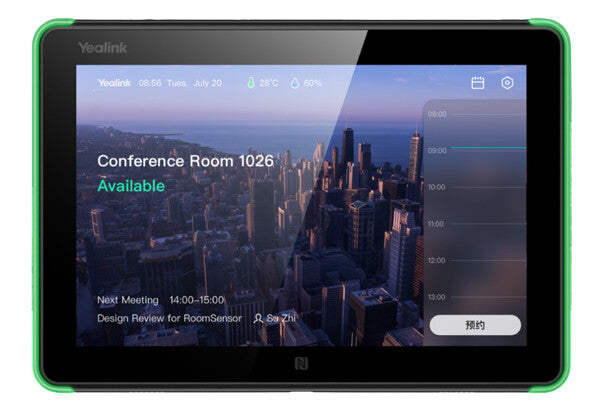

Yealink RoomPanel is a professional multi-function room scheduling device with 8-inch touch screen, Android 9.0 OS, full-RGB LED, dual microphone and speakerphones array. The all-in-one panel not only displays the room status, but also allows for reservations of all meeting rooms within the organization.
Dedicated Interface,
Modern Stylish Design
Slim and compact, along with elegant and metal appearance, the panel is ideal and congruent for modern workspaces. It also brings superior visual and interactive experience on the 8-inch touchscreen with anti-fingerprint craft as well as the light and proximity sensor.
Vibrant LED Bars, Room Status At-a-glance
Checking the availability of a meeting room becomes ever easier with the colored LED bars.
The bilateral cambered, full-RGB LED bars, allowing for customized color settings, are of high visibility from any angle of view.
Broad Platform Compatibilities
Compatible with Yealink Workspace Management Platform, Microsoft Teams, Zoom and other third-party meeting platforms, the RoomPanel offers experiences of your choice for various meeting scenarios and environments, supporting your existing calendar system.
Simple Deployment, PoE Support

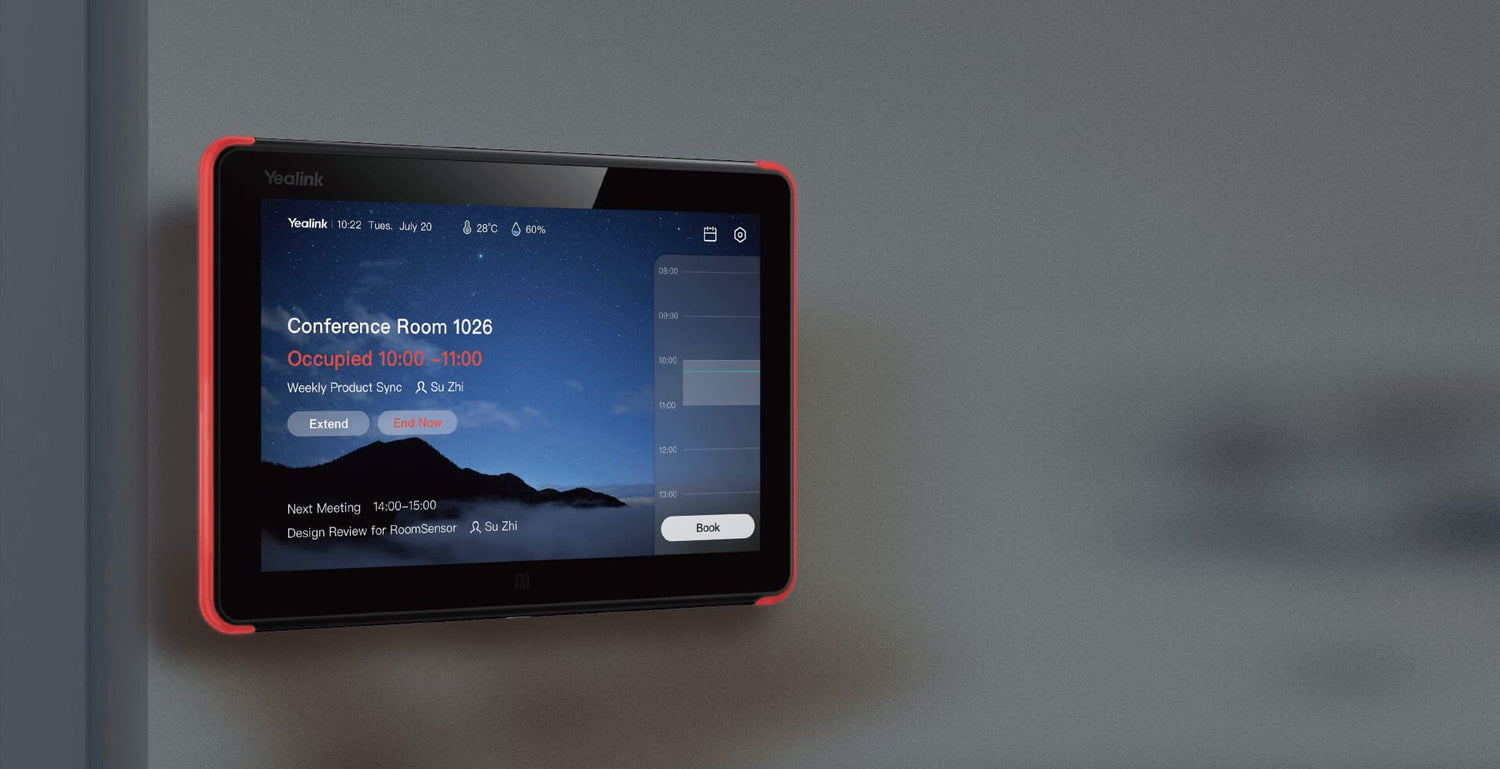

Supporting PoE and DC power supply, the Panel is labor- and time-saving to install with provided mounting brackets on concrete wall/glass/wood and other surfaces, with parallel or tilt angle.
Efficient Remote Management
Working with Yealink Workspace Management Platform and Yealink Management Cloud Services, all the meeting room devices and schedules can be monitored, managed, and analyzed with ease and efficiency.
| Display |
|---|
| Number of simultaneous touchpoints |
10 |
| Touchscreen technology |
Capacitive |
| Touchscreen |
Yes |
| Contrast ratio (typical) |
1000:1 |
| Viewing angle |
80° |
| Aspect ratio |
16:10 |
| Display resolution |
1280 x 800 pixels |
| Display technology |
LCD |
| Display diagonal |
20.3 cm (8") |
| Design |
|---|
| Ambient light sensor |
Yes |
| Housing colour |
Black |
| Audio |
|---|
| Number of microphones |
2 |
| Built-in speaker(s) |
Yes |
| Built-in microphone |
Yes |
| Camera |
|---|
| Built-in camera |
No |
| Network |
|---|
| Near Field Communication (NFC) |
Yes |
| Networking standards |
IEEE 802.3af |
| Ethernet LAN data rates |
10,100 Mbit/s |
| Ethernet LAN |
Yes |
| Bluetooth version |
5.0 |
| Bluetooth |
Yes |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Wi-Fi |
Yes |
| Ports & interfaces |
|---|
| USB port type |
USB Type-C |
| USB port |
Yes |
| Power |
|---|
| Input voltage |
12 V |
| Power source type |
DC, PoE |
| Weight & dimensions |
|---|
| Weight |
530 g |
| Height |
146 mm |
| Width |
209 mm |
