Yealink UVC30 Room webcam 8.51 MP 3840 x 2160 pixels USB 2.0 Black, Silver

Yealink  |  Varenummer: 1306003
Stregkode: 6938818304451,5704174977612

Beskrivelse

UVC30 Room, 1/2.5” CMOS, 8.51M pixel, 1 x 3m USB 2.0, 4K30/1080p30/720p30, 63dB

Smart Framing 4K USB Camera for Meeting Rooms
Yealink UVC30 Room is a premium USB camera designed for small and huddle meeting rooms. Offering sharp images and accurate color reproduction, it provides a vivid face-to-face and remarkable video meeting experience in ultra HD 4K resolution and high frame rates. A wide FOV ensures everyone sitting around the table is visible during a meeting that perfectly suits small and huddle meeting rooms. Based on facial detection, it supports an auto framing feature to accomplish a much more intelligent meeting experience. With a flexible clip, UVC30 Room supports multiple mounting options.

Superb image quality
UVC30 Room delivers a best-class image quality with natural color reproduction, smooth video and detail, endeavoring to optimize the meeting experience for users. UVC30 Room also supports multiple resolutions, including 4K/30FPS, 1080P/30FPS, 720P/30FPS adapt to different displays and applications.

Smooth and correct auto-framing, API for data analysis
Based on face detection, UVC30 Room is capable of an auto-framing feature to frame people in the room smoothly and correctly, bringing a more intelligent meeting experience for users. With API developed, statistic data of people in the meeting room is accessible for further analyzing.

Ultra expansive field of view
With a 120° field of view, everyone sitting in the room can be seen without any position adjustment, perfectly suited for focus and a small meeting room.

Easier and smooth PTZ control
Certified by Microsoft & Zoom, UVC30 Room can achieve an easier and smooth PTZ control on the touch console via Yealink RoomConnect and Zoom Rooms Camera Control. It can perfectly work with all Microsoft Teams Rooms systems and Zoom Rooms systems as a USB camera.

Multiple mounting options

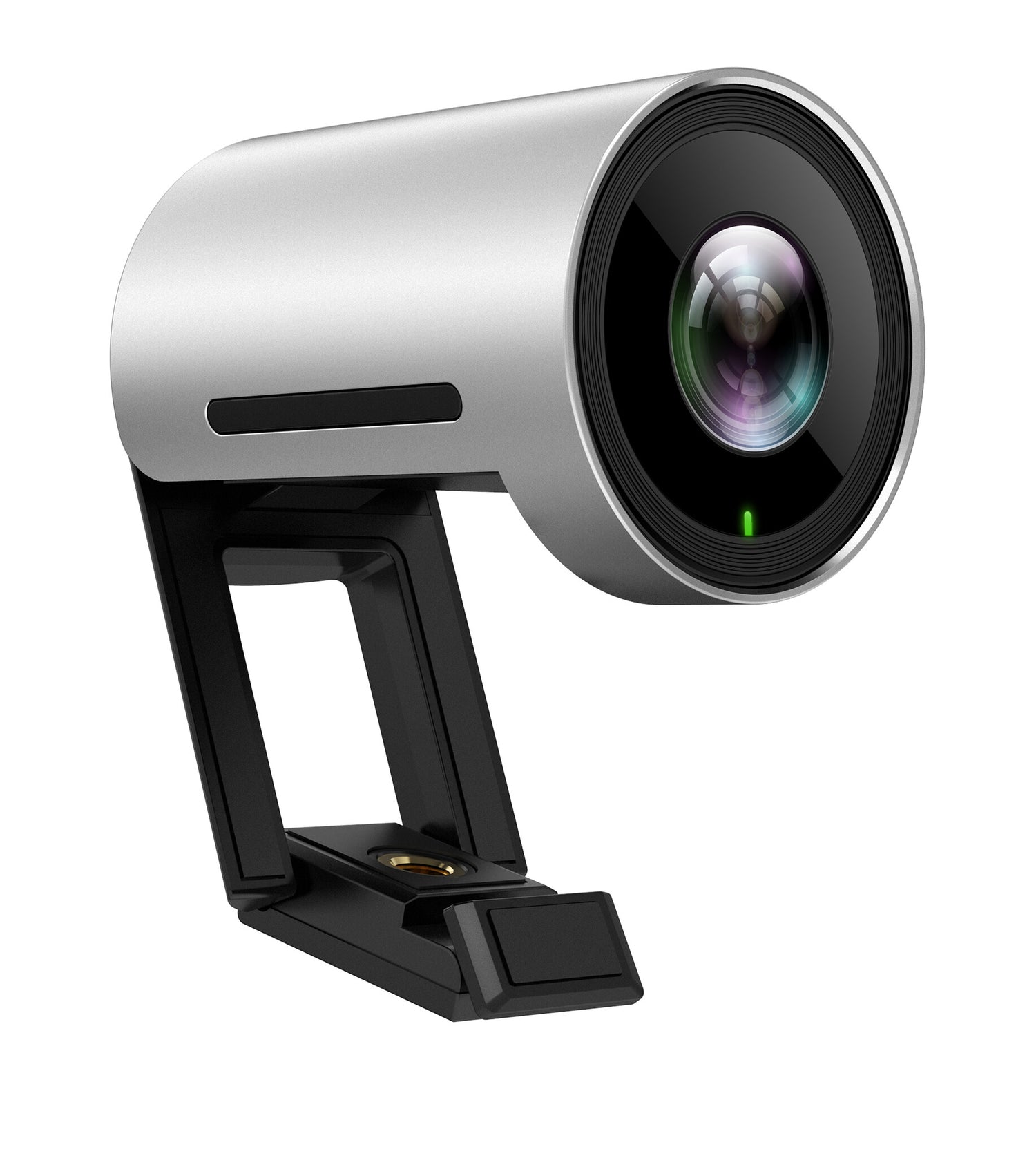

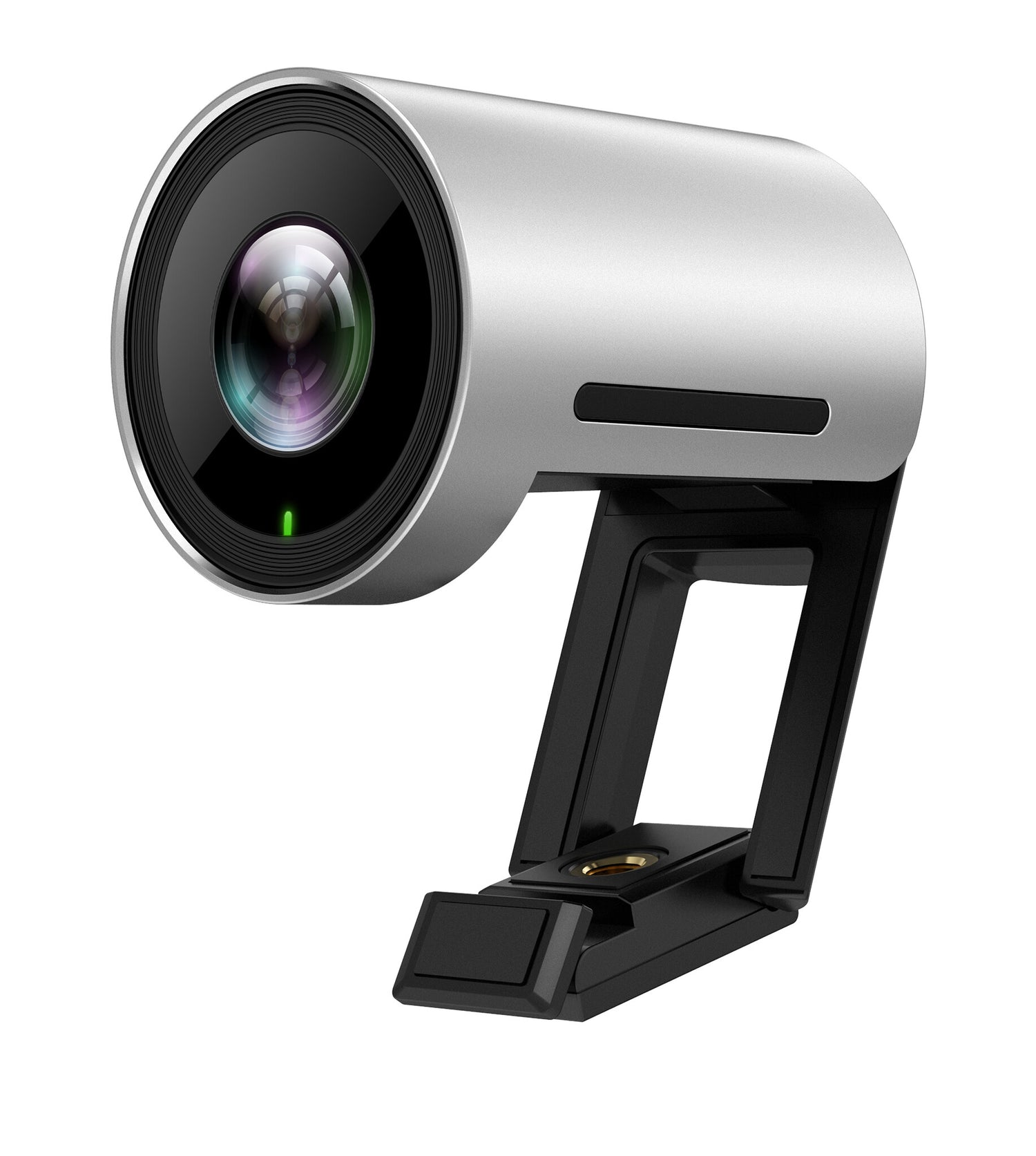

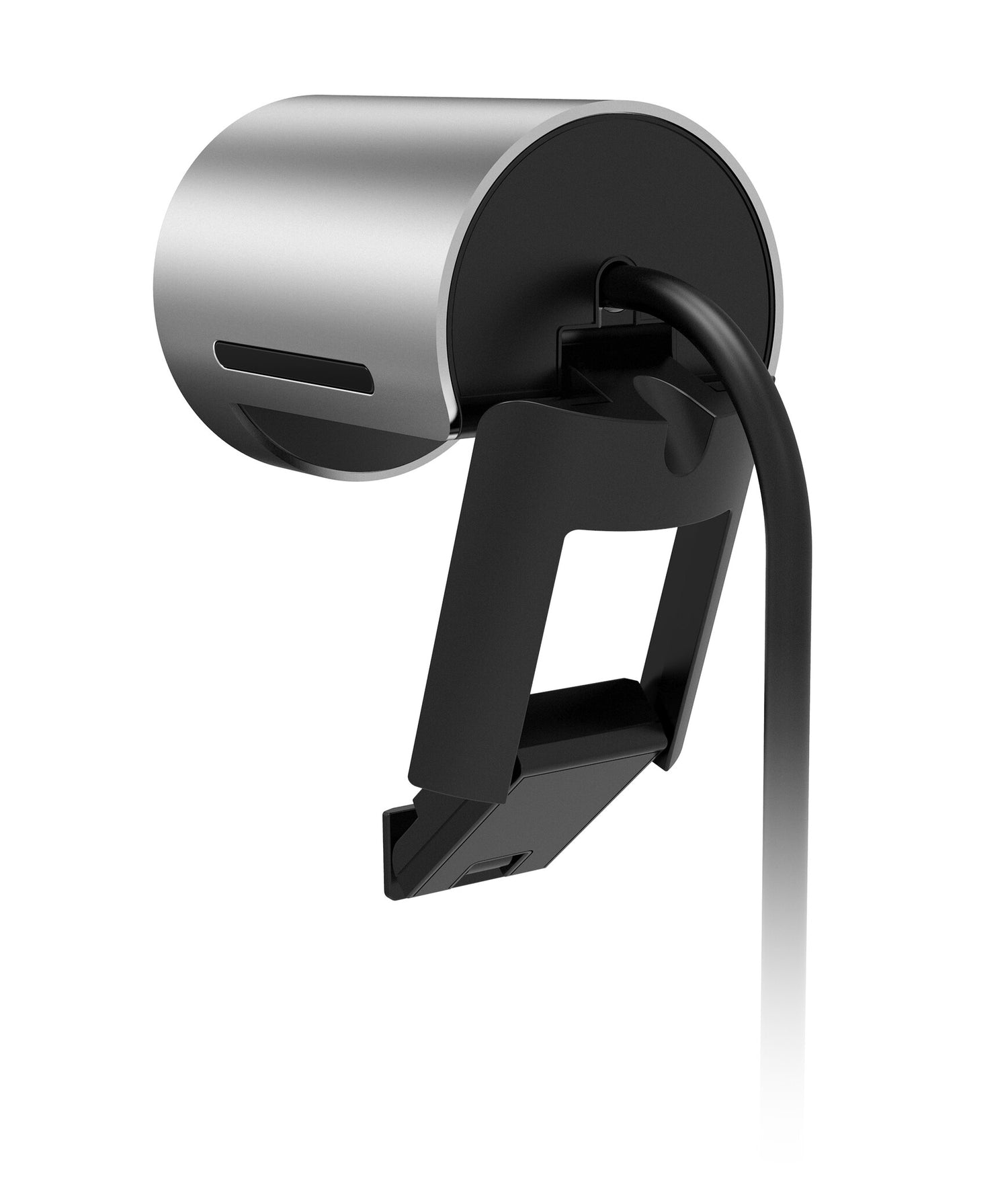

With a retractable clip, you can mount UVC30 wherever it works best, whether on the top of the monitor, under the monitor or on the wall.

Specifikationer

Performance
Minimum illumination 0.1 lx
Diagonal field of view 120°
White balance ATW, Auto, Manual
Signal-to-Noise Ratio (SNR) 63 dB
PTZ control Yes
Camera shutter speed 1/60 ~ 1/10000 s
Digital zoom 3x
Zoom capability Yes
Auto exposure Yes
Supported video modes 720p, 1080p, 2160p
Maximum frame rate 30 fps
Camera HD type Full HD
Maximum video resolution 3840 x 2160 pixels
Megapixel (approx.) 8.51 MP
Design
Cable length 3 m
LED indicators Yes
Optical sensor size 25.4 / 2.5 mm (1 / 2.5")
Sensor type CMOS
Mounting type Clip
Product colour Black, Silver
Interface USB 2.0
Software
Mac operating systems supported Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina
Windows operating systems supported Windows 10, Windows 7
Weight & dimensions
Height 45 mm
Depth 59 mm
Width 45 mm
Packaging data
Quantity 1
Packaging content
Manual Yes
Quick installation guide Yes
User guide Yes
Logistics data
Harmonized System (HS) code 85258900
