Yealink UVC84-BYOD-H00 video conferencing system Ethernet LAN Group video conferencing system

Yealink  |  Varenummer: UVC84-BYOD-H00

Beskrivelse

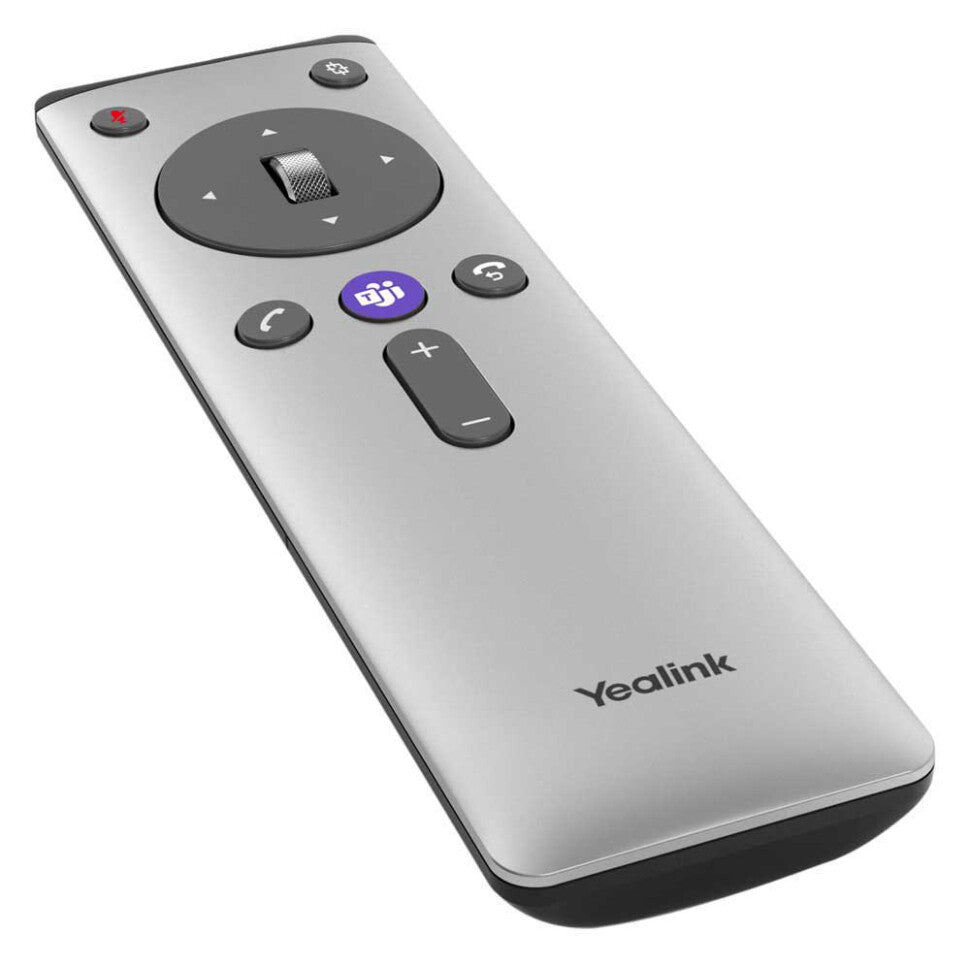

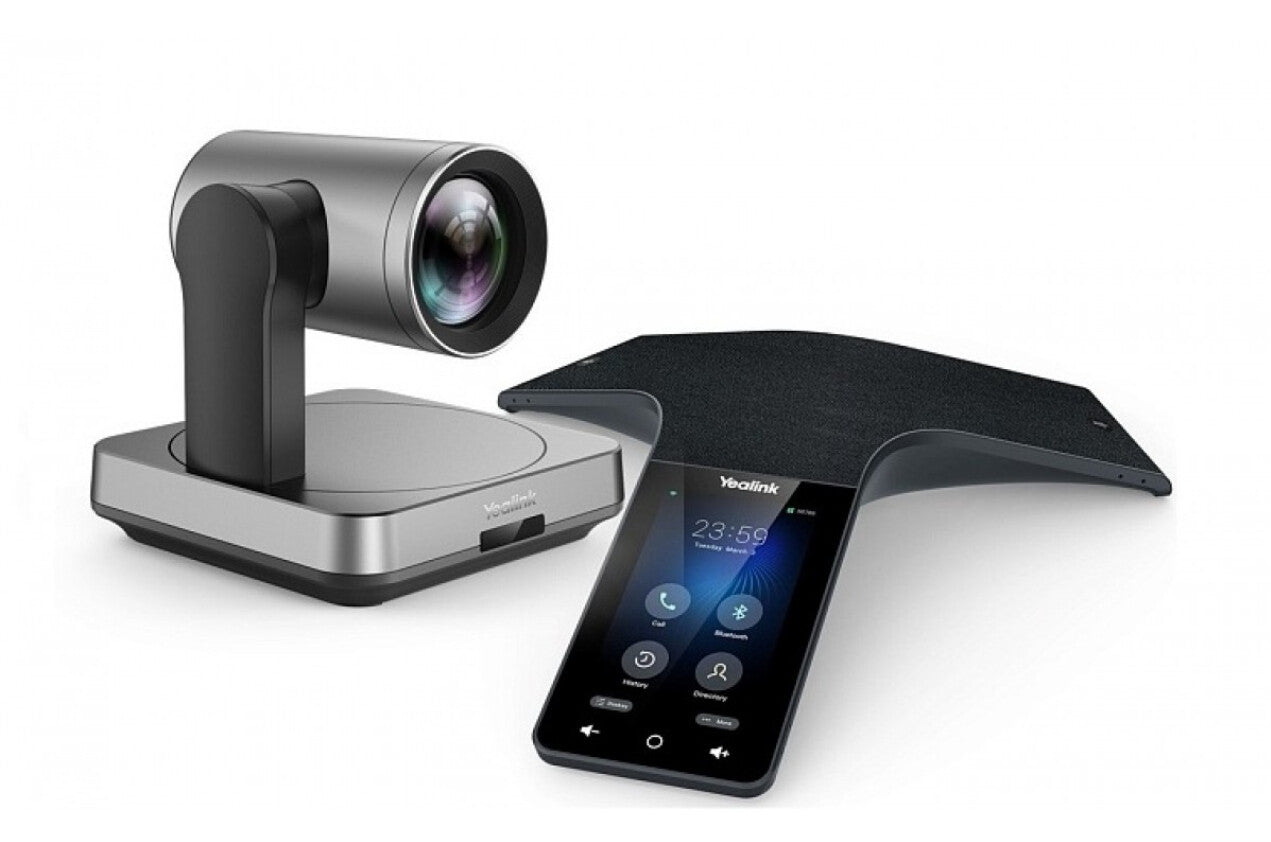

UVC84 Camera + CP965 Speakerphone + VCR20 Remote Control

UVC84-BYOD
Meeting Kit
for Medium and Large Rooms


BRING YOUR OWN DEVICE
TAKE UC ANYWHERE


Yealink UVC84-BYOD meeting kit is dedicated for medium and large rooms with UVC84 4K camera, audio devices and BYOD box for the complete meetings with any UC platforms. Users can enjoy the easy plug-and-play installation, excellent video and audio experience with the cost-effective solution.

ONE CABLE, PLUG-AND-PLAY
EASY AND EFFECTIVE


To deploy the UVC84-BYOD meeting kit, you only need to connect the UVC84 camera and the audio device like VCM34 microphone or the MSpeech microphone in the meeting room, and plug the Type-C cable into your laptop to start meetings. The Plug-and-play feature ensures your installation easily without adding extra drivers, saving time for effective collaboration.

4K VIDEO COVERING MEDIUM MEETING SPACES

Featured 4K sensor and 36x HD zoom, the UVC84 camera achieves a gorgeous video experience perfectly for medium and large rooms.
The Auto Framing enables the UVC84 to recognize attendees and frame everyone automatically in the most appropriate view in rooms of any size.

ENJOY PERFECT AUDIO EXPERIENCE

Perfectly working with the UVC84 camera, VCM34 array microphone supports a 20ft (6-meter) and 360° voice pickup range and works with the Yealink Soundbar together to guarantee a high-quality audio solution. Users can choose the MSpeech USB speakerphone as well with the HD full-duplex audio experience for medium meeting spaces.

Specifikationer

Performance
Tilt angle range -90 - 40°
Pan range -100 - 100°
Product colour Black
Bluetooth Yes
Number of cameras 1
Product type Group video conferencing system
Video
HD-Ready Yes
HD type 4K Ultra HD
Audio
Voice codecs G.722, G.722.1C, OPUS
Audio system full duplex Yes
Number of speakers 1
Built-in speaker(s) No
Ports & interfaces
AUX in (speaker) Yes
Line-out Yes
Network
Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Wi-Fi Yes
Ethernet LAN Yes
Camera
Minimum illumination 0.1 lx
Aperture range (F-F) 1.6 - 2.8
Vertical field of view 45°
Horizontal field of view 73°
Field of view (FOV) angle 80°
Focal length range 3.9 - 46.8 mm
Digital zoom 3x
Optical zoom 12x
Camera type Single camera
Microphone
Number of microphone arrays 1
Number of microphones 3
Microphone mute Yes
Microphone direction type Omnidirectional
Microphone frequency 100 - 8000 Hz
Microphone sensitivity -38 dB
Features
Cable lock slot Yes
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage relative humidity (H-H) 10 - 95%
Power
DC input voltage 48 V
Current 0.7 A
AC input voltage 100 - 240 V
Power source type AC
Weight & dimensions
Camera weight 1.15 kg
Camera dimensions (WxDxH) 155 x 155 x 182 mm
Packaging content
Packaging content UVC84 CameraVCR20 Remote ControlCP965 IP Conference Phone
Remote control included Yes
Quick start guide Yes
Camera included Yes
Speaker included Yes
AC adapter included Yes
