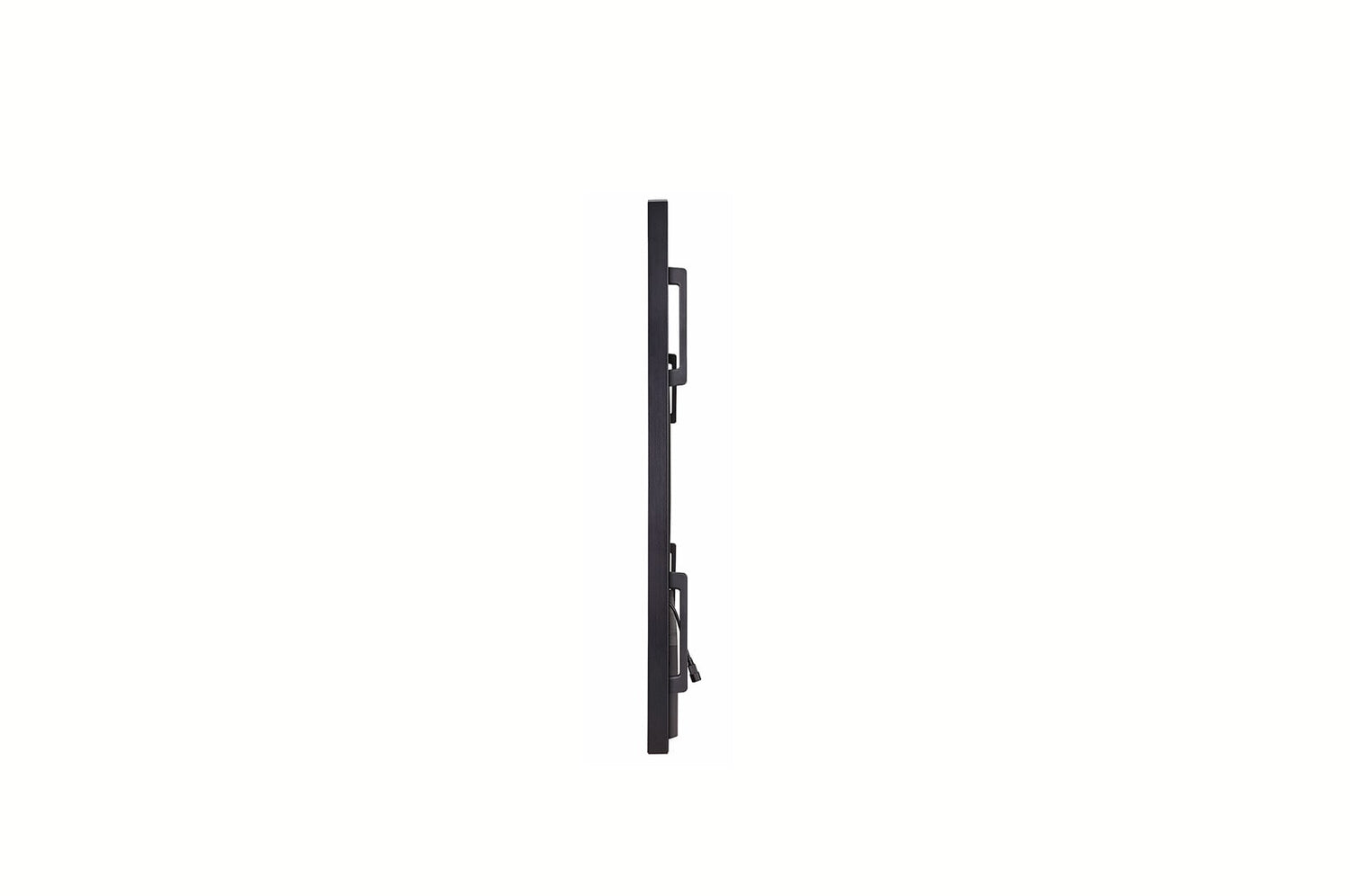

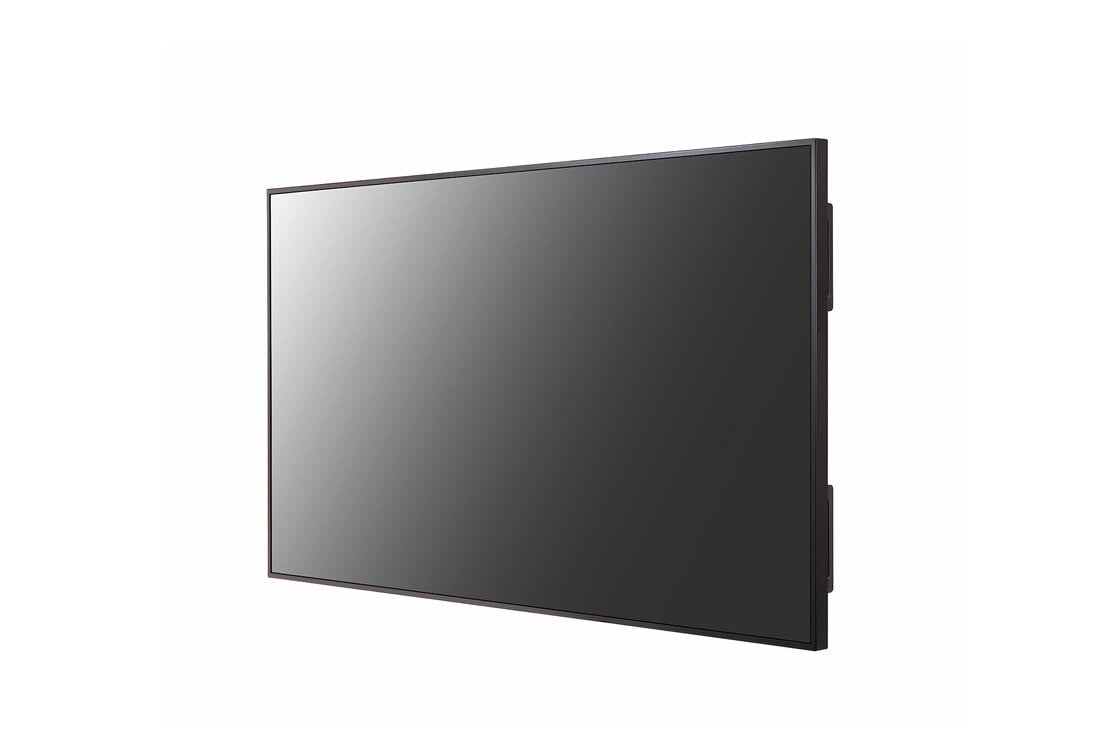

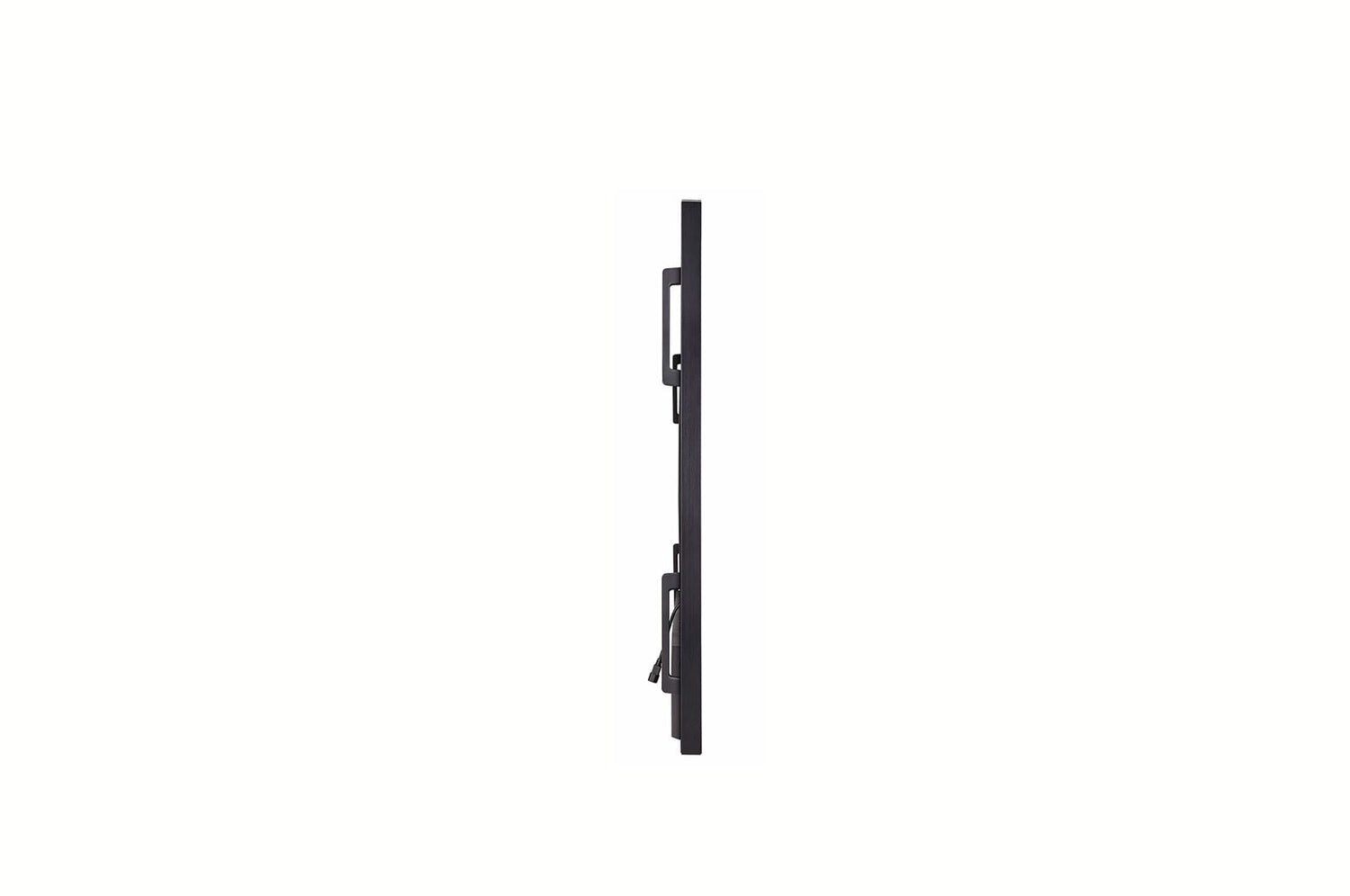

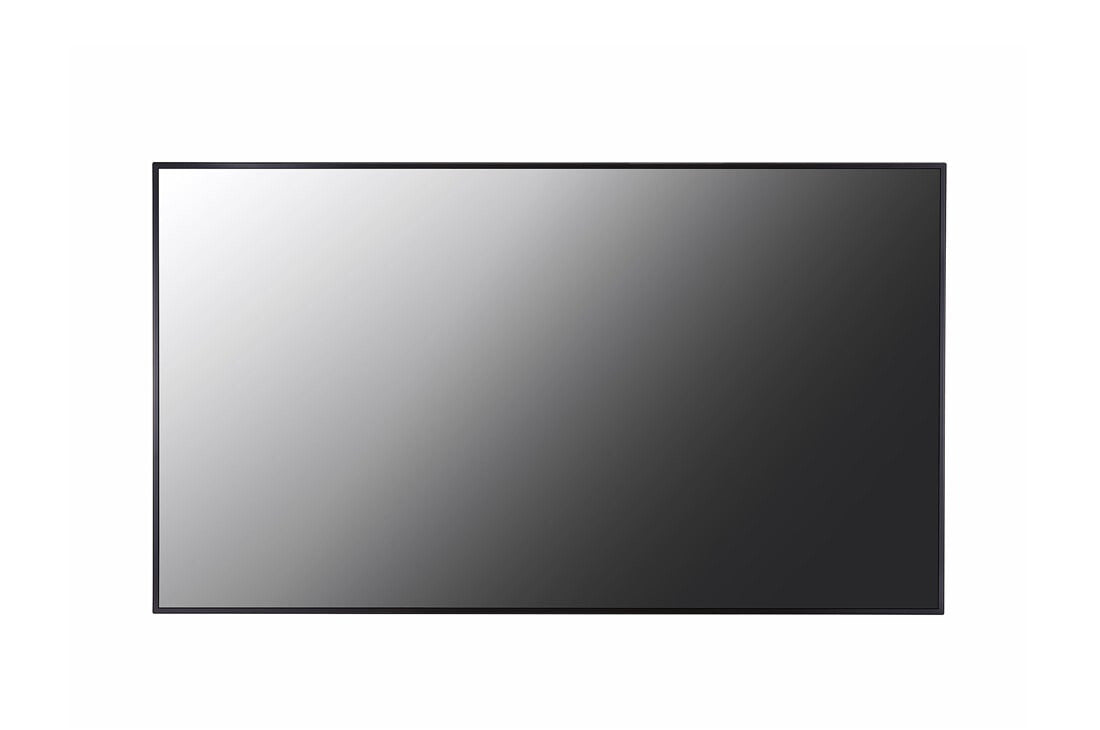

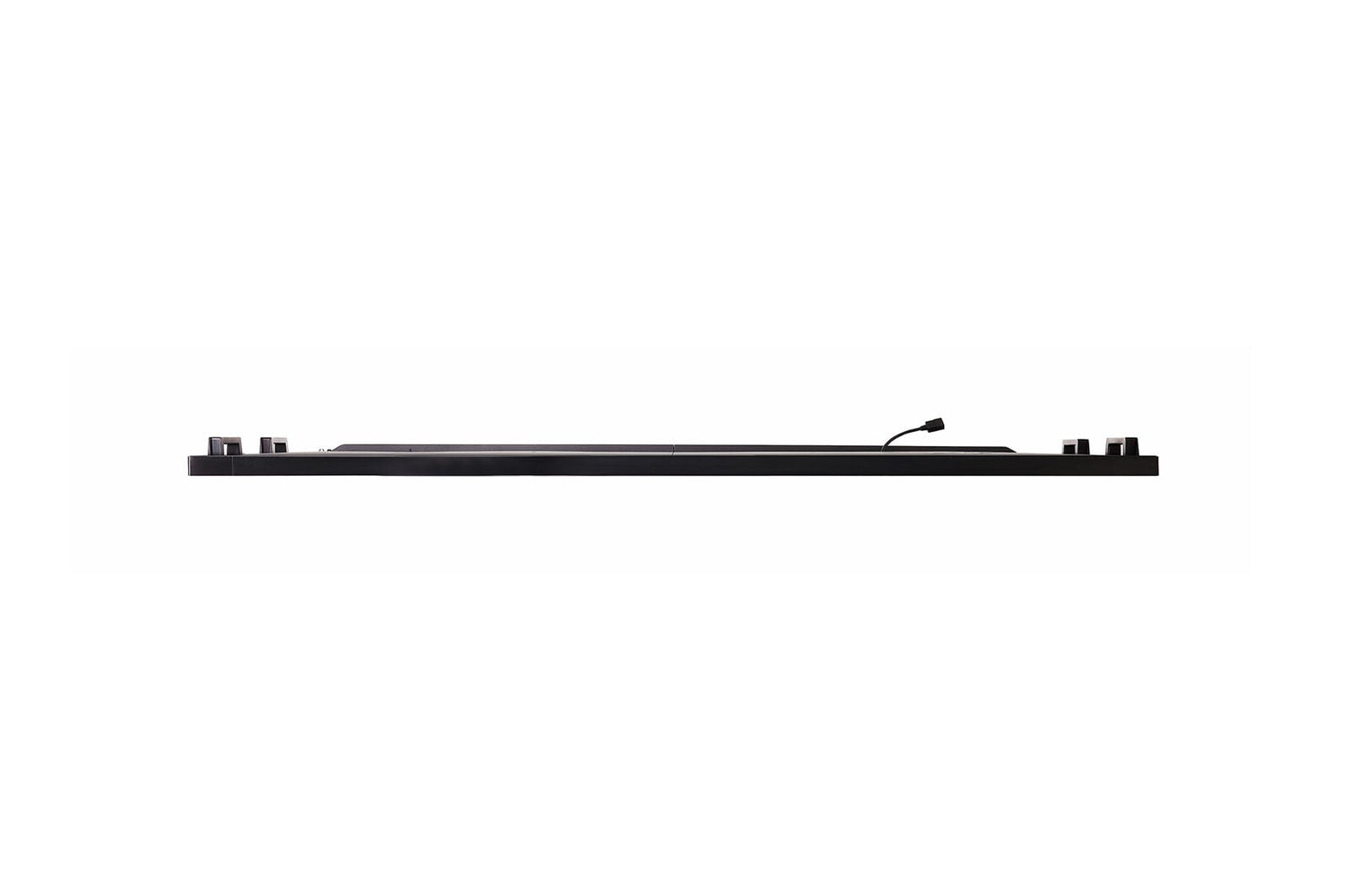

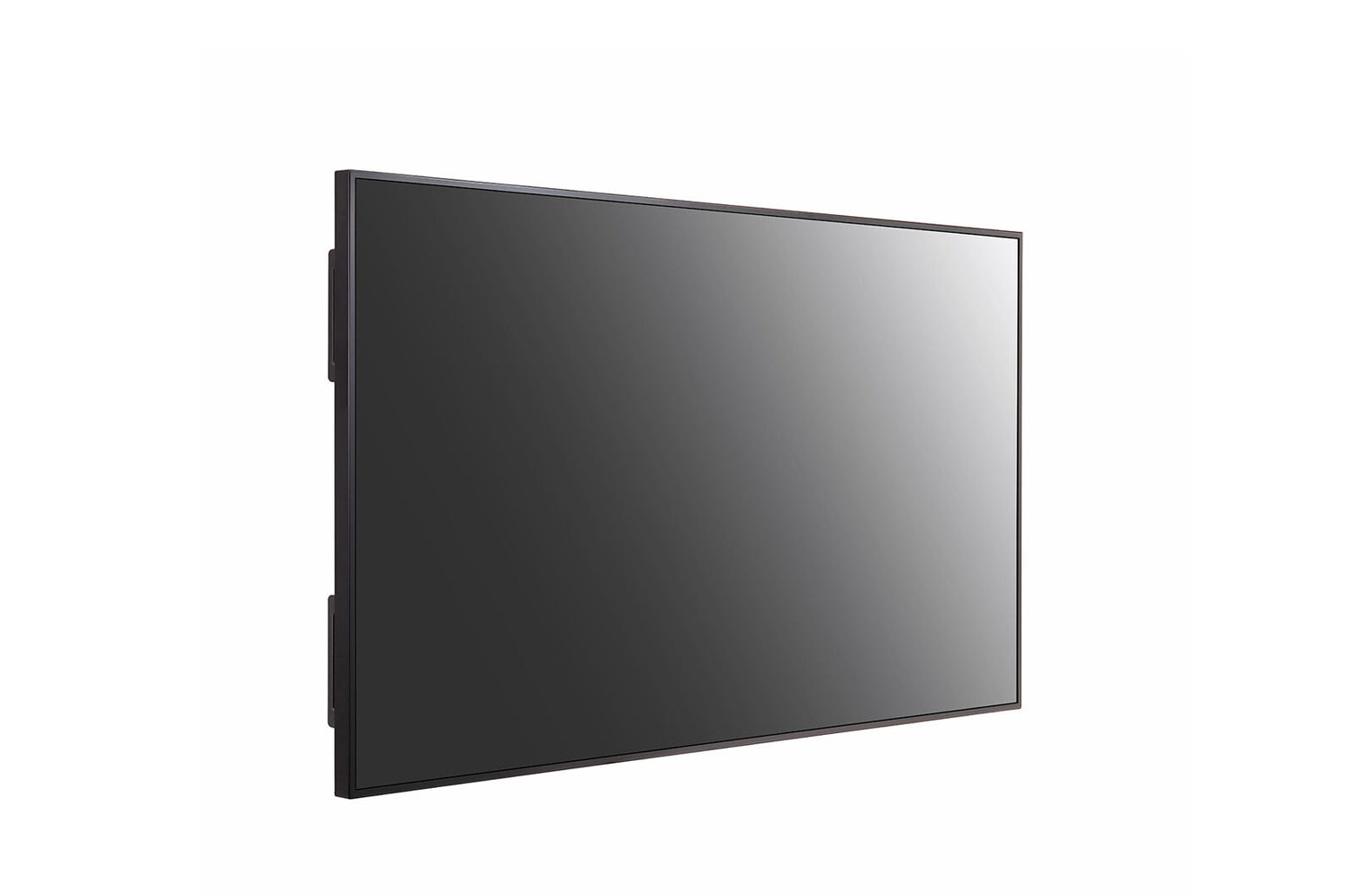

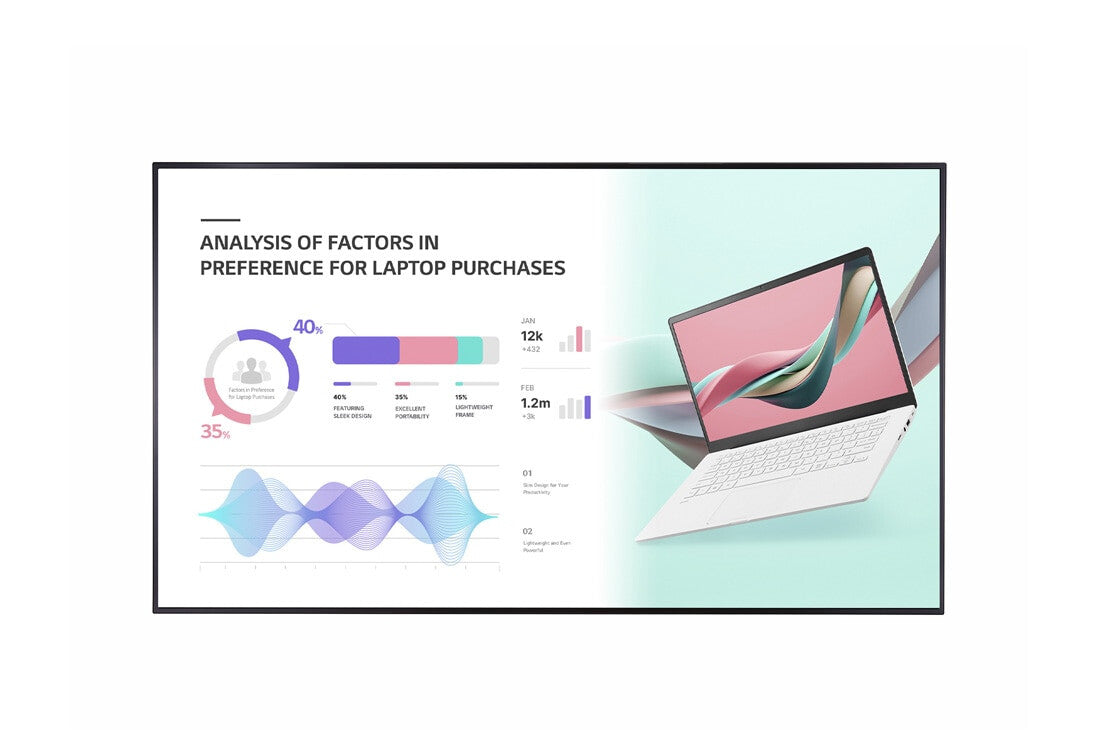

LG 86UH5J-H Signage Display Digital signage flat panel 2.18 m (86") IPS Wi-Fi 500 cd/m² 4K Ultra HD Black WebOS 24/7
Vælg størrelse
Beskrivelse
Beskrivelse
Proper Display Brightness
With a recommend brightness of 500 cd/m² for an indoor display, the UH5J-H series clearly deliver content and attract public attention, making it the most suitable display for marketing in meeting rooms, airports, retail, shopping malls etc.
High-Performance with webOS
LG webOS platform enhances user convenience with intuitive GUI and simple app development tools.
Conformal Coating
In various places the UH5J-H series is unable to avoid exposure to environments containing dust, humidity, etc. which may hamper performance over time. The conformal coating on power board reduces these risks by protecting UH5J-H series from salt, dust, iron powder, humidity, etc.
Mobile Content Management
You can create a store profile and get template recommendations using the Promota* app. Users can customize templates for all industries and easily create and manage content not only on PCs but also on mobile devices.
Specifikationer
Specifikationer
| Display | |
|---|---|
| Display diagonal | 2.18 m (86") |
| Display technology | IPS |
| LED backlighting type | Edge-LED |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 500 cd/m² |
| HD type | 4K Ultra HD |
| Touchscreen | No |
| Native aspect ratio | 16:9 |
| Response time | 8 ms |
| Contrast ratio (typical) | 1100:1 |
| Contrast ratio (dynamic) | 1000000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 1.07 billion colours |
| Panel life | 50000 h |
| Native refresh rate | 120 Hz |
| Haze rate | 28% |
| RGB colour space | NTSC |
| Ports & interfaces | |
|---|---|
| HDMI ports quantity | 3 |
| HDMI version | 2.2/1.4 |
| DVI port | Yes |
| DVI-D ports quantity | 1 |
| DisplayPorts quantity | 1 |
| USB port | Yes |
| USB ports quantity | 1 |
| USB version | 2.0 |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | Yes |
| Audio (L/R) in | 1 |
| Audio (L/R) out | 1 |
| RS-232C | Yes |
| Infrared data port | Yes |
| Remote (IR) input | 1 |
| Audio | |
|---|---|
| Built-in speaker(s) | Yes |
| Design | |
|---|---|
| Product design | Digital signage flat panel |
| Product colour | Black |
| Placement supported | Indoor |
| Orientation | Horizontal/Vertical |
| VESA mounting | Yes |
| Panel mounting interface | 600 x 400 mm |
| Bezel width (bottom) | 1.43 cm |
| Bezel width (side) | 1.43 cm |
| Bezel width (top) | 1.43 cm |
| Performance | |
|---|---|
| Purpose | Commercial |
| On Screen Display (OSD) languages | Arabic, Simplified Chinese, Traditional Chinese, Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Greek, Italian, Japanese, Korean, Norwegian, Portuguese, Russian, Swedish, Turkish |
| On Screen Display (OSD) | Yes |
| Ambient light sensor | Yes |
| Operating hours (hours/days) | 24/7 |
| HDCP version | 1.4/2.2 |
| HDCP | Yes |
| International Protection (IP) code | IP5X |
| Power | |
|---|---|
| Power consumption (typical) | 215 W |
| Power consumption (sleep) | 0.5 W |
| Power consumption (off) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50-60 Hz |
| Heat dissipation | 733.69 BTU/h |
| Computer system | |
|---|---|
| Internal memory | 16 GB |
| Operating system installed | WebOS |
| Weight & dimensions | |
|---|---|
| Display width | 1926.2 mm |
| Display depth | 60.6 mm |
| Display height | 1097.2 mm |
| Display weight | 49 kg |
| Packaging data | |
|---|---|
| Package width | 2073 mm |
| Package depth | 285 mm |
| Package height | 1250 mm |
| Package weight | 72.5 kg |
| Packaging content | |
|---|---|
| Remote control included | Yes |
| Batteries included | Yes |
| Cables included | AC |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Features | |
|---|---|
| Heat dissipation (max) | 955.5 BTU/h |
