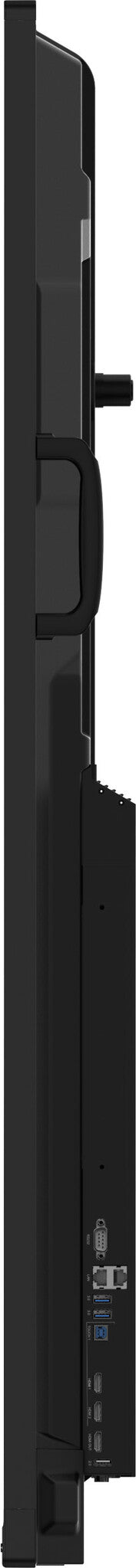

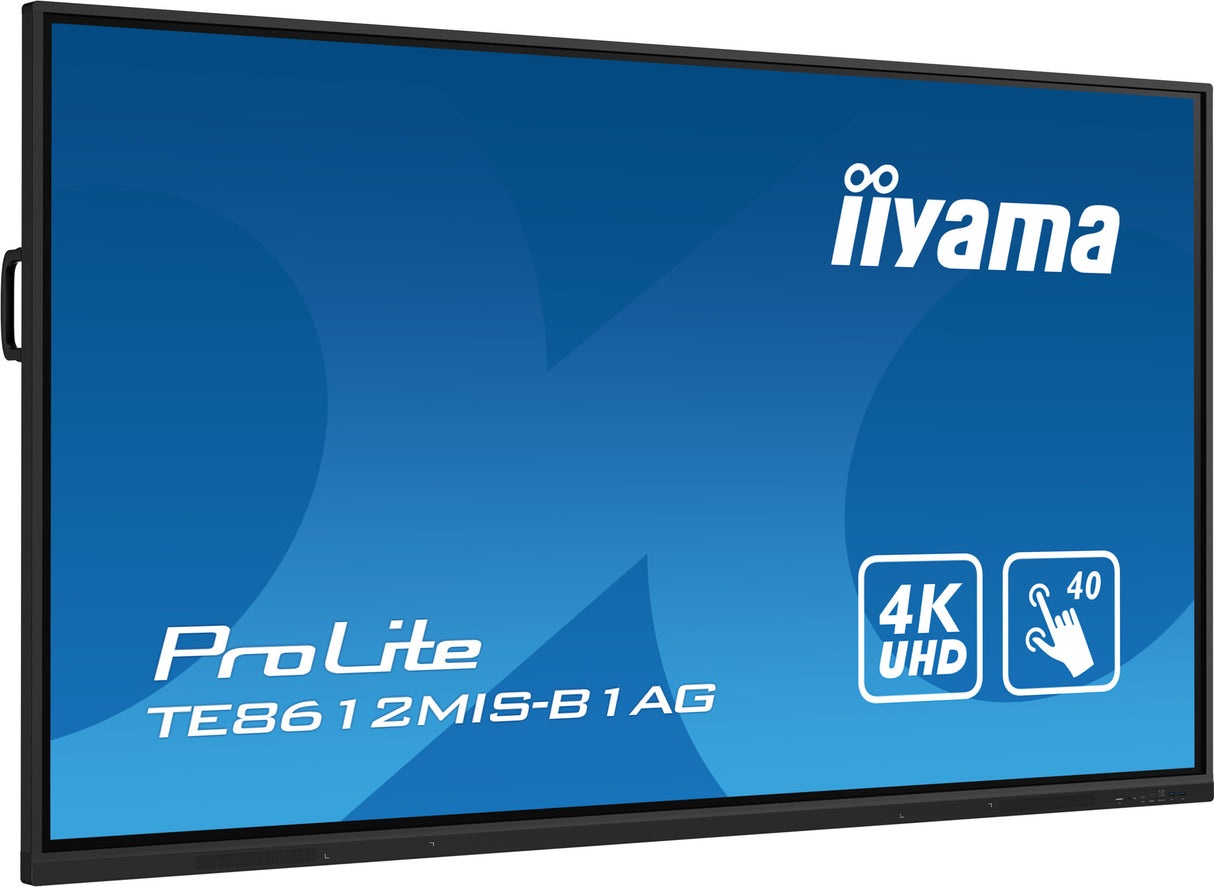

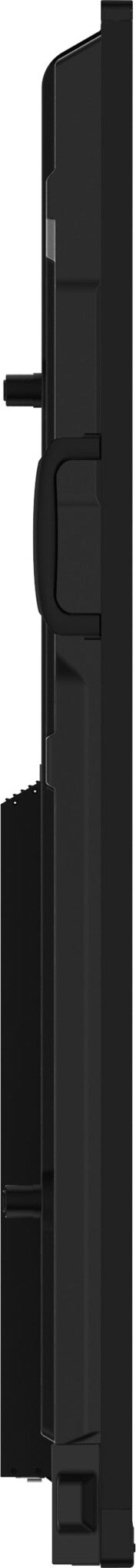

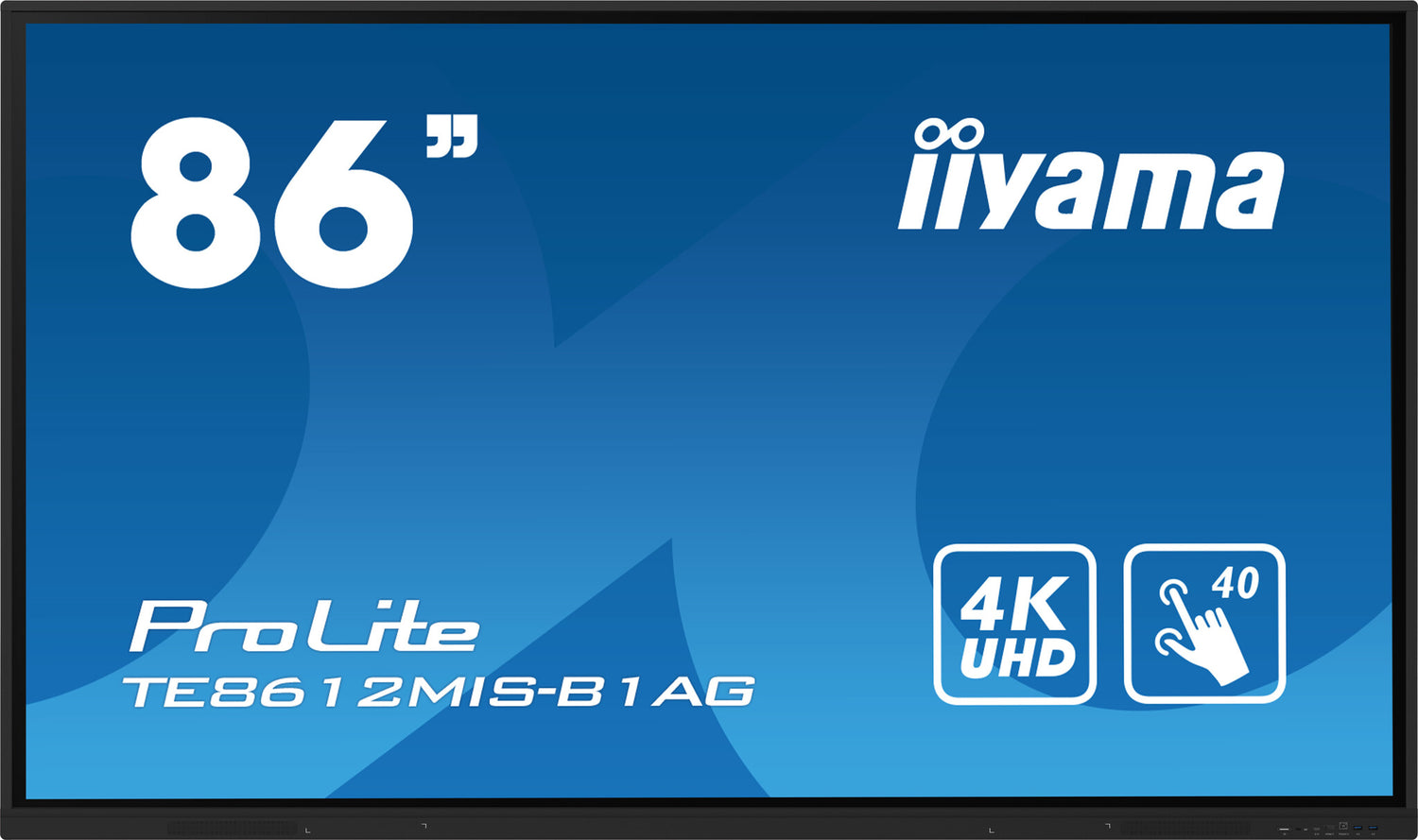

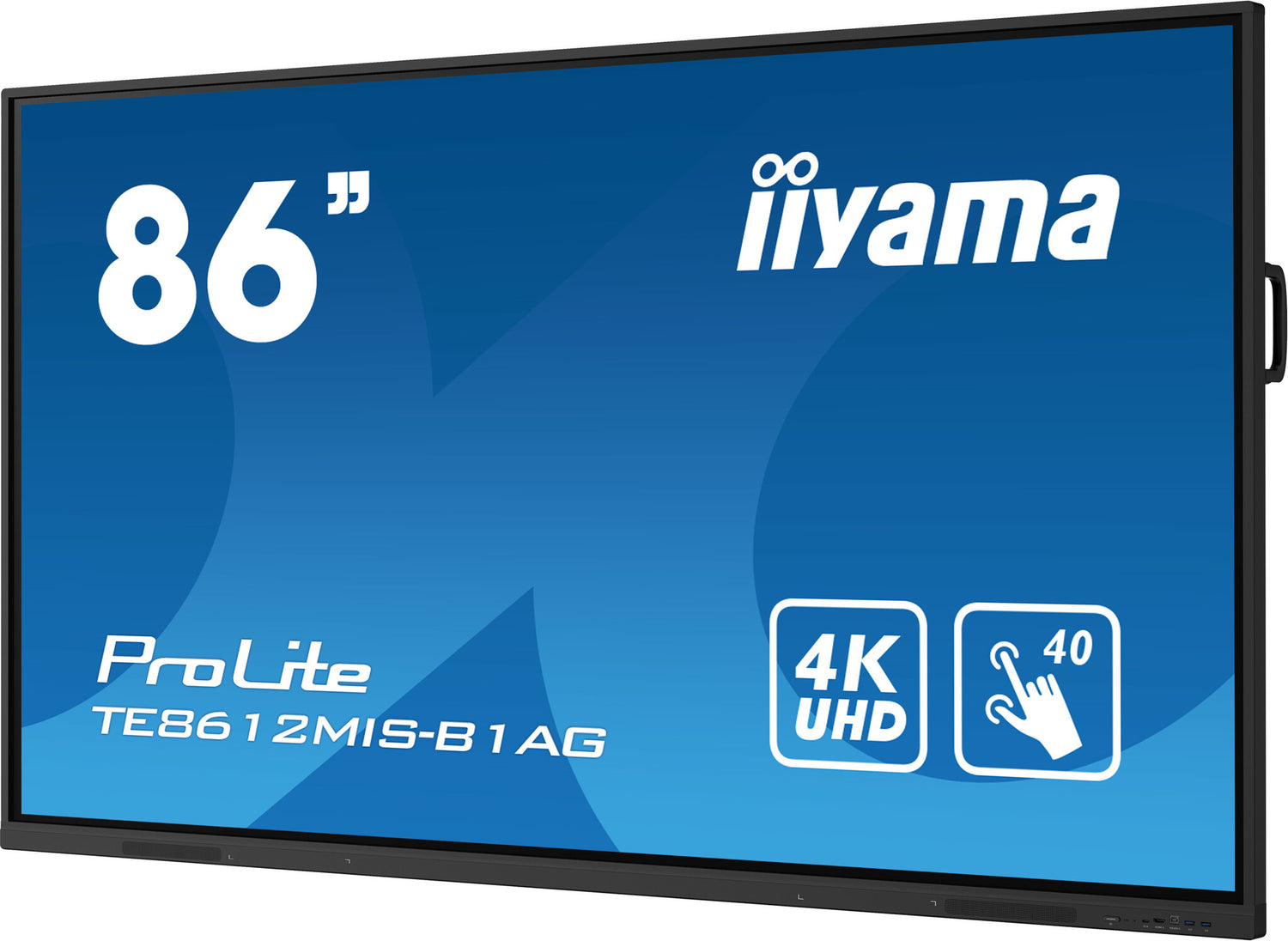

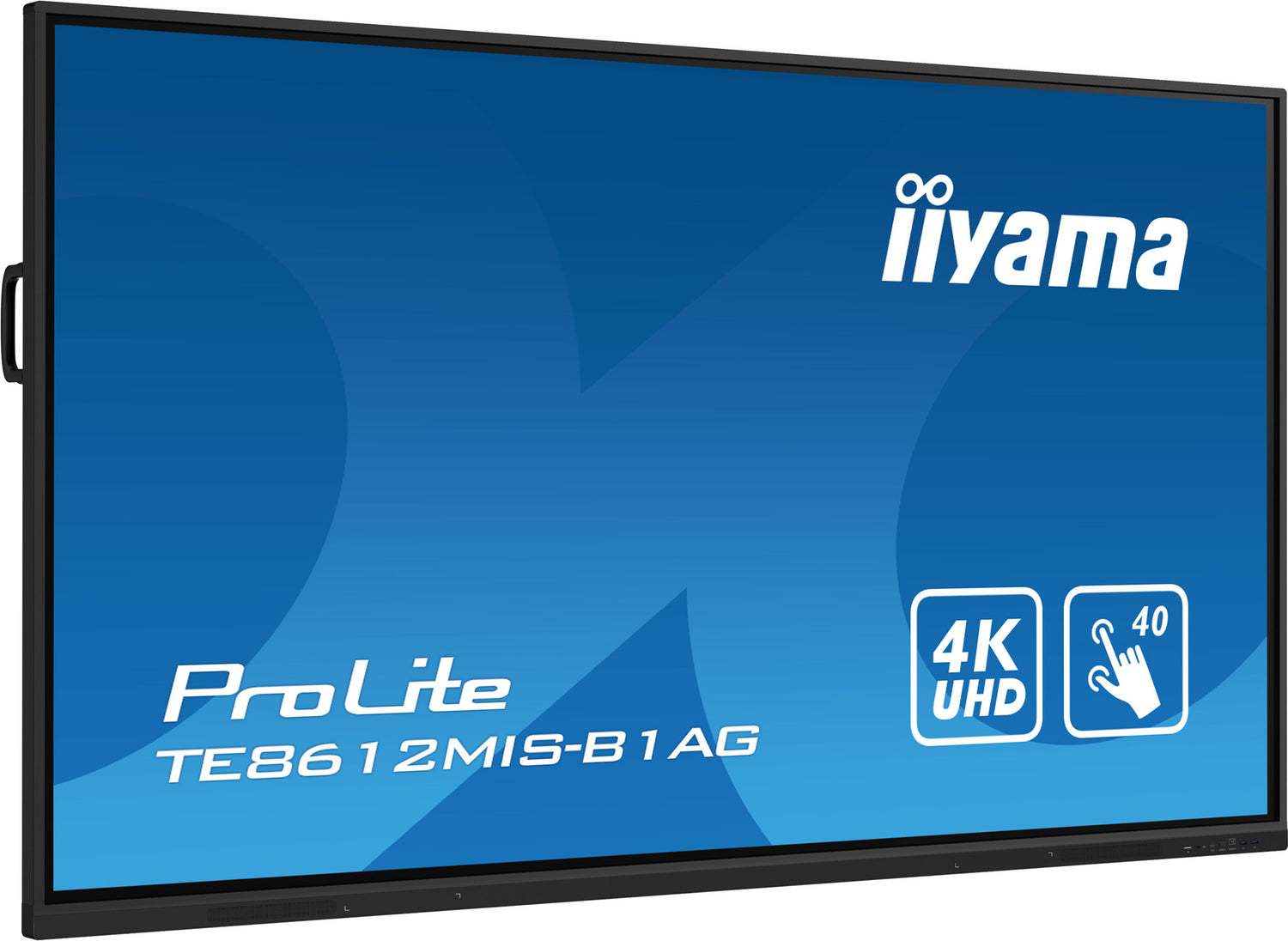

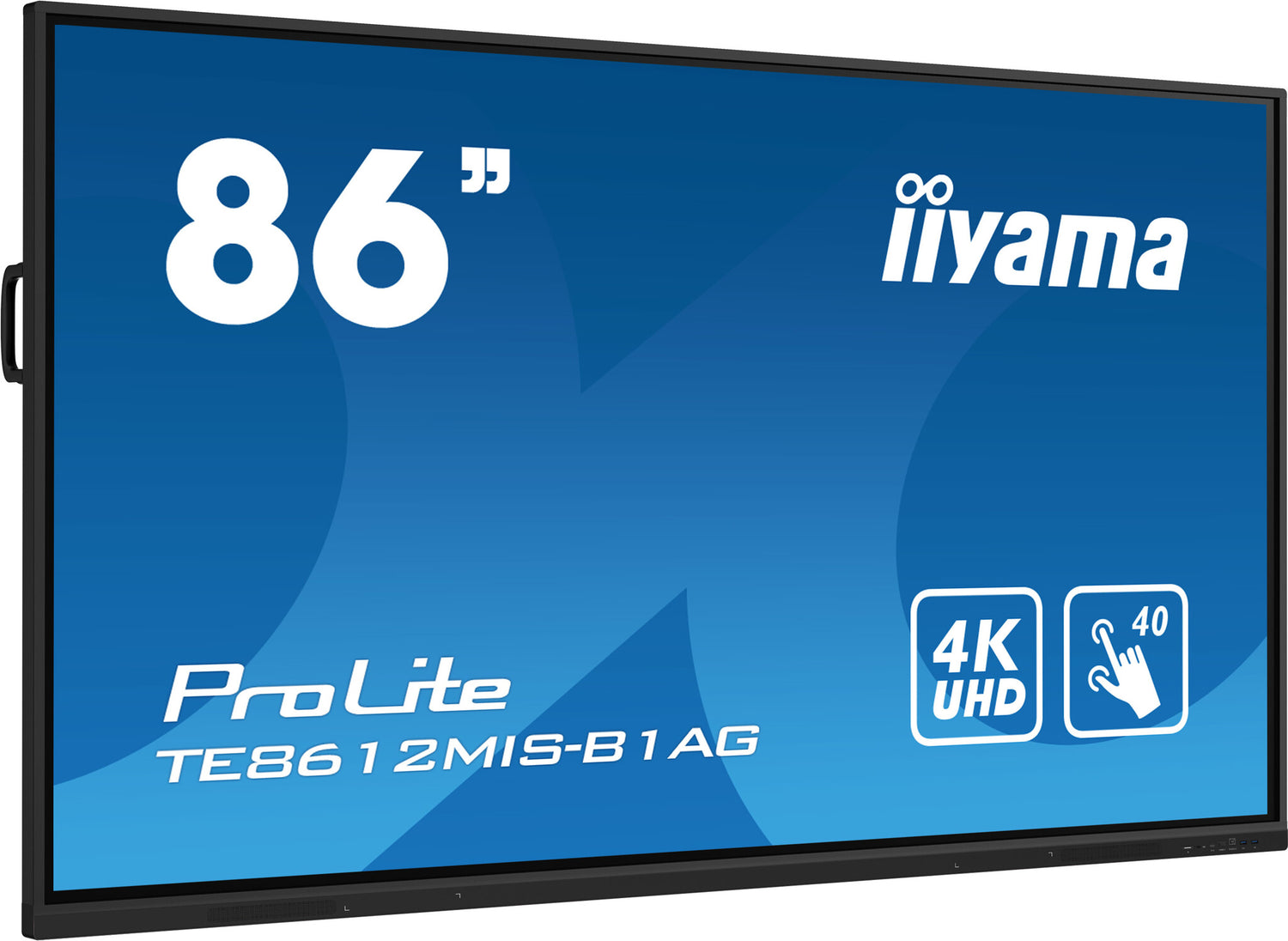

iiyama PROLITE Digital signage flat panel 2.18 m (86") LED Wi-Fi 400 cd/m² 4K Ultra HD Black Touchscreen Built-in processor Android 11 16/7

iiyama  |  Varenummer: TE8612MIS-B1AG
Stregkode: 4948570121854

Vælg størrelse

Beskrivelse

86'' 3840 x 2160 IPS, Direct LED, 400 cd/m², 1200:1, PureTouch-IR, VGA, HDMI, USB, RS-232c, RJ45, IR

Collaboration for education and enterprise made simple. The TE8612MIS-B1AG from iiyama inspires all possibilities in all stages for education, start-up and large-scale businesses. With our hybrid interactive solution, you can smoothly annotate in 4K and control any content on the display from any source.

This PureTouch-IR 40-point Touchscreen with iiWare 10 (Android 11 OS) features Note, Browser, Cloud Drive and the option for you to sideload relevant apps you require for your organisation. It comes with dual functionTouch pens, and you can easily save your notes and on-screen content directly to a USB device, 32GB internal memory or a selected cloud drive. Including an additional USB-C connection, the display supports the latest in video, audio and Touch signal via a single port and even charge your device with 65W power delivery.

With a 4K UHD resolution (3840x2160) and 400cd/m2 brightness this 86” IPS LCD screen provides vibrant, detailed, and high-quality images from anywhere in the class or meeting room. The anti-glare coating drastically reduces ambient reflection in high-brightness environments without compromising the sharpness and clarity of the image.

You can be sure that no matter what your Interactive aspiration, iiyama has the simplified solution just for you. Boasting a new 4K Interface with User Profiles for simple login and access to your very own bespoke menu and Cloud Drives, the TE8612MIS-B1AG becomes a highly personalised device within a busy hybrid environment for multiple users.

Share, stream and edit content from any device directly on screen and transform your team meetings or lessons into an easy, fast and seamless interactive session with the included WiFi module (OWM002), ScreenSharePro and EShare app.

Specifikationer

Display
Haze rate 28%
Surface hardness 7H
Horizontal scan range 30 - 135 kHz
Panel life 50000 h
Number of displays 1
Display diagonal (metric) 217.4 cm
Active display area (W x H) 1895 x 1066 mm
Pixel pitch 0.4935 x 0.4935 mm
Display number of colours 1.073 billion colours
Viewing angle, vertical 178°
Viewing angle, horizontal 178°
Contrast ratio (typical) 1200:1
Response time 8 ms
Native aspect ratio 16:9
Number of simultaneous touchpoints 40
Touchscreen technology Infrared
Touchscreen Yes
HD type 4K Ultra HD
Display brightness 400 cd/m²
Display resolution 3840 x 2160 pixels
LED backlighting type Direct-LED
Panel type IPS
Display technology LED
Display diagonal 2.18 m (86")

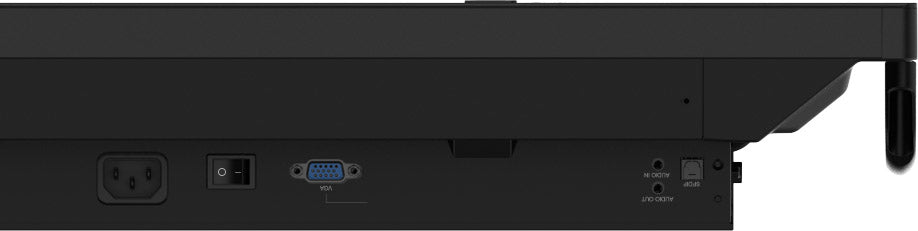

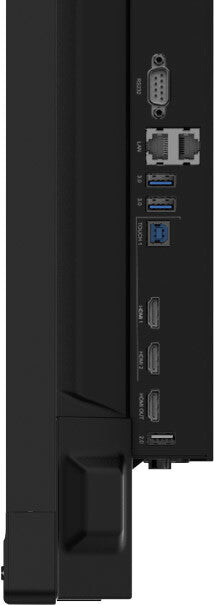

Ports & interfaces
Remote (IR) input 1
RS-232C Yes
Wi-Fi Yes
Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Ethernet LAN (RJ-45) ports 2
Ethernet LAN Yes
USB connector type USB Type-C
USB version 2.0/3.2 Gen 1 (3.1 Gen 1)
USB ports quantity 6
USB port Yes
VGA (D-Sub) input ports 1
HDMI output ports quantity 1
HDMI input ports quantity 3
HDMI version 2.0
HDMI ports quantity 4
Audio
RMS rated power 32 W
Number of built-in speakers 2
Built-in speaker(s) Yes
Design
Positioning accuracy 1.5 mm
Bezel width (top) 1.65 cm
Bezel width (side) 1.65 cm
Bezel width (bottom) 3.1 cm

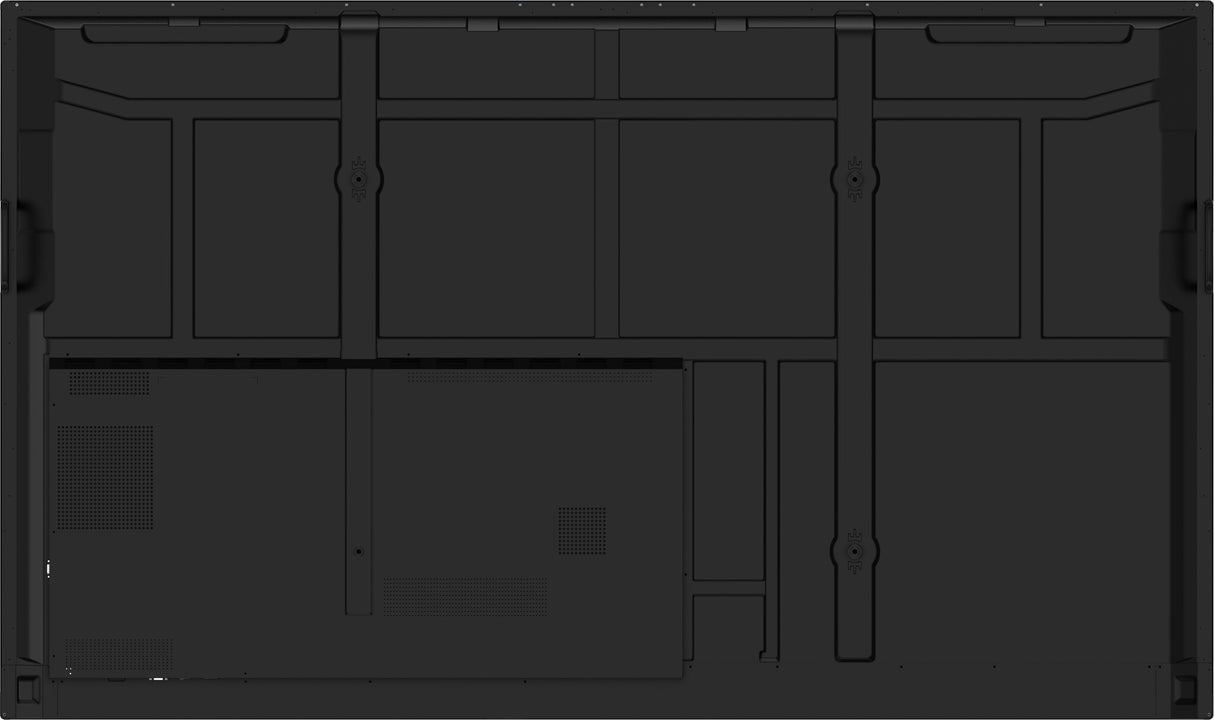

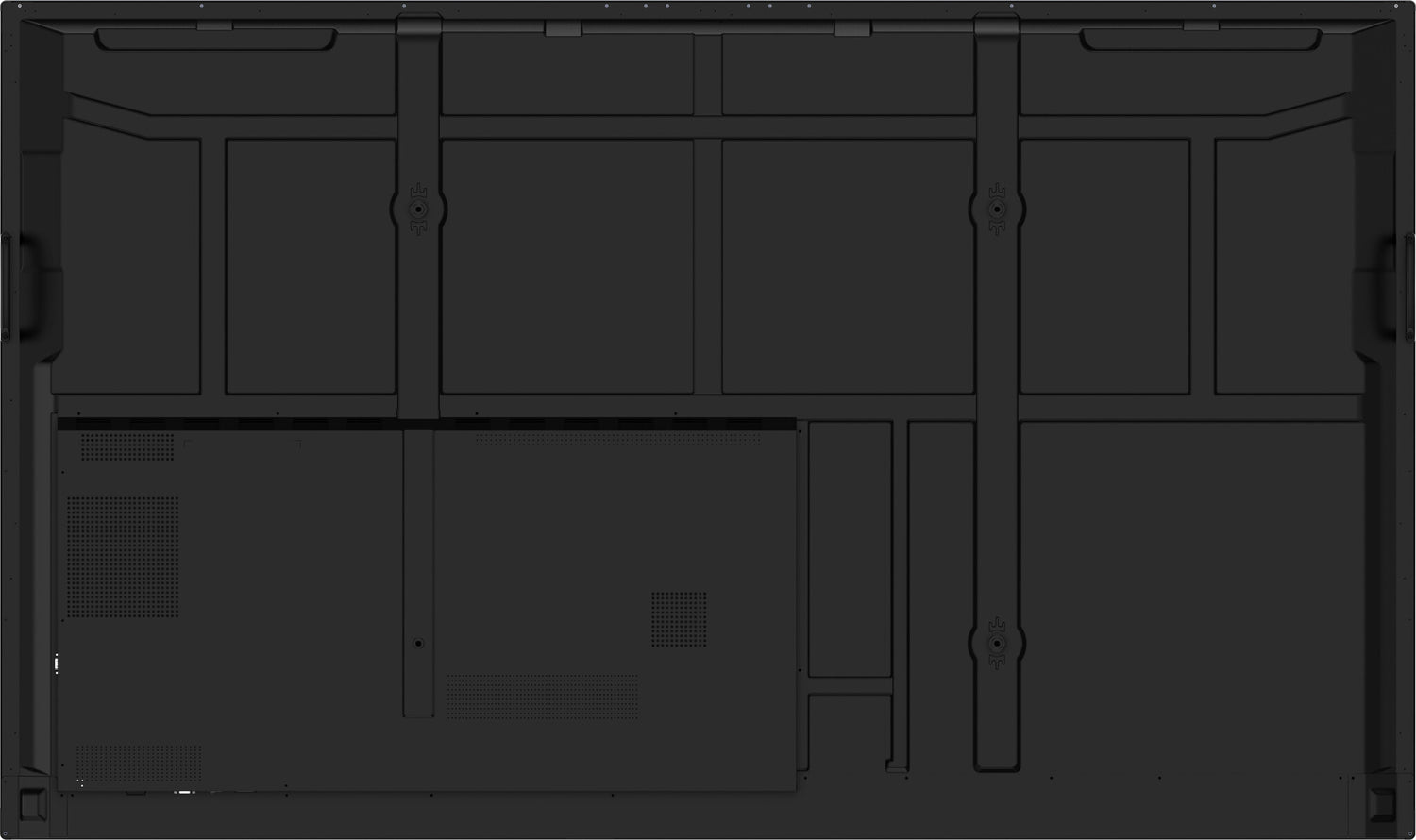

Panel mounting interface 800 x 600 mm
VESA mounting Yes
Orientation Horizontal
Placement supported Indoor
Product colour Black
Product design Digital signage flat panel
Performance
Mean time between failures (MTBF) 50000 h
HDCP Yes
HDCP version 2.2
Operating hours (hours/days) 16/7
On Screen Display (OSD) Yes
Number of OSD languages 9
On Screen Display (OSD) languages Czech, German, Dutch, English, Spanish, French, Italian, Polish, Russian
Purpose Commercial
Power
AC input frequency 50 - 60 Hz
AC input voltage 100 - 240 V
Power consumption (off) 0.3 W
Power consumption (standby) 0.5 W
Power consumption (typical) 215 W
Computer system
Linux operating systems supported Yes
Windows operating systems supported Yes
Operating system installed Android 11
Internal storage capacity 4 GB
On-board graphics card model ARM Mali-G52
Internal memory 32 GB
Processor cores 4
Built-in processor Yes
Computer system Yes
Weight & dimensions
Display weight 58.6 kg
Display height 1160 mm
Display depth 100 mm
Display width 1957 mm
Packaging data
Package weight 75.9 kg
Package height 1283 mm
Package depth 225 mm
Package width 2110 mm
Packaging content
Cables included AC, HDMI, USB
Power adapter included Yes

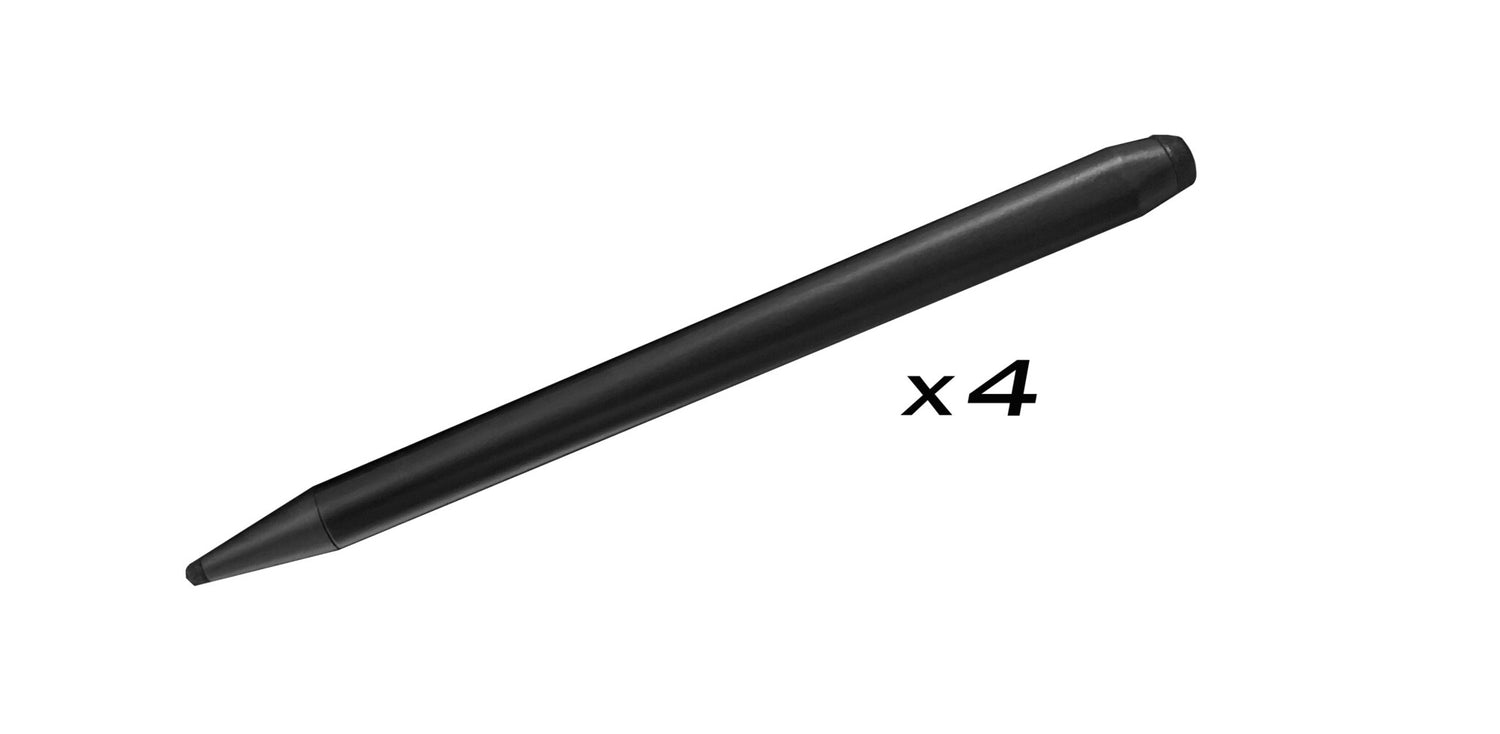

Stylus pen Yes
Number of stylus pens 4
Batteries included Yes
Remote control included Yes
Operational conditions
Storage temperature (T-T) -20 - 60 °C
Operating temperature (T-T) 0 - 40 °C
Features
Base material Metal
Base colour Black
Technical details
Playback media 1
OPS slot 1
Compliance certificates RoHS, WEEE
Other features
Plug and Play Yes
Power supply type Internal
Bluetooth Low Energy (BLE) Yes
Quick start guide Yes
Bluetooth Yes
Bluetooth version 5.0
Audio input 1
