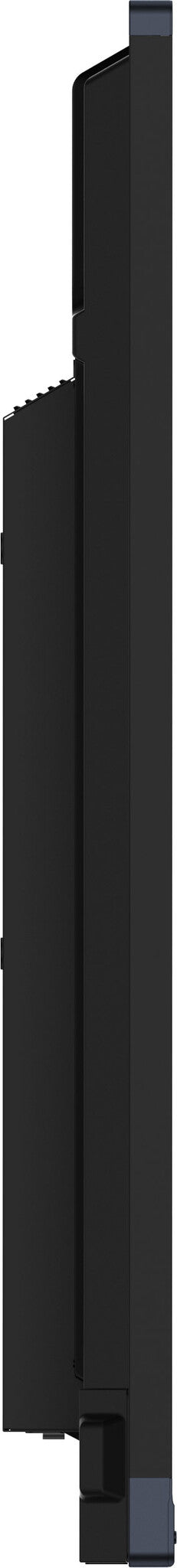

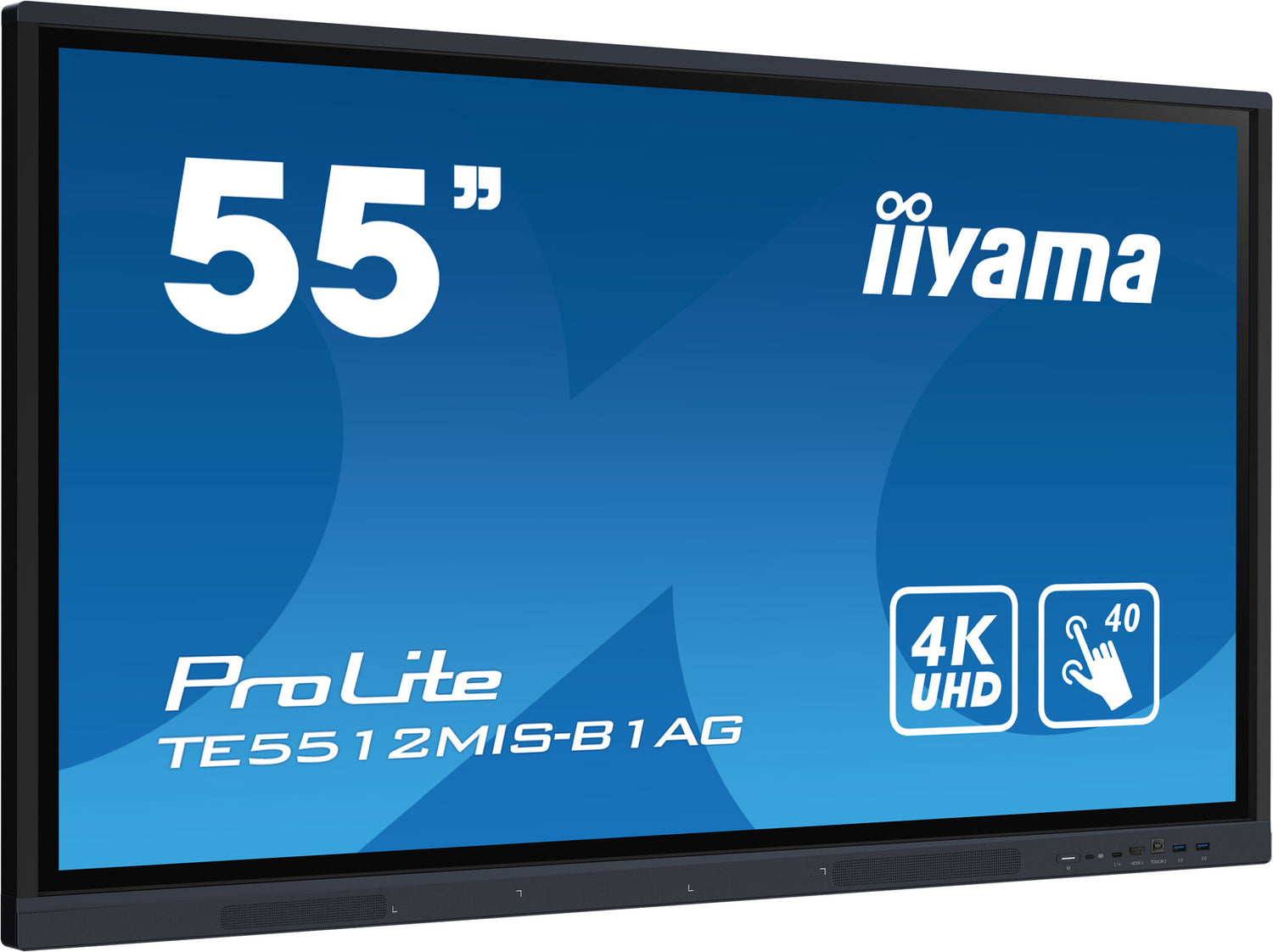

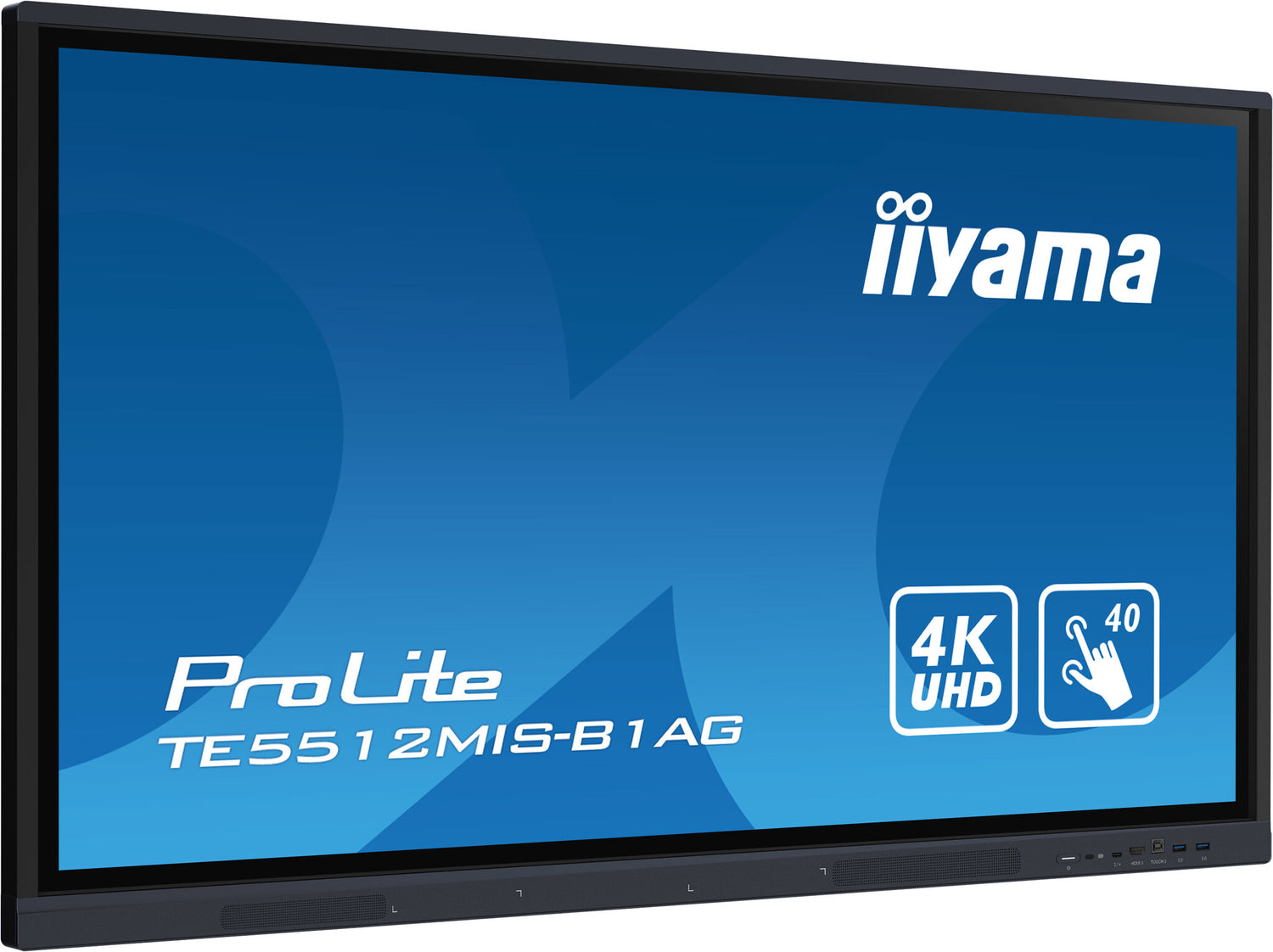

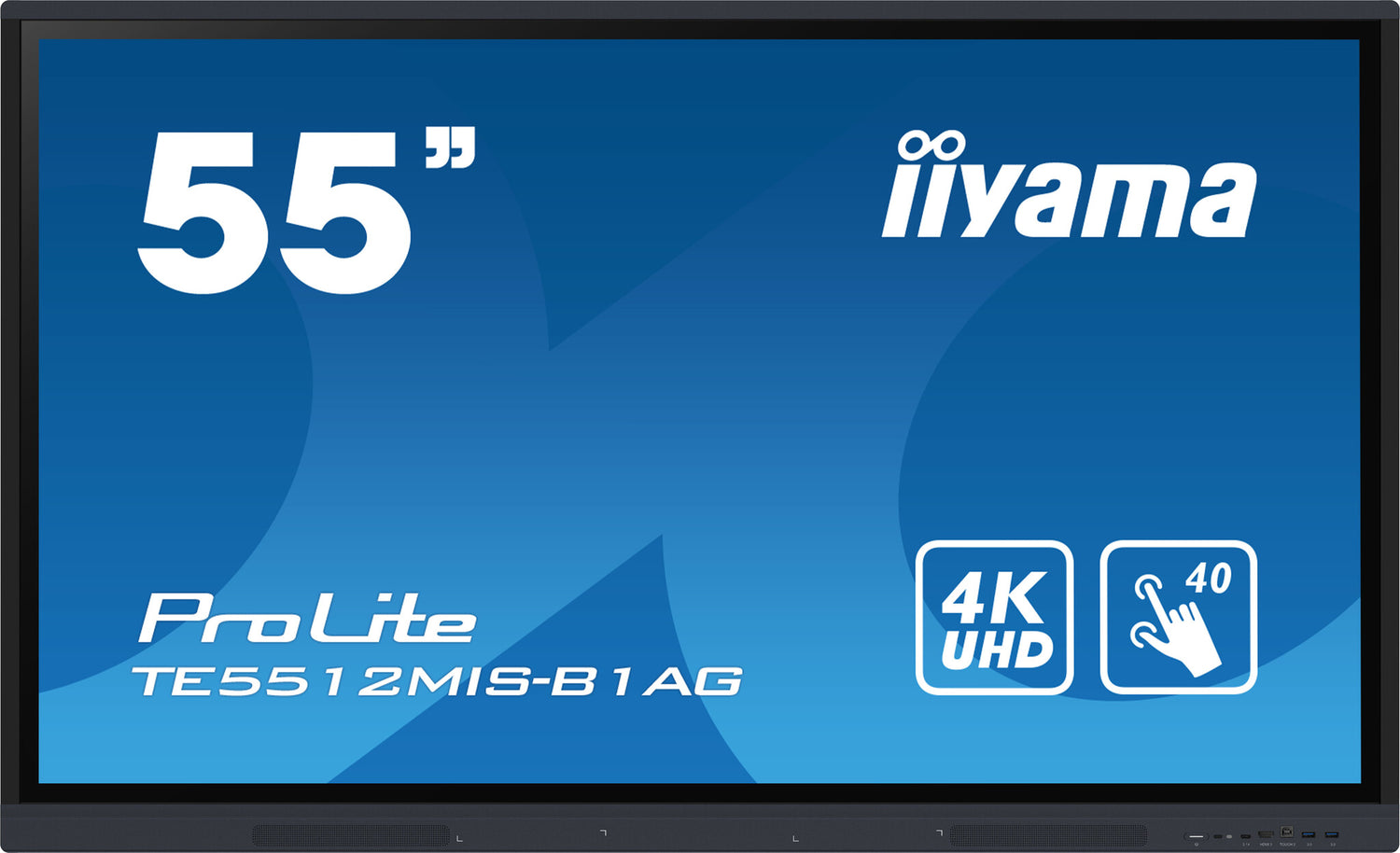

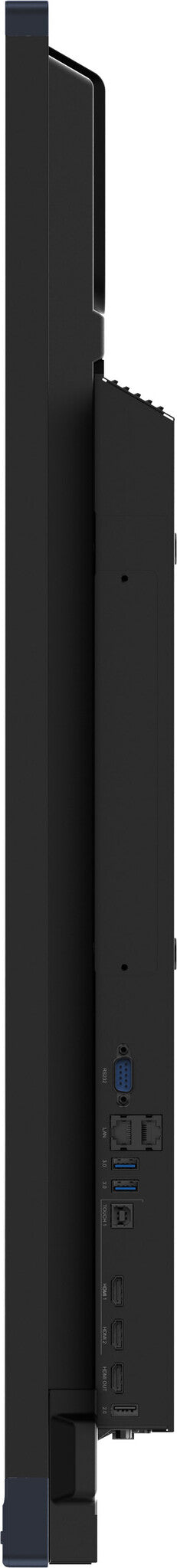

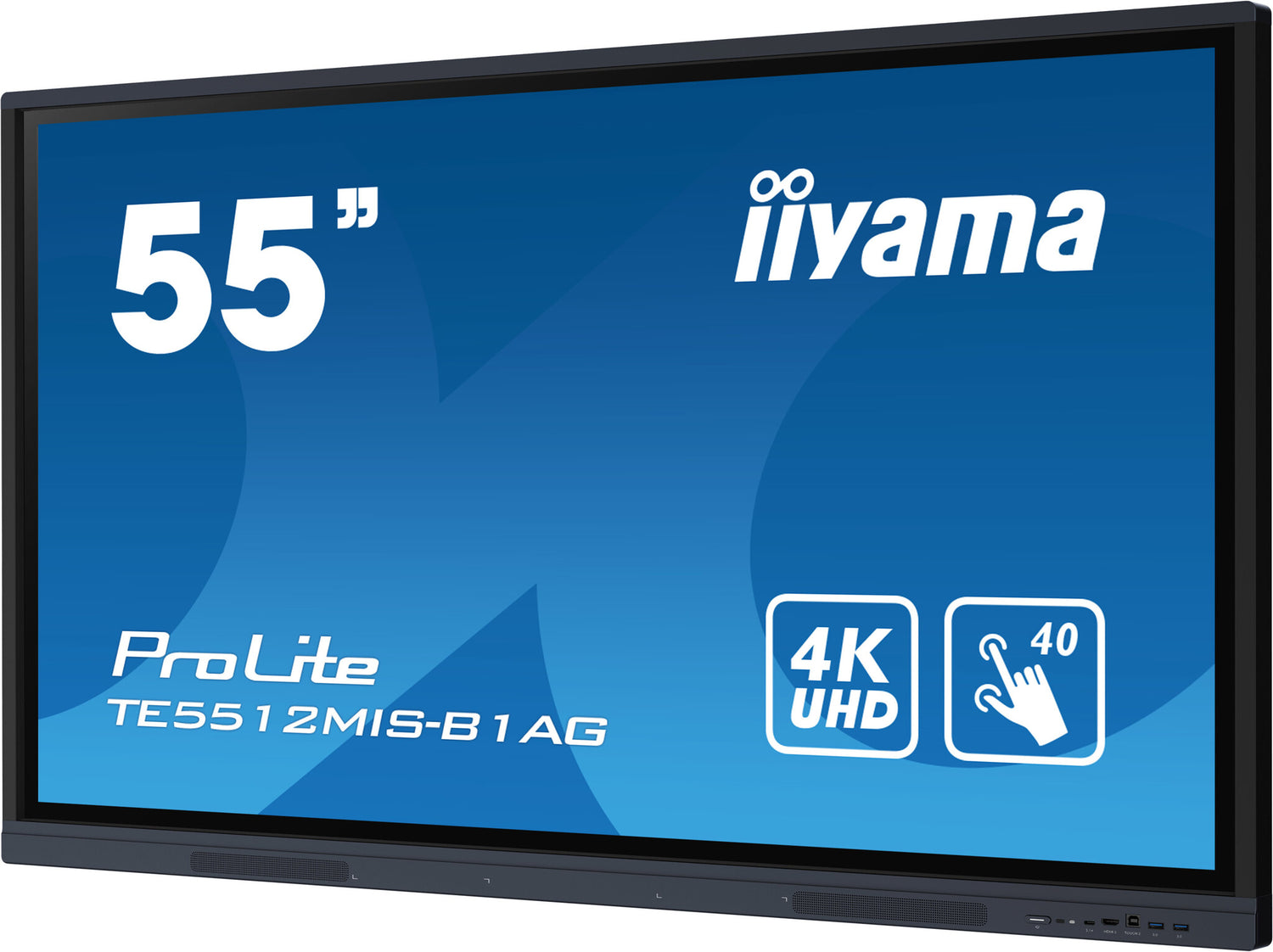

iiyama TE5512MIS-B1AG Signage Display Digital signage flat panel 139.7 cm (55") LED Wi-Fi 400 cd/m² 4K Ultra HD Black Touchscreen Built-in processor Android 11 16/7

iiyama  |  Varenummer: TE5512MIS-B1AG
Stregkode: 4948570121908

Vælg størrelse

Beskrivelse

55'' 3840 x 2160 IPS, Direct LED, 400 cd/m², 1200:1, PureTouch-IR, VGA, HDMI, USB, RS-232c, RJ45, IR

Collaboration for education and enterprise made simple. The TE5512MIS-B1AG from iiyama inspires all possibilities in all stages for education, start-up and large-scale businesses. With our hybrid interactive solution, you can smoothly annotate in 4K and control any content on the display from any source.

This PureTouch-IR 40-point Touchscreen with iiWare 10 (Android 11 OS) features Note, Browser, Cloud Drive and the option for you to sideload relevant apps you require for your organisation. It comes with dual function Touch pens, and you can easily save your notes and on-screen content directly to a USB device, 32GB internal memory or a selected cloud drive. Including an additional USB-C connection, the display supports the latest in video, audio and Touch signal via a single port and even charge your device with 65W power delivery.

With a 4K UHD resolution (3840x2160) and 400cd/m2 brightness this 55” IPS LCD screen provides vibrant, detailed, and high-quality images from anywhere in the class or meeting room. The anti-glare coating drastically reduces ambient reflection in high-brightness environments without compromising the sharpness and clarity of the image.

You can be sure that no matter what your Interactive aspiration, iiyama has the simplified solution just for you. Boasting a new 4K Interface with User Profiles for simple login and access to your very own bespoke menu and Cloud Drives, the TE5512MIS-B1AG becomes a highly personalised device within a busy hybrid environment for multiple users.

Share, stream and edit content from any device directly on screen and transform your team meetings or lessons into an easy, fast and seamless interactive session with the included WiFi module (OWM002), iiyama Share and EShare app.

Specifikationer

Display
Display diagonal 139.7 cm (55")
Display technology LED
Panel type IPS
LED backlighting type Direct-LED
Display resolution 3840 x 2160 pixels
Display brightness 400 cd/m²
HD type 4K Ultra HD
Touchscreen Yes
Touchscreen technology Infrared
Number of simultaneous touchpoints 40
Native aspect ratio 16:9
Response time 8 ms
Contrast ratio (typical) 1200:1
Viewing angle, horizontal 178°
Viewing angle, vertical 178°
Display number of colours 1.073 billion colours
Pixel pitch 0.315 x 0.315 mm
Active display area (W x H) 1210 x 680 mm
Display diagonal (metric) 138.8 cm
Number of displays 1
Panel life 5000 h
Surface hardness 7H
Horizontal scan range 30 - 135 kHz

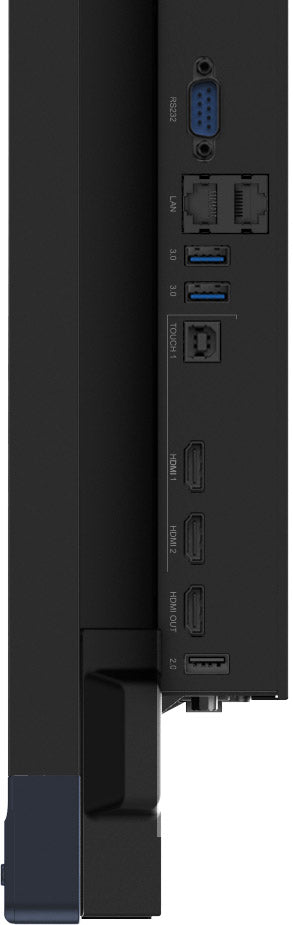

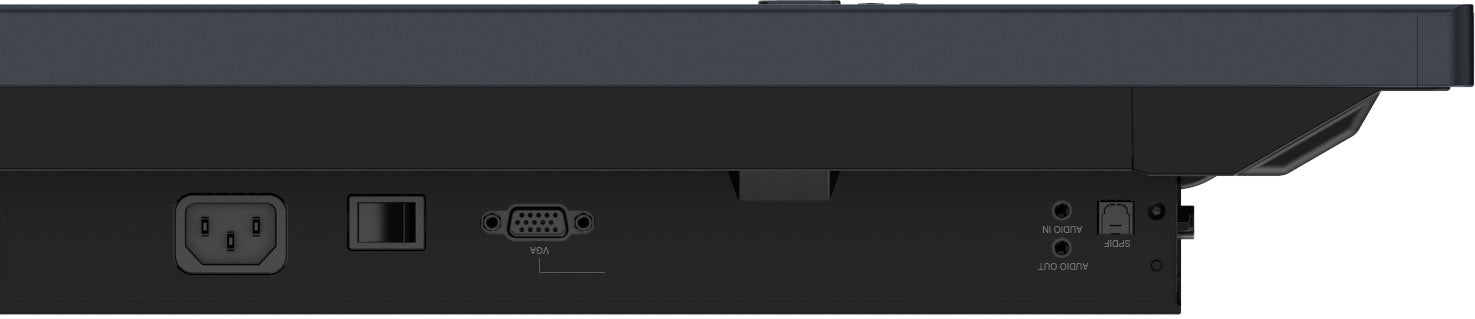

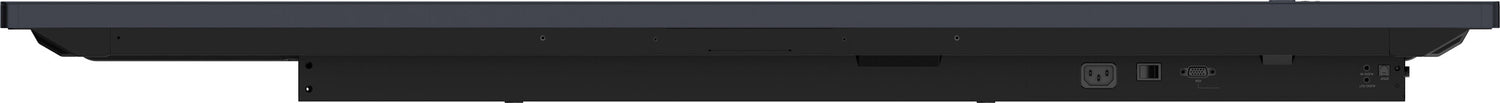

Ports & interfaces
HDMI ports quantity 4
HDMI version 2.0
HDMI input ports quantity 3
HDMI output ports quantity 1
VGA (D-Sub) input ports 1
USB port Yes
USB ports quantity 6
USB version 2.0/3.2 Gen 1 (3.1 Gen 1)
USB connector type USB Type-C
Ethernet LAN Yes
Ethernet LAN (RJ-45) ports 2
Ethernet LAN data rates 1000 Mbit/s
Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Wi-Fi Yes
RS-232C Yes
Remote (IR) input 1
Audio
Built-in speaker(s) Yes
Number of built-in speakers 2
RMS rated power 32 W
Design
Product design Digital signage flat panel
Product colour Black
Placement supported Indoor
Orientation Horizontal
Screen shape Flat

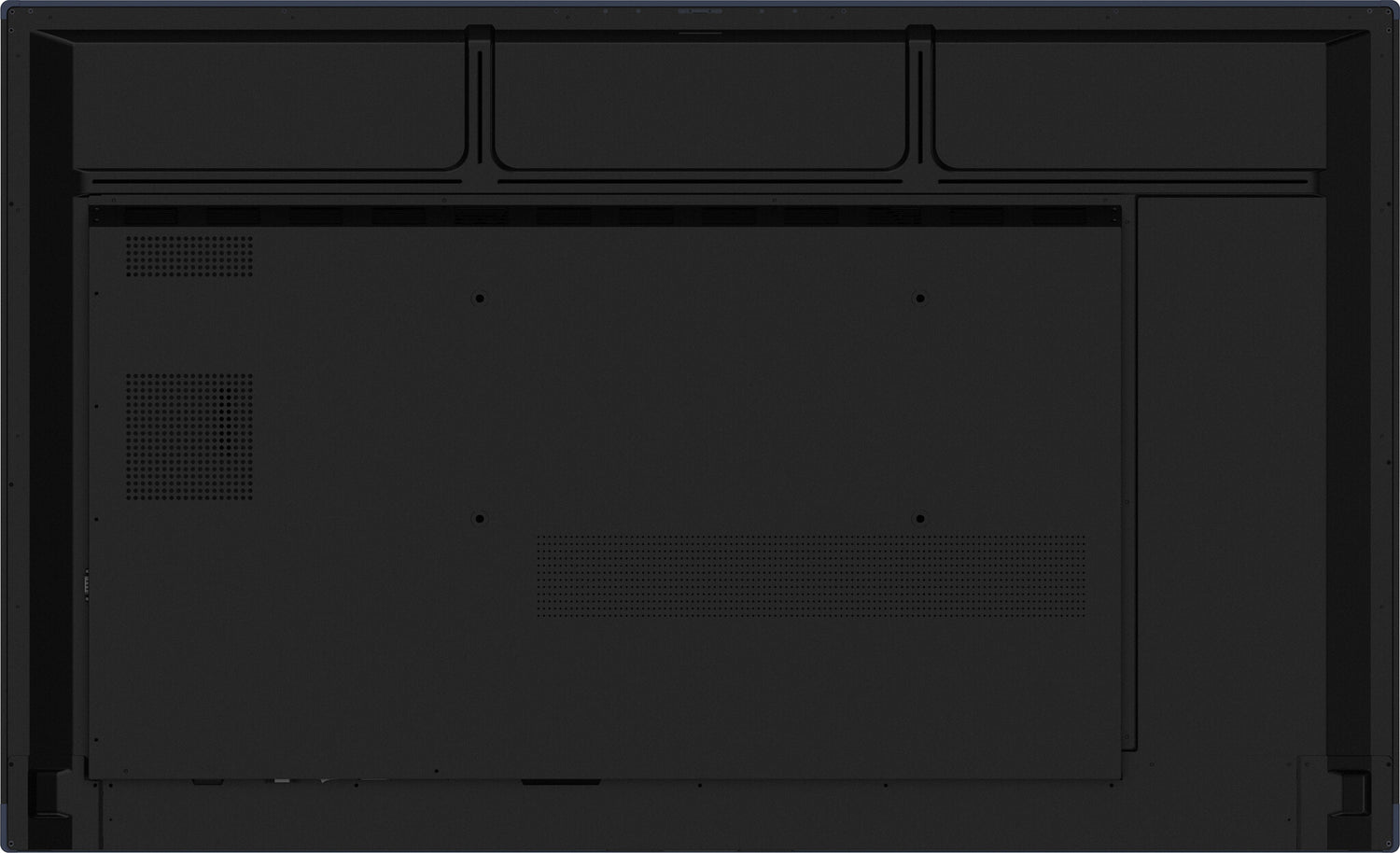

VESA mounting Yes
Panel mounting interface 400 x 200 mm
Bezel width (bottom) 4.6 cm
Bezel width (side) 1.9 cm
Bezel width (top) 1.9 cm
Positioning accuracy 1.5 mm
Performance
Purpose Commercial
On Screen Display (OSD) languages Czech, German, English, Spanish, French, Italian, Polish, Russian
Number of OSD languages 9
On Screen Display (OSD) Yes
Operating hours (hours/days) 16/7
HDCP version 2.2
HDCP Yes
Mean time between failures (MTBF) 50000 h
Power
Power consumption (typical) 105 W
Power consumption (standby) 0.5 W
Power consumption (off) 0.5 W
AC input voltage 100 - 240 V
AC input frequency 50 - 60 Hz
Computer system
Computer system Yes
Built-in processor Yes
Processor cores 4
Internal memory 32 GB
On-board graphics card model ARM Mali-G52
Internal storage capacity 4 GB
Operating system installed Android 11
Windows operating systems supported Yes
Linux operating systems supported Yes
Weight & dimensions
Display width 1271 mm
Display depth 87 mm
Display height 774 mm
Display weight 26.1 kg
Packaging data
Package width 1401 mm
Package depth 220 mm
Package height 859 mm
Package weight 34.5 kg
Packaging content
Remote control included Yes
Batteries included Yes
Number of stylus pens 4
Stylus pen Yes
Power adapter included Yes
Cables included AC, HDMI, USB
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -20 - 60 °C
Features
Base colour Black
Base material Metal
Technical details
OPS slot 1
Compliance certificates RoHS, WEEE
Other features
Bluetooth Low Energy (BLE) Yes
Power supply type Internal
Bluetooth version 2.0
Audio input 1
Bluetooth Yes
Plug and Play Yes
